Aluminum silicate stone wol fiber, with performance of soft, flexible.etc
- Product Details
- {{item.text}}
Quick Details
-
Ultimate Strength (≥ MPa):
-
0.04
-
Density (kg/m³ ):
-
128
-
Length:
-
3600/7200/14640mm
-
Working Temperature:
-
1000-1350
-
Fiber Diameter:
-
3-5um
-
Shrinkage (1800 ℉, 3h):
-
3 (hours)
-
Thermal Conductivity:
-
0.055-0.180(W.k.m.)
-
Model Number:
-
High Pure
-
Brand Name:
-
Huali
-
Place of Origin:
-
Tianjin, China
-
Color:
-
Pure white
-
Cetificate:
-
ISO
-
Size:
-
As customers' requirements
-
Product name:
-
Ceramic Fiber Wool Products for Fireplace Thermal Insulation
-
Packing:
-
woven bag
-
length:
-
3000-7200mm
-
width:
-
610mm
-
thickness:
-
25-150mm
-
sample:
-
free
Quick Details
-
Thickness:
-
10-50mm
-
Width:
-
610/1220mm
-
Chemical Composition:
-
AL2O3+SIO2
-
Ultimate Strength (≥ MPa):
-
0.04
-
Density (kg/m³ ):
-
128
-
Length:
-
3600/7200/14640mm
-
Working Temperature:
-
1000-1350
-
Fiber Diameter:
-
3-5um
-
Shrinkage (1800 ℉, 3h):
-
3 (hours)
-
Thermal Conductivity:
-
0.055-0.180(W.k.m.)
-
Model Number:
-
High Pure
-
Brand Name:
-
Huali
-
Place of Origin:
-
Tianjin, China
-
Color:
-
Pure white
-
Cetificate:
-
ISO
-
Size:
-
As customers' requirements
-
Product name:
-
Ceramic Fiber Wool Products for Fireplace Thermal Insulation
-
Packing:
-
woven bag
-
length:
-
3000-7200mm
-
width:
-
610mm
-
thickness:
-
25-150mm
-
sample:
-
free

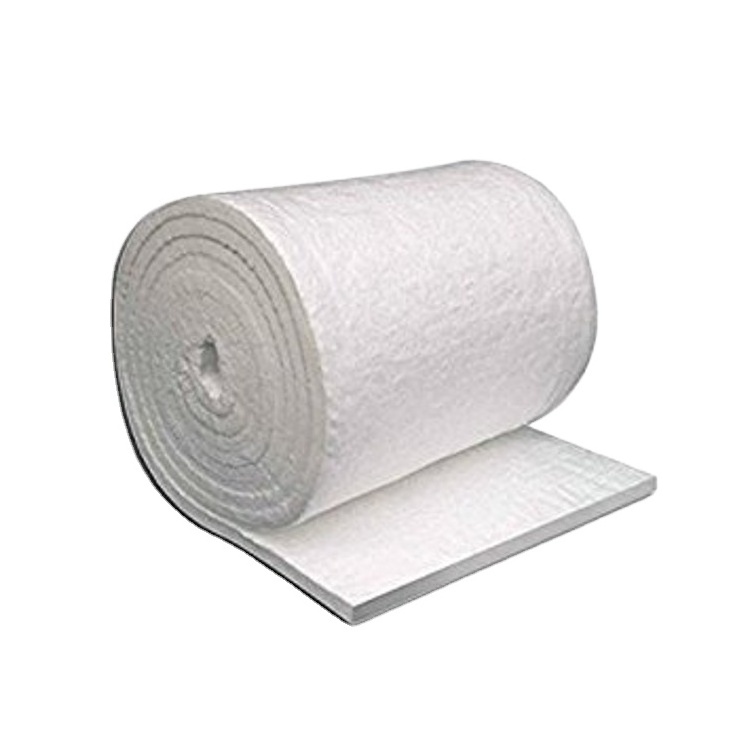

CERAMIC WOOL BLANKET
Fireproof Material Ceramic Fiber Wool Products for Fireplace Thermal Insulation
Ceramic wool is made from aluminum silicate stone, burn above 2000℃ electric stove melt, spray to blow fiber. It is widely uesed for pipe and equipments of pyroelectricity, petroleum-chemical, boats, building, machines, boilers,etc. with the performance of fire prevention, heat insulation, sound absorption,and other so many technical features.
|
Item
|
|
Standard
|
High Pure
|
High Aluminum
|
Zirconium
|
|
|
Classification Temp(℃）
|
|
1260
|
1260
|
1360
|
1430
|
|
|
Service Temp(℃）
|
|
≤1050
|
≤1100
|
≤1200
|
≤1350
|
|
|
Color
|
|
White
|
White
|
White
|
White
|
|
|
Density(kg/m3)
|
|
96-128
|
96-128
|
96-128
|
96-128
|
|
|
Permanent linear shrinkage (%)
|
|
1000°C×24h≤3
|
1000°C×24h≤3
|
1200°C×24h≤3
|
1350°C×24h≤3
|
|
|
Thermal conductivity (average temperature(70±52) (w/m.k)
( 128kg/m3)
|
|
0.09(400°C)
0.16(800°C)
|
0.09(400°C)
0.16(800°C)
|
0.12(600°C)
0.20(1000°C)
|
0.16(800°C)
0.20(1000°C)
|
|
|
Tensile strength (MPa) ( 128kg/m3)
|
|
0.08-0.12
|
0.08-0.12
|
0.08-0.12
|
0.08-0.12
|
|
|
|
AL2O3
|
45-46
|
47-49
|
52-55
|
39-40
|
|
|
|
AL2O3+SiO2
|
97
|
99
|
99
|
-
|
|
|
|
AL2O3+SiO2+ZrO2
|
-
|
-
|
-
|
99
|
|
|
|
ZrO2
|
-
|
-
|
-
|
15-17
|
|
|
|
Fe2O3
|
≤1.0
|
≤0.2
|
≤0.2
|
≤0.2
|
|
|
|
Na2O+K2O
|
≤0.5
|
≤0.2
|
≤0.2
|
≤0.2
|
|
|
Ceramic Wool Blanket
|
|
|
|
Density
|
96-128kg/m3
|
|
|
Length
|
3~7m
|
|
|
Width
|
610mm
|
|
|
Thickness
|
20-80mm
|
|
|
Remark
|
Special size can be customized
|
|
Raw Material
Anti-corrosion
Ceramic wool fiber blanket is anti-corrosion, firm, stable, durable.etc.
High temperature
Ceramic wool blanket can be used above 1000℃ for high tamperature, moreover, stability is perfect
Fire prevention
Ceramic fiber blanket is ignornic aluminum fiber, thus non-cumbustible, with good fire resistant performance.
Fireproof Material Ceramic Fiber Wool Products for Fireplace Thermal Insulation
Located in Tianjin, China, Huali Insulation was established in 1995. Currently, the company owns asset of CNY 200 million and a total crew of more than 300 employees, including more than 80 management staff, a professional insulation construction team and another 40 technicians.
Huali has successfully been promoted to "the first tier" of Cryogenic Insulation engineering company in China with the performance in Ichthys project, Wheastone Project, Nyhamna project and also Yamal project
.
Fireproof Material Ceramic Fiber Wool Products for Fireplace Thermal Insulation
Q: Are you a manufacturer or a trading company ?
A: We are a manufacturer founded in 1995, located in Tianjin China.
Q: Can you accept neutral packing & OEM ?
A: Normally, our packing is carton with Huali logo , but we can accept the neutral packing andn OEM. However, custom should pay the packing charge.
Q: Can you provide the sample for free ?
A: We provide some samples for client, but the express charge should be bore by customer
.
