Quick Details
-
Brand Name:
-
LEYU
-
Model Number:
-
SCP-50
-
Output Frequency:
-
47-63Hz
-
Output Current:
-
4.16A
-
Product Name:
-
UPS Backup Power Supply
-
Application:
-
CCTV Camera
-
Certification:
-
CE ROSH
-
Warranty:
-
2 Years
-
Color:
-
Silver
-
MOQ:
-
1 Piece
-
Working Temp:
-
-20°C~+ 60°C
-
Dimension:
-
129*98*38mm
-
Output Power:
-
50W
Quick Details
-
Input Voltage:
-
110/220VAC
-
Output Voltage:
-
13.8V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LEYU
-
Model Number:
-
SCP-50
-
Output Frequency:
-
47-63Hz
-
Output Current:
-
4.16A
-
Product Name:
-
UPS Backup Power Supply
-
Application:
-
CCTV Camera
-
Certification:
-
CE ROSH
-
Warranty:
-
2 Years
-
Color:
-
Silver
-
MOQ:
-
1 Piece
-
Working Temp:
-
-20°C~+ 60°C
-
Dimension:
-
129*98*38mm
-
Output Power:
-
50W
Product Description
Specification
|
SPECIFICATION
|
|
|
|
|||
|
Model
|
SCP-50-12
|
|
SCP-50-24
|
|||
|
DC Voltage
|
13.8V
|
|
27.6V
|
|||
|
Rated Current
|
3.6A
|
|
1.8A
|
|||
|
Current Range
|
0-3.6A
|
|
0-1.8A
|
|||
|
Rated Power
|
49.7W
|
|
49.7W
|
|||
|
Ripple & Noise
|
120mVp-p
|
|
200mVp-p
|
|||
|
Voltage Adj. Range
|
+15,-5%
|
|
+15,-5%
|
|||
|
Voltage Tolerance
|
±2%
|
|
±1%
|
|||
|
Inlet Stability
|
±1%
|
|
±1%
|
|||
|
Load Stability
|
±2%
|
|
±1%
|
|||
|
Setup, Rise
|
500ms,30ms/230VAC 1200ms,30ms/115VAC at full load
|
|
|
|||
|
Hold Up Time
|
50ms/230VAC 16ms/115VAC at full load
|
|
|
|||
|
Voltage Range
|
85~264VAC 120-370VDC
|
|
|
|||
|
Frequency Range
|
47-63Hz
|
|
|
|||
|
AC Current
|
1.1A/115VAC 0.65A/230VAC
|
|
|
|||
|
Efficiency
|
81%
|
|
85%
|
|||
|
Inrush Current
|
Cold-start 45A
|
|
|
|||
|
Leakage Current
|
<2mA/240VAC
|
|
|
|||
|
Over Load
|
4.3A~5.8A rated output power
|
2.2A~2.9A rated output power
|
|
|||
|
|
Protection type: hiccup mode,recovers automatically after fault condition is removed
|
|
|
|||
|
Over Voltage
|
16.6~19.3V
|
33.1~38.5V
|
|
|||
|
|
Protection type: shut down o/p voltage, re-power on to recover
|
|
|
|||
|
Working Temp., Humidity
|
-20℃~+60℃(Refer to output derating curve),20%~90%RH
|
|
|
|||
|
Storage Temp., Humidity
|
-40℃~+85℃, 10%~95%RH
|
|
|
|||
|
Temp. Coefficient
|
±0.03%/℃(0~45℃)
|
|
|
|||
|
Vibration
|
10~500Hz,2G 10min,/1cycle,Period for 60min,Each along X.Y.Z axes
|
|
|
|||
|
Safety Standard
|
UL60950-1,CCC,CE
|
|
|
|||
|
EMC Standard
|
EN55022,CLASS B
|
|
|
|||
|
Warranty
|
2 years
|
|
|
|||
|
Dimension
|
129*98*38mm(L*W*H)
|
|
|
|||
|
Net Weight
|
375.7g
|
|
|
|||
|
Packing
|
450g/pc 30pcs/carton
|
|
|
|||

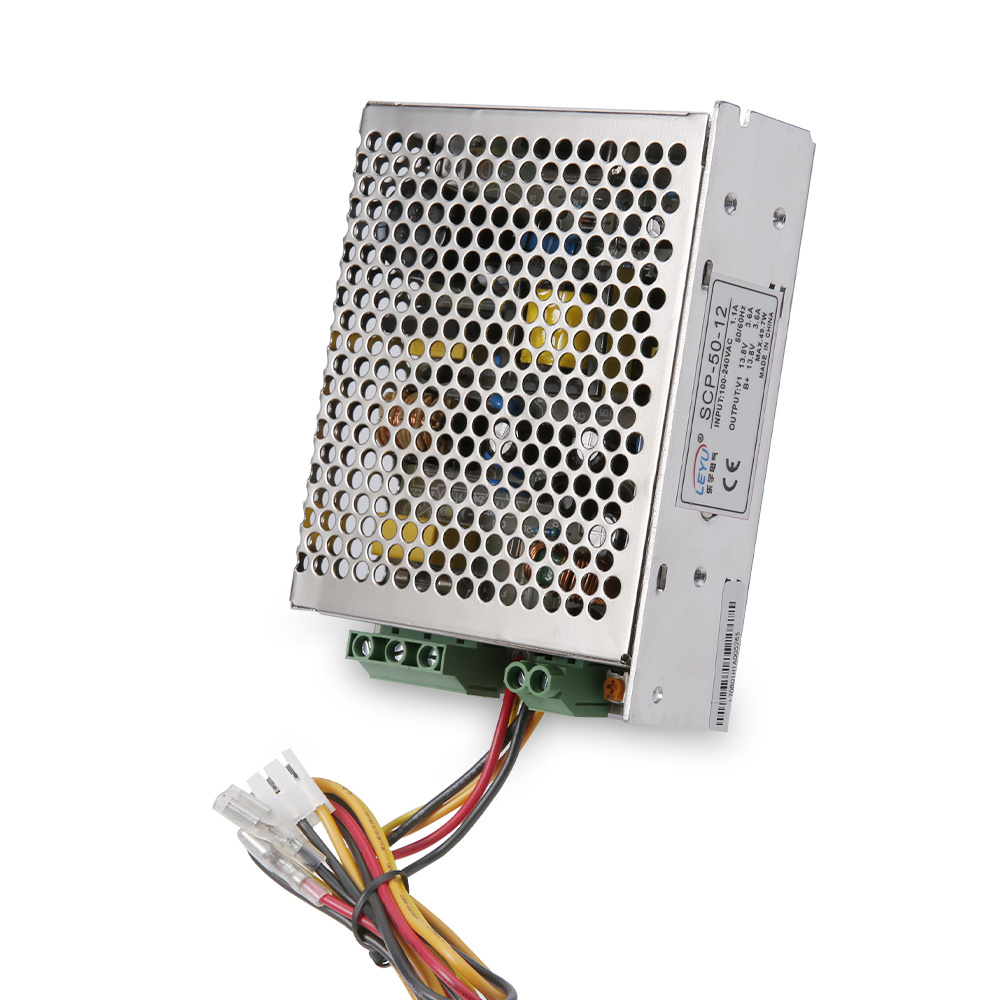

Details Images
