- Product Details
- {{item.text}}
Quick Details
-
Color:
-
Full color
-
Panel Size:
-
1000*500mm, 1000*500mm
-
Place of Origin:
-
China(Mainaland)
-
Model Number:
-
PH3.91
-
Brightness:
-
1000 nits, 1000 nits
-
pixel density:
-
32768 pixels/sqm, 32768 pixels/sqm
-
Lifespan (hours):
-
100000 hours, 100000 hours
-
IP Rating:
-
IP31, IP31
-
HS Code:
-
8531200000
-
Resolution:
-
256*64, 256*64
-
View Angle（H/V）:
-
120/160, 120/160
-
Product name:
-

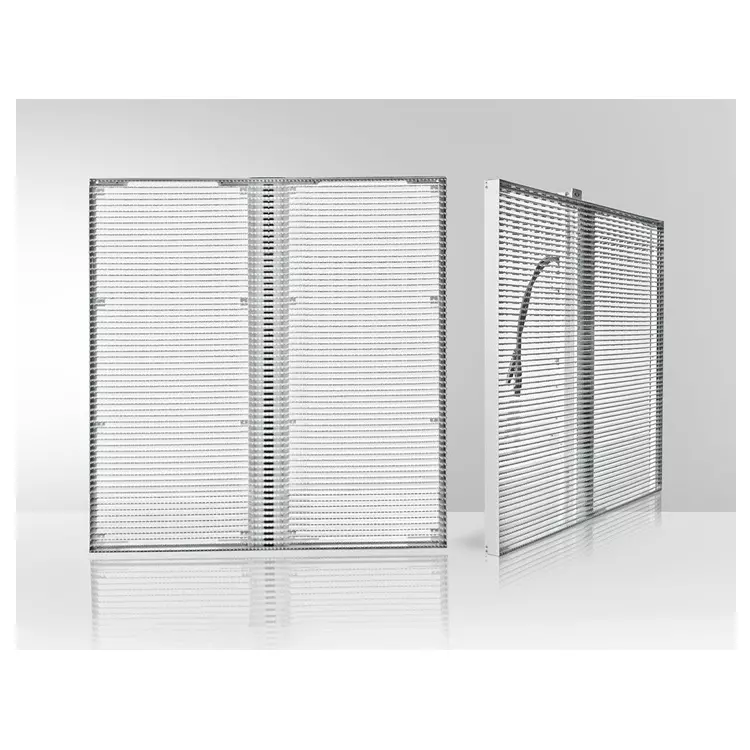

P3.91 Led Displays
-
Refresh rate:
-
1920Hz/3840Hz
-
LED type:
-
SMD2121
-
Size:
-
1000*500mm
-
Scan mode:
-
1/7 scan
-
Operating system:
-
Nova/LINSN/HD/Colorlight
-
Warranty:
-
2 years
-
Certificate:
-
CE, RoHS, CCC, ETL
Quick Details
-
Application:
-
Outdoor
-
Type:
-
LED
-
Brand Name:
-
Chipstar
-
Color:
-
Full color
-
Panel Size:
-
1000*500mm, 1000*500mm
-
Place of Origin:
-
China(Mainaland)
-
Model Number:
-
PH3.91
-
Brightness:
-
1000 nits, 1000 nits
-
pixel density:
-
32768 pixels/sqm, 32768 pixels/sqm
-
Lifespan (hours):
-
100000 hours, 100000 hours
-
IP Rating:
-
IP31, IP31
-
HS Code:
-
8531200000
-
Resolution:
-
256*64, 256*64
-
View Angle（H/V）:
-
120/160, 120/160
-
Product name:
-
P3.91 Led Displays
-
Refresh rate:
-
1920Hz/3840Hz
-
LED type:
-
SMD2121
-
Size:
-
1000*500mm
-
Scan mode:
-
1/7 scan
-
Operating system:
-
Nova/LINSN/HD/Colorlight
-
Warranty:
-
2 years
-
Certificate:
-
CE, RoHS, CCC, ETL
Product Description
Application Scenarios
Widely Application for shopping mall, large building glass wall, stage background led display, casino, carnival,concert,exhibition,chain shops and clothes shop, even in Bank window, etc. It is installed inside but with very high brightness for outside.
Specification
|
Model
|
P2.6-5.2
|
P3.4-7.8
|
P3.9-7.8
|
|
Pixel Pitch
|
2.6x5.2
|
3.4x7.8
|
3.9x7.8
|
|
Lamps
|
1921
|
1921
|
1921
|
|
Chip composition
|
1R1G1B
|
1R1G1B
|
1R1G1B
|
|
Solder craft
|
Side mounted, positive-glowing
|
Side mounted, positive-glowing
|
Side mounted, positive-glowing
|
|
Piexls/m²
|
73728dot/m²
|
41472dot/m²
|
32768dot/m²
|
|
Module resolution
|
384x96dot
|
288x64dot
|
256x128dot
|
|
Driving mode
|
Constant current driving
|
Constant current driving
|
Constant current driving
|
|
Cabinet size(W*H*D)
|
1000*500mm
|
1000*500mm
|
1000*500mm
|
|
Material of cabinet
|
Cast aluminum
|
Cast aluminum
|
Cast aluminum
|
|
Weight/m²
|
<16KG/m²
|
<16KG/m²
|
<16KG/m²
|
|
Brightness/m²
|
1000-6000CD/m²
|
1000-6000CD/m²
|
1000-6000CD/m²
|
|
Max consumption/m²
|
≤800W/m²
|
≤800W/m²
|
≤800W/m²
|
|
Control system
|
Novastar
|
Novastar
|
Novastar
|
|
Refresh rate
|
≥3840 Hz
|
≥3840 Hz
|
≥3840 Hz
|
|
Gray scale
|
≥14bit
|
≥14bit
|
≥14bit
|
|
Transparency rate
|
≥75%
|
≥75%
|
≥75%
|
|
Working voltage
|
DC5V
|
DC5V
|
DC5V
|
|
Power supply cooling method
|
Self-cooling+aluminum alloy
|
Self-cooling+aluminum alloy
|
Self-cooling+aluminum alloy
|
|
Input voltage rage
|
AC 100V-230V
|
AC 100V-230V
|
AC 100V-230V
|
|
Protection level
|
IP30
|
IP30
|
IP30
|
|
Installation method
|
Hanging/stacking/fixed/customized
|
Hanging/stacking/fixed/customized
|
Hanging/stacking/fixed/customized
|
|
Temperature range
|
-35°~65°
|
-35°~65°
|
-35°~65°
|
|
Humidity range
|
10%-90% No condensation
|
10%-90% No condensation
|
10%-90% No condensation
|
Project Cases
Packing & Delivery
According to the different packing patternsof different, we offer carton box, wooden case, flight case packing Shipping Method:
By Express (DHL/FEDEX/UPS etc) door to door
By ocean (cheap method) to sea port
By air to airport Pls inform airport name and sea port name
if you want we check the shipping cost for you!
By Express (DHL/FEDEX/UPS etc) door to door
By ocean (cheap method) to sea port
By air to airport Pls inform airport name and sea port name
if you want we check the shipping cost for you!
