Quick Details
-
Grade:
-
Steel
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
1*7
-
Brand Name:
-
GM
-
Processing Service:
-
Twisting
-
Wire Gauge:
-
1-50MM
-
Diameter:
-
4/9 to 2 inch
-
Surface:
-
galvanized
-
Usage:
-
Lifting
-
Model 1:
-
6-19S-IWRC
-
Model 2:
-
6-26WS-IWRC
-
Package:
-
Wheel Reel
-
Characteristic 1:
-
Abrasion resistance
-
Characteristic 2:
-
Crush resistance
-
Characteristic 3:
-
Fatigue resistance
Quick Details
-
Steel Grade:
-
hot rolling steel rod
-
Type:
-
galvanized
-
Tolerance:
-
±0.01%
-
Grade:
-
Steel
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
1*7
-
Brand Name:
-
GM
-
Processing Service:
-
Twisting
-
Wire Gauge:
-
1-50MM
-
Diameter:
-
4/9 to 2 inch
-
Surface:
-
galvanized
-
Usage:
-
Lifting
-
Model 1:
-
6-19S-IWRC
-
Model 2:
-
6-26WS-IWRC
-
Package:
-
Wheel Reel
-
Characteristic 1:
-
Abrasion resistance
-
Characteristic 2:
-
Crush resistance
-
Characteristic 3:
-
Fatigue resistance

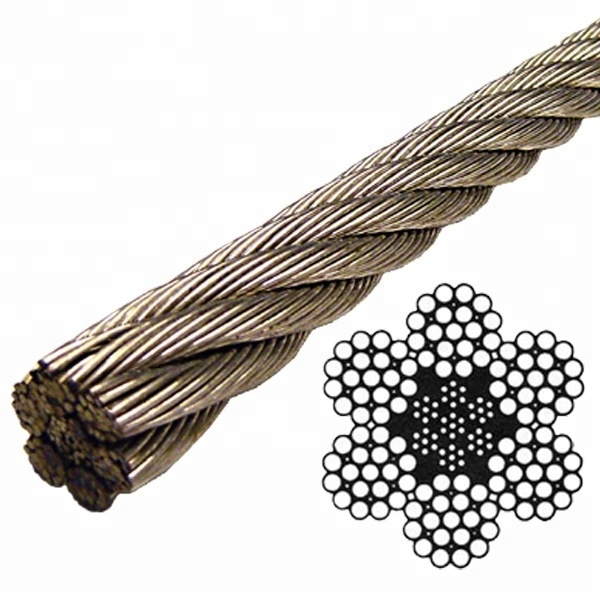

Diameter air craft cable 18-8 Stainless Steel wire rope 1 x 19
API 9A steel wire rope for rotary drilling operations
The various lines for rotary drilling rigs require a complex balance of wire rope
characteristics: abrasion resistance, crush resistance, fatigue resistance,
strength, bendability and stability.
Each rig is different, of course, but the chart below provides general guidelines for selecting the right rope. For more specific recommendations, consult Goldenman Petroleum Equipment Co.,Limited.
API 9A wire steel rope
spec as below:
|
Diameter(in) |
Weight(kg/m) |
Min Breaking Force(kN) |
||
|
1770 |
1960 |
2160 |
||
|
4/9 |
0.494 |
77.8 |
86.2 |
95 |
|
1/2 |
0.645 |
102 |
113 |
124 |
|
4/7 |
0.817 |
129 |
142 |
157 |
|
5/8 |
1.008 |
159 |
176 |
194 |
|
3/4 |
1.452 |
229 |
253 |
279 |
|
7/8 |
1.976 |
311 |
345 |
380 |
|
1 |
2.581 |
407 |
450 |
496 |
|
1-1/8 |
3.266 |
515 |
570 |
628 |
|
1-1/4 |
4.032 |
635 |
703 |
775 |
|
1-3/8 |
4.879 |
769 |
851 |
938 |
|
1-1/2 |
5.806 |
915 |
1010 |
1120 |
|
1-5/8 |
6.815 |
1070 |
1190 |
1310 |
|
1-3/4 |
7.903 |
1250 |
1380 |
1520 |
|
1-7/8 |
9.073 |
1430 |
1580 |
1740 |
|
2 |
10.323 |
1630 |
1800 |
1980 |
1.High quality products.
2.Fast delivery.
3.OEM services.
4.Perfect after-sale services.
More detail pls contact me as follows
