Quick Details
-
Material:
-
Aluminum case
-
Function:
-
24V 20A
-
Brand Name:
-
SKYFAVOR
-
Model Number:
-
600A
-
Input voltage and current:
-
110V or 230Vac
-
output voltage and current:
-
24V 20A
-
Maximum Output Power:
-
600w
-
Place of Origin:
-
Guangdong, China
-
Output:
-
24V 20A
-
Input:
-
AC 100V or 240V 50/60Hz
-
Size:
-
26.2*16.12*8.85.cm
-
Weight:
-
2.8kg
-
Certification:
-
RoHS
Quick Details
-
Type:
-
Electric
-
Port:
-
DC
-
Use:
-
24V 20A, FOR lead acid battery pack,lithium battery pack,lifepo4 battery pack
-
Material:
-
Aluminum case
-
Function:
-
24V 20A
-
Brand Name:
-
SKYFAVOR
-
Model Number:
-
600A
-
Input voltage and current:
-
110V or 230Vac
-
output voltage and current:
-
24V 20A
-
Maximum Output Power:
-
600w
-
Place of Origin:
-
Guangdong, China
-
Output:
-
24V 20A
-
Input:
-
AC 100V or 240V 50/60Hz
-
Size:
-
26.2*16.12*8.85.cm
-
Weight:
-
2.8kg
-
Certification:
-
RoHS
(battery charger) Smart Universal 24V batteries charger 24V 20A automatic Waterproof Maintenance free deep cycle lifepo4 lithium battery charger
| Charger Model: | 600A | Power: | 600W |
| Housing: | Aluminium Alloy | Size: | 262*88.5*161.8mm |
| Communication: | CAN, RS485 | Waterproof: | IP65 |
| Efficiency: | >=92% | Operating Temperature: | -20 to 40℃ |
| Storage Temperature: | -40 to +70℃ | Noise: | <=40dB |
| Cooling: | Temperature and load current-controlled fan | ||
| Protection: | Over-temperature, over-voltage, over-current, short-circuit, | ||
| and reverse connection protection. | |||
| Battery type: | Suitable for lead-acid batteries (water-added, GEL, and AGM) or lithium batteries (lithium-iron, lithium-manganese, lithium ternary) charging. | ||
| Features: | 1.Automatic multi-stage charging curve for long battery life 2.Intelligent fully automatic charging: obtains the battery status | ||
| and switches the charging mode(charge wait/pre-charge/constant current/constant voltage/float charge/ recharge/ full charge) | |||
Electronic Characteristics
| ITEM | 1230A | 2420A | 3613A | 4810A | 6008A | 7206A | |
| Output | LFP charging voltage | 14.6V | 29.2V | 43.8V | 58.4V | 73.0V | 87.6V |
| NCM charging voltage | 16.8V | 29.4V | 42.0V | 54.6V | 67.2V | 84.0V | |
| L-A charging voltage | 14.7V | 29.4V | 44.1V | 58.8V | 73.5V | 88.2V | |
| Float voltage | 13.8V(only Lead) | 27.6V(only Lead) | 41.4V(only Lead) | 55.2V(only Lead) | 69V(only Lead) | 82.8V(only Lead) | |
| Constant charge current | 30A | 20A | 13A | 10A | 8A | 6A | |
| Rotating lamp current | Lead 7.5A/ Lithium 2.4A | Lead 5.0A/ Lithium 1.6A | Lead 3.25A/ Lithium 1.04A | Lead 2.5A/ Lithium 0.8A | Lead 2.0A/ Lithium 0.64A | Lead 1.5A/ Lithium 0.45A | |
| Ripple voltage | ≤2%VOUTMAX | ||||||
| Input | Voltage range | 90V~260VAC | |||||
| Frequency range | 47~63Hz | ||||||
| Power factor | PF>0.98/115VAC, PF>0.95/230VAC at full load | ||||||
| Input current(type) | 12A/115VAC 6.5A/230VAC | ||||||
| Vomit (type) | COLD START 50A at 230VAC | ||||||
| Leakage Current | <0.75ma | ||||||
Product Introduction
1.Multi-voltage compatible : manually select battery type and automatically adjust charging curve, solving the problem of different batteries requiring different chargers on the same voltage platform.
2.Compatible with AGM, gel, lead-acid, NCM, LFP, lithium-ion batteries.
3.Intelligent fully automatic charging: switch charging modes based on the battery's status.(Standby/precharge/constant current/constant voltage/float charge/recharge/full).
Automatic multi-stage charging curve for longer battery life.
4.Bluetooth application monitoring of charging status, supports custom charging time and parameter settings.
5.Dimensions: 262 mm (L) x 88.5 mm (W) x 161.8 mm (H).
6.CE, FCC, and DOE etc.
7.Supports multiple output plugs
8.Customizable charging profiles or charging modes.
Smart Universal 24V batteries charger 24V 20A automatic Waterproof battery charger

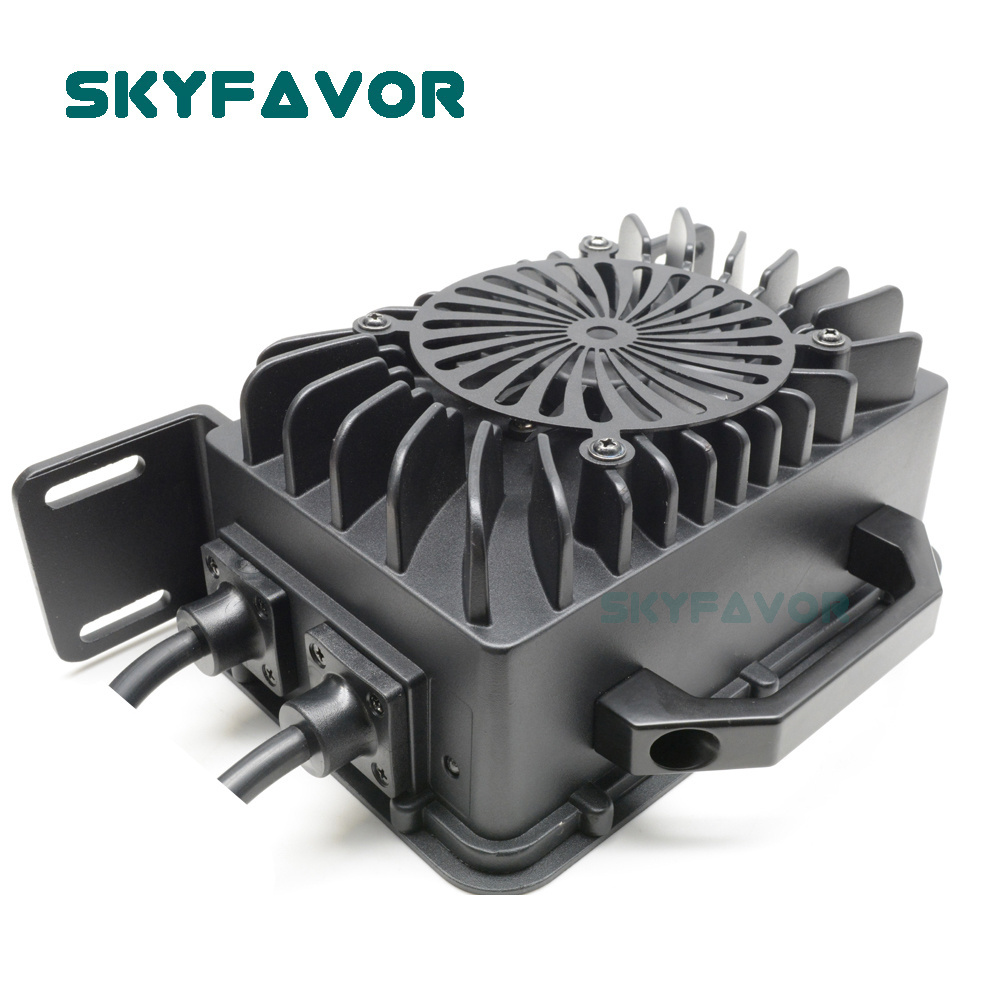

Product picture
We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer
|
Smart Automatic battery charger list |
|||||||||
|
Model |
Charging voltage¤t for reference |
N.W. (KG) |
Size(mm) |
||||||
|
84V |
|||||||||
|
7A |
4A |
2.5A |
1.8A |
1.5A |
_ |
_ |
0.7 |
135x90x50 |
|
|
10A |
5A |
3.5A |
2.5A |
2A |
1.5A |
_ |
0.9 |
155x90x50 |
|
|
15A |
7.5A |
5A |
3.8A |
3A |
2.5A |
_ |
1 |
170x90x50 |
|
|
20A |
12A |
8A |
6A |
4.5A |
4A |
_ |
1.2 |
170x90x63 |
|
|
25A |
19A |
12A |
9A |
7A |
6A |
_ |
2.5 |
207x120x70 |
|
|
40A |
25A |
18A |
15A |
12A |
10A |
_ |
3 |
220x135x70 |
|
|
40A |
25A |
18A |
15A |
12A |
10A |
8A |
3.5 |
260x175x90 |
|
|
50A |
30A |
20A |
19A |
15A |
12A |
10A |
4.5 |
260x175x90 |
|
|
60A |
45A |
30A |
24A |
19A |
16A |
14A |
5.5 |
300x175x90 |
|
|
90A |
60A |
40A |
30A |
25A |
20A |
18A |
6.5 |
330x175x115 |
|
|
- |
75A |
50A |
40A |
30A |
25A |
22A |
7 |
380x240x150 |
|
|
150A |
100A |
80A |
60A |
45A |
40A |
35A |
11 |
400x300x200 |
|
Smart Universal 24V batteries charger 24V 20A automatic Waterproof battery charger
