Quick Details
-
Mounting Type:
-
vertical
-
Description:
-
double float switch, float sensor
-
Model Number:
-
FS-8502
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunwoald
-
Theory:
-
reed switch
-
Output:
-
signal, Switching Transducer
-
Material:
-
Plastic PP
-
Contact Form:
-
Normally Open
-
Max Contact Rating:
-
10W/70W
-
Max Switch Voltage:
-
100V/300V
-
Max Switch Current:
-
0.5A/1.0A
-
Temperature Range:
-
-10 °C ~ +60°C
-
Min Shock:
-
30G
-
Min Vibration:
-
30G (10~50Hz)
-
Electrical Life:
-
1x 10^7 Times
Quick Details
-
Usage:
-
detect water level in a tank
-
Series:
-
float switch
-
Features:
-
reed switch double floats switch
-
Mounting Type:
-
vertical
-
Description:
-
double float switch, float sensor
-
Model Number:
-
FS-8502
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunwoald
-
Theory:
-
reed switch
-
Output:
-
signal, Switching Transducer
-
Material:
-
Plastic PP
-
Contact Form:
-
Normally Open
-
Max Contact Rating:
-
10W/70W
-
Max Switch Voltage:
-
100V/300V
-
Max Switch Current:
-
0.5A/1.0A
-
Temperature Range:
-
-10 °C ~ +60°C
-
Min Shock:
-
30G
-
Min Vibration:
-
30G (10~50Hz)
-
Electrical Life:
-
1x 10^7 Times

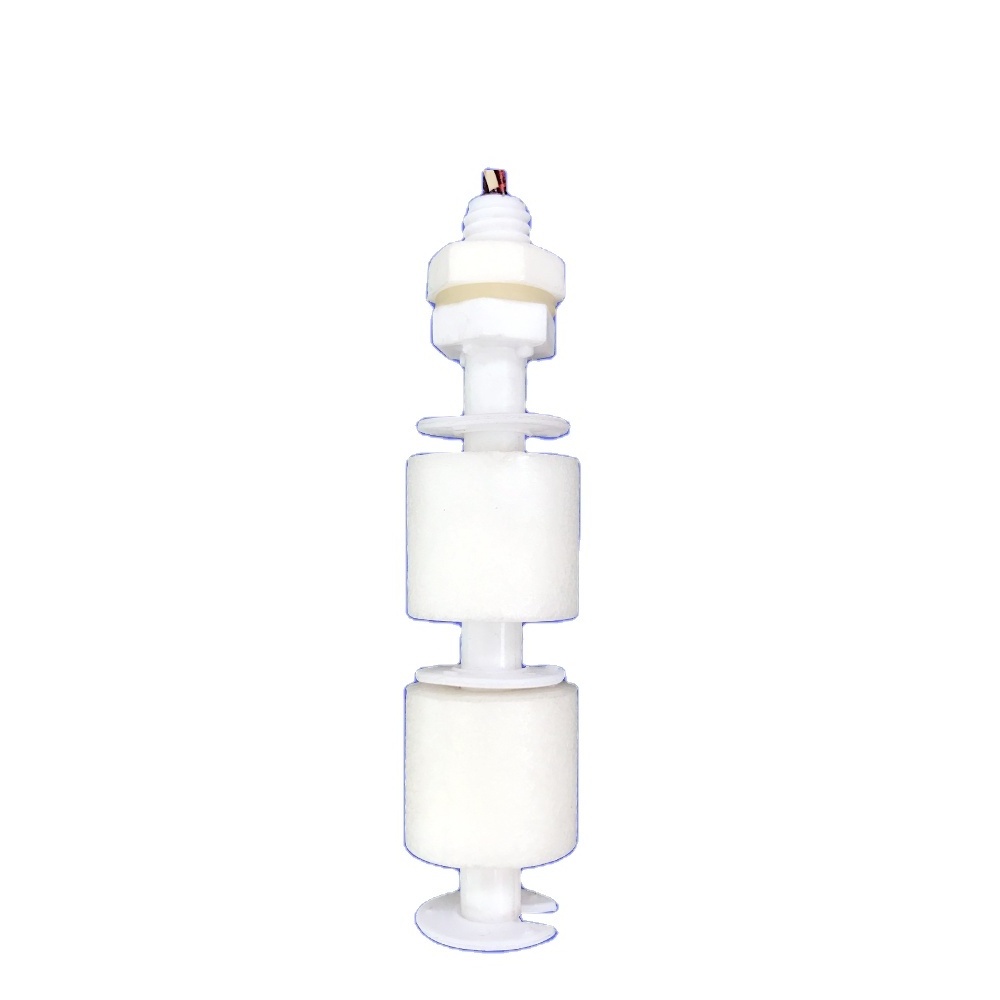

Double Points Water Float Switch
|
Product Description |
Working theory:
The float switch is a device used to sense the level of liquid in a tank. There is a magnet in the float ball and a magnetic reed switch in the rod. When the liquid level rises, it drives the float ball up close to the reed switch inside the rod. The magnet then force the two magnetic contacts inside the switch to connect, which allows current to pass. When the reed switch connects the circuit, it’s called “Closed.”
Product Application
This product can be used to monitor liquid level in watering machine, water heater, solar energy, air conditioner, vending machine, BSD-P, water dispenser, Humidifier, dehumidifier, fluid control, a pump, alarm device, moisturizing machine , bathroom utensil , oil tank , water tower and chemical industrial ,etc. And widely applied in motor vehicles, industrial equipment, agricultural equipment and household electrical appliances in the future .
Product Specification
|
Switch Characteristic |
Physic Characteristic |
||
|
Contact Form |
A (normally open) |
Min Shock |
30G |
|
Max Contact Rating |
10W|70W |
Min Vibration |
30G(10-50Hz) |
|
Max Switch Voltage |
100V|300V |
Temp. Rating |
-10~+60 ° C |
|
Max Switch Current |
0.5A|1.0A |
Heat Shock |
-20~+70 ° C |
|
Max Contact Resistance |
100m Ohm |
Type |
Float Switch/Level Sensor |
|
Max Insluation Resistance |
100M Ohm |
|
|
|
Electronic Life |
1x 10 7 (5Vdc,10mA) |
|
|
Product Image
| FS-1002 | FS-6302 |
FS-5802
|
|
|
Certifications |
|
Package & Delivery |
|
FAQ |
1.Question: What are your main products?
Answer: We mainly focus on water float switch, flow sensor and door contact switch. We ensure a reasonable price and high quality products.
2.Question: Where is your company?
Answer: We are a factory based in Shenzhen, Guangdong, China. All of our products are safely manufactured according to UL, ISO9001 and RoHs principles, and carefully checked before packed.
3.Question: What are the available materials?
Answer: Plastic PP, Stainless steel
4.Question: Are these materials safe for drinking water?
Answer: Sure! All of our materials are made according the RoHs principles, they are nontoxic and environmental friendly.
5.. Question: Is the switch made normally open or closed?
Answer: Most clients take our normally open model, but no worries we can make normally closed one if you need. To save from trouble, please read our datasheet before ordering.
6. Question: There is no product in the list suitable for me, can you OEM a new model according to our desire?
Answer: Yes, we can! Please send us your requirement and basic data or pattern of the product you want, our engineers will take care and OEM the model for you!
|
