Quick Details
-
Rolling thinckness:
-
0.8-1.5mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
YY
-
Voltage:
-
as per your request, As customers request
-
Weight:
-
9000 kg
-
Feeding width:
-
914mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Products:
-
big span rol forming machine
-
Material:
-
Pre-printed steel coil,galvanized coil,Aluminum coil
-
Material of the cutting blade:
-
CR12
-
Speed:
-
10-25M/MIN
-
Cutting mode:
-
hydraulic
-
Control mode:
-
PLC
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
15-20m/min
-
Rolling thinckness:
-
0.8-1.5mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
YY
-
Voltage:
-
as per your request, As customers request
-
Weight:
-
9000 kg
-
Feeding width:
-
914mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Products:
-
big span rol forming machine
-
Material:
-
Pre-printed steel coil,galvanized coil,Aluminum coil
-
Material of the cutting blade:
-
CR12
-
Speed:
-
10-25M/MIN
-
Cutting mode:
-
hydraulic
-
Control mode:
-
PLC

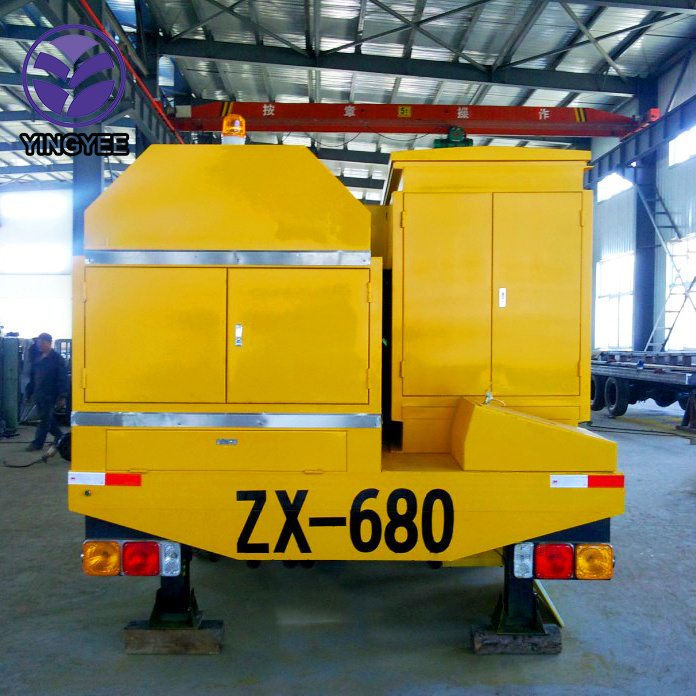

K STEEL TYPE SPAN STEEL ROOF BUILDING MACHINE
Specification:
1) Main machine dimension: 9.65m*2.23m*2.4m
2) Bending machine dimension; 3.8m*2.23m*2.4m
3) Suitable material: galvanized steel, colored steel, etc
4) Coil thickness: 0.6 –1.5mm
5) Roller stands:16
6) Roller diameter:80mm
7) Totally power:18.5kw
8) Main Power:7.5kw;
Hydraulic power:4.0kw;
side bending power:1.5kw*2
Curving power:4.0kw
9) Roller material: 40Cr
10) Shaft material: high grade #45 steel
11) Cutting Blade material:Cr12 steel
12) Machine speed: forming speed 13m/min Seaming
speed:6m/min
13) Span : ≤45m
14) Power supply: AC380V±10%, 50Hz, or as per your requirement
