Quick Details
-
Brand Name:
-
HiOSO
-
Use:
-
FTTX
-
Warranty Time:
-
3 year
-
Access mode:
-
10/100/1000Mbps
-
Wavelength:
-
850nm/1310nm/1490nm/1550nm
-
Conversion mode:
-
Medium conversion, storing and forwarding mode
-
Bit error rate:
-
<1/1000000000
-
MTBF:
-
100,000 hours
-
Power:
-
DC5V 1A (external), AC220/DC-48 (built-in)
-
Power consumption:
-
3W
-
Buffer space:
-
1 Mbit
-
Delay:
-
<1μs
Quick Details
-
Type:
-

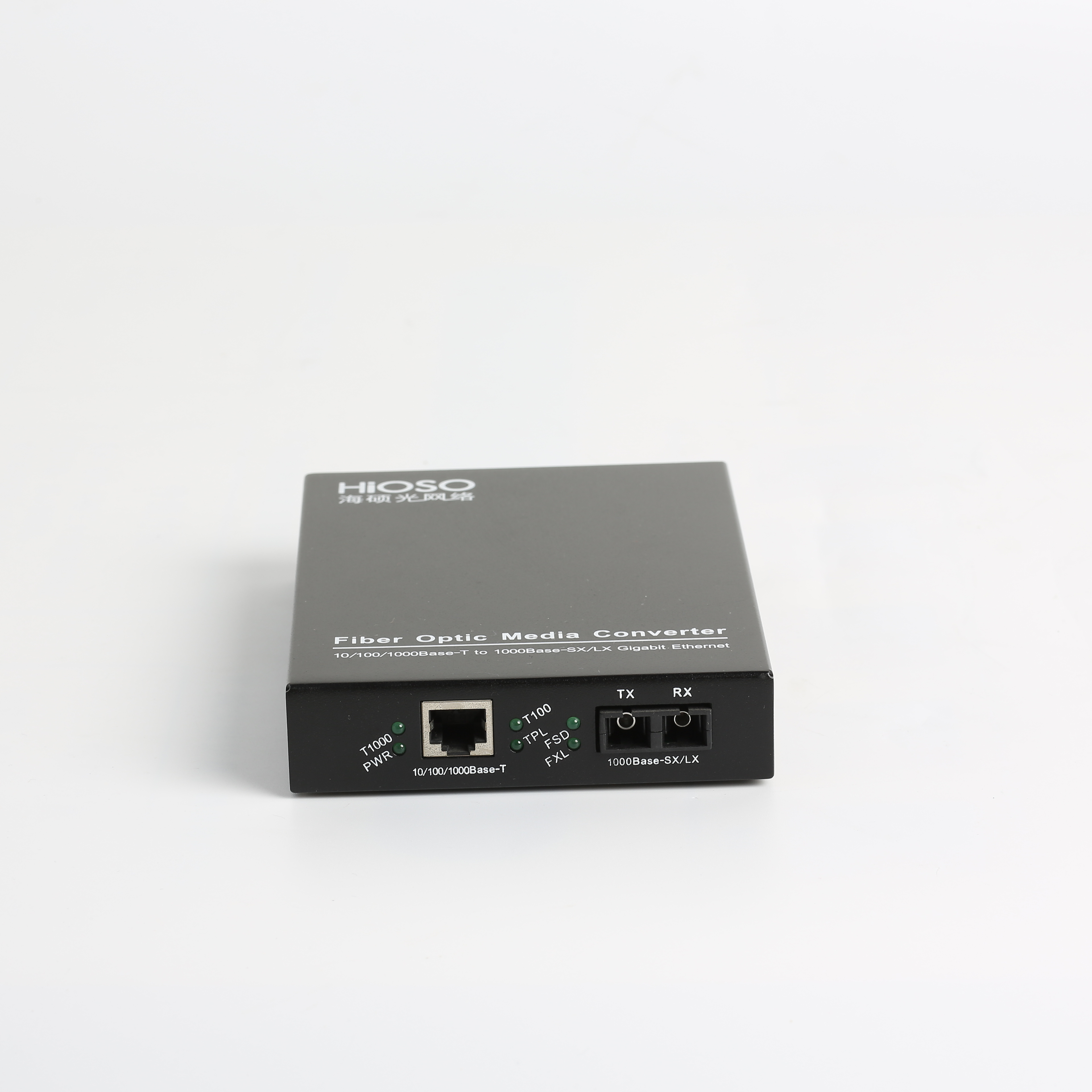

Fiber optic media converter
-
Model Number:
-
FC830AGM
-
Place of Origin:
-
guangdong
-
Brand Name:
-
HiOSO
-
Use:
-
FTTX
-
Warranty Time:
-
3 year
-
Access mode:
-
10/100/1000Mbps
-
Wavelength:
-
850nm/1310nm/1490nm/1550nm
-
Conversion mode:
-
Medium conversion, storing and forwarding mode
-
Bit error rate:
-
<1/1000000000
-
MTBF:
-
100,000 hours
-
Power:
-
DC5V 1A (external), AC220/DC-48 (built-in)
-
Power consumption:
-
3W
-
Buffer space:
-
1 Mbit
-
Delay:
-
<1μs
Product Description
Specification
|
item
|
value
|
|
Model Number
|
FC830AGM
|
|
Type
|
Fiber optic media converter
|
|
Place of Origin
|
guangdong
|
|
Brand Name
|
HiOSO
|
|
Use
|
FTTX
|
|
Warranty Time
|
3 year
|
|
Access mode
|
10/100/1000Mbps
|
|
Wavelength
|
850nm/1310nm/1490nm/1550nm
|
|
Conversion mode
|
Medium conversion, storing and forwarding mode
|
|
Delay
|
<1μs
|
|
Bit error rate
|
<1/1000000000
|
|
MTBF
|
100,000 hours
|
|
Power
|
DC5V 1A (external), AC220/DC-48 (built-in)
|
|
Power consumption
|
3W
|
|
Standard
|
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit
Ethernet, IEEE802.1qVLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
|
Transmission distance
|
Dual-fiber multi-mode: 220m(62.5/125μm)/550m(50/125μm); dual-fiber single-mode: 10/20/40/60/80/100/120Km;single-fiber single-mode:
10/20/40/60/80/100/120Km Category-5 twisted pairs: 100m |
|
Port
|
One RJ45 port: Connected to STP/UTP category-5 twisted pairs
One fiber port: Multi-mode – SC or ST (fiber size: 50,62.5/125μm) Single mode – SC/FC fiber port (fiber size: 9/125μm) Single-fiber single-mode – SC/FC fiber port (fiber size: 9/125 μ m) |
|
LED
|
FC830AM: PWR (power), T1000 (twisted pair: transmission rate of 1000M), T100 (twisted pair: transmission rate of 100M), TPL
(twisted pair: link/action), FSD(FX full-duplex mode), FXL (fiber link/action), RTL 1000(remote twisted pair: transmission rate of 1000M)(Module card), RTL (remote twisted pair link/action)(Module card), |
|
Operating temperature
|
-10~55°C
|
|
Operating humidity
|
5%~90%
|
|
Storage temperature
|
-40~80°C
|
|
Storage humidity
|
5%~90% (non-condensing)
|
