Quick Details
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
680*320*750
-
Weight:
-
35 kg
-
Marketing Type:
-
Hot Product 2024
-
Name:
-
Livestock and poultry feeding machine
-
Application:
-
Grain Feed
-
Usage:
-
Animal Poultry Livestock Pellet Making Machine
-
Capacity:
-
40-100kg/h
-
Material:
-
Alloy Steel
-
Color:
-
Customer's Request
-
Function:
-
Aniaml Feed Puffed Straw Cutting Machine
-
Processing Types:
-
Feed Mill Grinder
Quick Details
-
Max. Capacity:
-
40-+100 kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WEIWEI
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
680*320*750
-
Weight:
-
35 kg
-
Marketing Type:
-
Hot Product 2024
-
Name:
-
Livestock and poultry feeding machine
-
Application:
-
Grain Feed
-
Usage:
-
Animal Poultry Livestock Pellet Making Machine
-
Capacity:
-
40-100kg/h
-
Material:
-
Alloy Steel
-
Color:
-
Customer's Request
-
Function:
-
Aniaml Feed Puffed Straw Cutting Machine
-
Processing Types:
-
Feed Mill Grinder

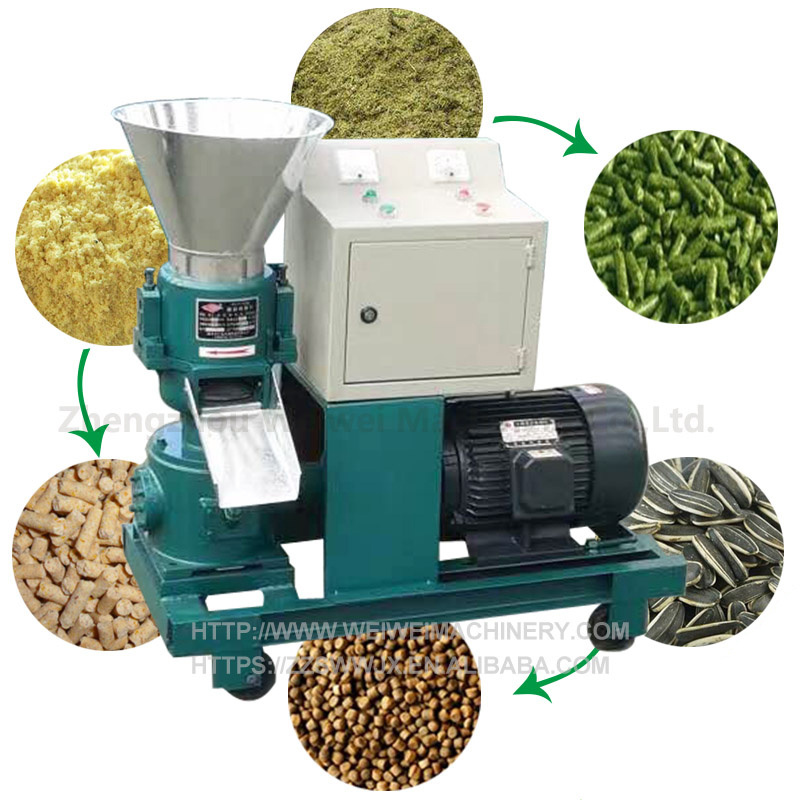

Factory supply flat die 40-100kg/h small production line machine
Introduction of small production line machine
Flat die adopt high quality wear-resisting alloy steel, which are processed by special heat treatment, high hardness, long working life. It is recommended replace roller and die at the same time.
We have several diameter for your choice , and the size can be customized according to your requirements. The raw materials also made of high quality wear-resisting alloy steel.high quality alloy steel material, you can choose 3mm,4mm,5mm,6mm and so on according to your demand.
Small production line machine main data:
| Model |
Die Diameter (mm) |
Production Efficiency (kg/h) |
Motive Power (kw) |
Spindle Speed (r/min) |
Weight (kg) |
Dimension (mm) |
|
9KLP-120 with belt |
105 |
40-50 | 2.2 | 400 | 38 | 700*350*850 |
|
9KLP-120 with gearbox |
105 | 40-50 | 2.2 | 400 | 40 | 650*400*750 |
|
9KLP-120A with gearbox |
120 | 60-80 | 3 | 400 | 45 | 650*400*750 |
|
9KLP-120 with direct motor |
120 | 60-80 | 3 | 400 | 50 | 680*320*750 |
|
9KLP-160 with gearbox |
160 | 100-150 | 5.5 | 380 | 70 | 910*400*900 |
|
9KLP-160 with direct motor |
160 | 100-150 | 5.5 | 380 | 70 | 910*400*700 |
|
9KLP-160 with clutch |
160 | 100-150 | >10hp | 380 | 75 | 910*400*900 |
| Model |
Die Diameter (mm) |
Production Efficiency (kg/h) |
Motive Power (kw) |
Spindle Speed (r/min) |
Weight (kg) |
Dimension (mm) |
|
9KLP-200 with gearbox |
200 | 150-300 | 7.5-11kw | 380 | 100 | 1000*500*950 |
|
9KLP-200 with direct motor |
200 | 150-300 | 7.5-11kw | 380 | 115 |
1000*500*800
|
|
9KLP-200 with clutch |
200 | 150-300 | >15hp | 380 | 120 | 1000*480*950 |
|
9KLP-250 with gearbox |
250 | 300-500 | 15-18.5 | 260 | 160 | 1100*600*1100 |
|
9KLP-250 with direct motor |
250 | 300-500 | 15-18.5 | 260 | 175 | 1100*520*900 |
|
9KLP-300 with gearbox |
300 | 600-800 | 22 | 260 | 200 | 1300*650*1150 |
|
9KLP-300 with direct motor |
300 | 600-800 | 22 | 260 | 220 | 1300*520*1000 |
|
9KLP-400 with gearbox |
400 | 1200-1500 | 37 | 600 | 1600*900*110 0 |
Advantages of small production line machine :
1. Simple structure.
2. Easy to clean and maintain.
3. Spare parts are also easy to change, less cost for rollers and dies.
4. Simple operating, just 1 or 2 workers are OK.
5. The sort of pelletizer is easier to clean than the ring die pellet machine
5. Be able to change new die and rollers faster to save time to produce pellets.
6. Small and light weight, which can be used in home,small farm,and light industrial.
7. Visibility to viewing the material during pelleting is the best way to fix problems
1. Q: Are you a trading company or a manufacturer?
A:we are the manufacturer , which has about 18 years experience and own research and development team.
2. Q: How To Order ?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.
3. Q: When will make delivery ?
A: Delivery Time
As usual, 7-15 days after getting payment. (Specific time according to order quantity)
4.Payment
L/C, T/T, Western Union, Paypal
5. Transportation
Transported by sea, by air or by express.
6. After-sales Service
12 months warranty for all kinds of products;
As an experienced manufacturer, you can rest assured of the quality and after- sales service.
