Quick Details
-
Output Voltage (V):
-
24/48V
-
Output Frequency:
-
50Hz/60Hz
-
Pre-sales project design:
-
YESz
-
Rated power:
-
1.2kw
-
Rated Voltage:
-
24/48V
-
Start-up wind speed:
-
1.3m/s
-
Rated wind speed:
-
10m/s
-
Blade Material:
-
glass/basalt
-
Blade number:
-
3
-
Rotor Diameter:
-
1m
-
Blades height(m):
-
1.5m
-
Generator:
-
Three phase permanent magnet suspension motor
-
Generator protection grade:
-
IP54
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RexCo
-
Model Number:
-
RC-1.2KX
-
Output Voltage (V):
-
24/48V
-
Output Frequency:
-
50Hz/60Hz
-
Pre-sales project design:
-
YESz
-
Rated power:
-
1.2kw
-
Rated Voltage:
-
24/48V
-
Start-up wind speed:
-
1.3m/s
-
Rated wind speed:
-
10m/s
-
Blade Material:
-
glass/basalt
-
Blade number:
-
3
-
Rotor Diameter:
-
1m
-
Blades height(m):
-
1.5m
-
Generator:
-
Three phase permanent magnet suspension motor
-
Generator protection grade:
-
IP54

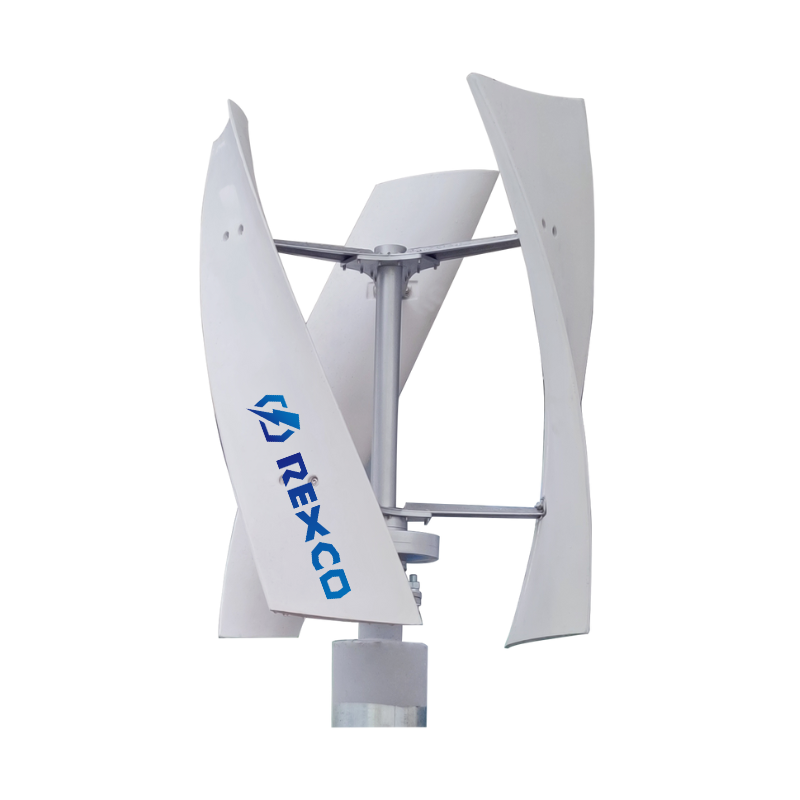

1KW 1200W 3KW 5KW Solar Panels Alternator Wind Turbine Generator Hybrid Power Generator
|
Model |
RC-1.2KX |
|
Rated Output |
1.2KW |
|
Peak Output |
2KW |
|
Rated Voltage |
24/48V |
|
Start-up Wind Speed |
1.3 m/s |
|
Cut-in Wind Speed |
2.5m/s |
|
Rated Wind speed |
10m/s |
|
Survival Max. wind |
40m/s |
|
Number of Blades |
3 |
|
Rotor Diameter |
1m |
|
Blades height(m)
|
1.5m |
|
Blade Material |
glass/basalt |
|
Generator Type |
Three phase permanent magnet suspension motor |
|
Control System |
Electromagnet
|
| Mount Height(m) | 2~12m |
| Generator protection grade | IP54 |
| Work environment temperature | -25~+45ºC |
| Work environment humidity | ≤90%, |
| Altitude: | ≤4500m |
| Overspeed protection | Electromagnetic brake |
|
Overload protection
|
Electromagnetic brake and the unloading unit |
|
Product Life |
15 years |
|
Warranty |
1 years |
|
Applications |
on/off-grid solar & wind hybrid system etc. |
