Quick Details
-
Application:
-
construction projects
-
Design Style:
-
construction facade
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
WUFANG
-
Product name:
-

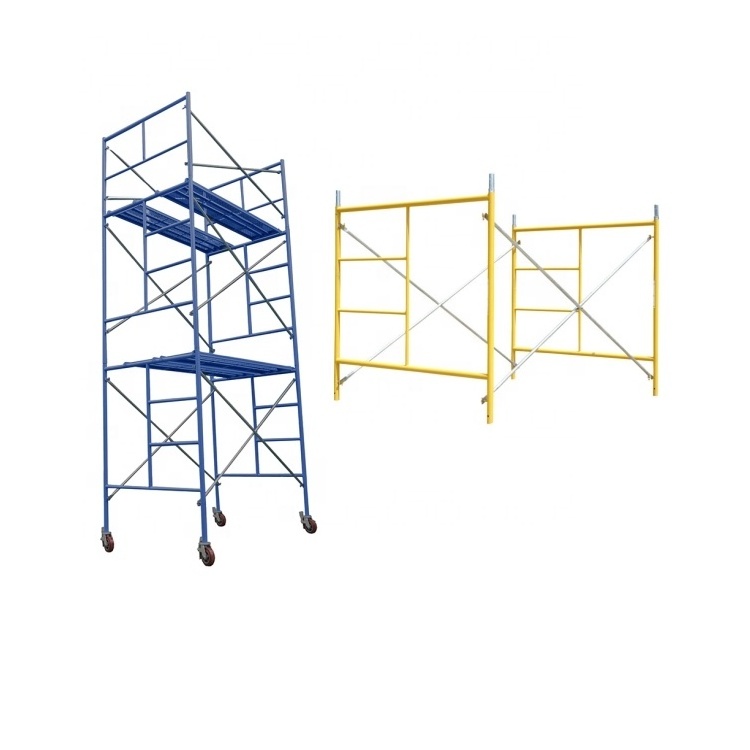

Frame Scaffolding System
-
Material:
-
Q195, Q235 Steel Pipe
-
Type of Scaffolding:
-
main frame, h frame, ladder frame
-
Surface treatment:
-
pre-galvanized, HDG, powder coated
-
Width:
-
610mm, 914mm, 1219mm, 1500mm
-
Height:
-
914mm, 1219mm, 1524mm, 1700mm, 1930mm, 2000mm
-
Main Tube:
-
42mm, 48mm, etc
-
Component:
-
cross brace, joint pin, catwalk, base jack, etc
-
Packing:
-
Bundle, bulk
-
MOQ:
-
500pcs
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, NONE
-
Project Solution Capability:
-
graphic design, total solution for projects
-
Application:
-
construction projects
-
Design Style:
-
construction facade
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
WUFANG
-
Product name:
-
Frame Scaffolding System
-
Material:
-
Q195, Q235 Steel Pipe
-
Type of Scaffolding:
-
main frame, h frame, ladder frame
-
Surface treatment:
-
pre-galvanized, HDG, powder coated
-
Width:
-
610mm, 914mm, 1219mm, 1500mm
-
Height:
-
914mm, 1219mm, 1524mm, 1700mm, 1930mm, 2000mm
-
Main Tube:
-
42mm, 48mm, etc
-
Component:
-
cross brace, joint pin, catwalk, base jack, etc
-
Packing:
-
Bundle, bulk
-
MOQ:
-
500pcs
Product Specifications
|
Product Name
|
Description
|
Tube Size
|
Size
|
Unit Weight
|
|
|
Main Frame Scaffolding
|
Pre-galvanized
|
Main tube: 42*2.2mm
Inner Tube: 25*1.5mm |
1219*1930mm
|
15.24 kg/pc
|
|
|
|
|
|
1219*1700mm
|
13.75 kg/pc
|
|
|
|
|
|
1219*1524mm
|
12.44 kg/pc
|
|
|
H Frame Scaffolding
|
Pre-galvanized
|
Main tube: 42*2.2mm
Inner Tube: 25*1.5mm |
1219*1930mm
|
16.05 kg/pc
|
|
|
|
|
|
1219*1700mm
|
14.21 kg/pc
|
|
|
|
|
|
1219*1524mm
|
12.74 kg/pc
|
|
|
Cross Brace
|
Pre-galvanized
|
21.3*1.4mm
|
1829*1219*2198mm
|
3.08 kg/pc
|
|
|
|
|
|
1829*914*2045mm
|
2.87 kg/pc
|
|
|
|
|
|
1219*1219*1724mm
|
2.43 kg/pc
|
|
|
Joint Pin
|
Pre-galvanized
|
36*1.5*225mm
|
|
0.34 kg/pc
|
|
|
|
|
36*1.2*225mm
|
|
0.29 kg/pc
|
|
|
|
|
36*1.0*225mm
|
|
0.25 kg/pc
|
|
Product Details
Advantages of
Frame
Scaffolding
1.Easily assembled
2.High Load Capacity
3.High-strength steel tubing
4.Safe, efficient and dependable
5.Fast erection and dismantling
3.High-strength steel tubing
4.Safe, efficient and dependable
5.Fast erection and dismantling
Product Packing & Loading
Applications
* The frame system is suited for formwork props in building, halls, bridges, viaducts and tunnels, or as the main shoring frame for flying forms.
* Scaffolding frame systems can be used as the pipe scaffolding for high-rise buildings.
* The frame system can be used as the flexible working platform for electro mechanical installation, ship hull construction and repairs, etc.
* Scaffolding frame systems can be used as the pipe scaffolding for high-rise buildings.
* The frame system can be used as the flexible working platform for electro mechanical installation, ship hull construction and repairs, etc.
