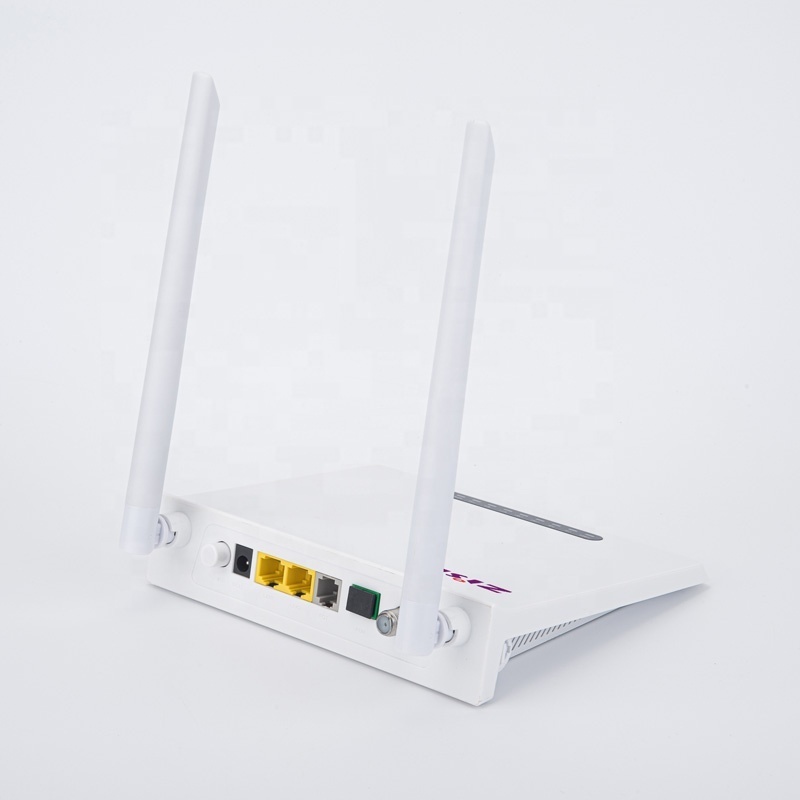

Z I SA OP152WV-RF
1GE+1FE+WIFI+CATV+1POTs XPON ONU
Product Overview
l 1G1F+WIFI+CATV+POTs is designed as HGU (Home Gateway Unit) in deferent FTTH solutions; the carrier-class FTTH application provides data service access.
l 1G1F+WIFI+CATV+POTs are based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
l 1G1F+WIFI+CATV+POTs adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
l 1G1F+WIFI+CATV+POTs are compliant with IEEE802.11n STD, adopts with 2x2 MIMO, the highest rate up to 300Mbps.
l 1G1F+WIFI+CATV+POTsarefullycompliantwithtechnical regulations such as ITU-T G.984.xand IEEE802.3ah.
l 1G1F+WIFI+CATV+POTs are designed by Realtek chipset 9602C.
Feature
l Supports Dual Mode (can access GPON/EPONOLT).
l Supports GPON G.984/G.988 standardsand IEEE802.3ah.
l Support CATV interface for Video Service and remote control by Major OLT
l Support SIP Protocol for VoIP Service
l Integrated line testing compliant with GR-909 on POTS
l Support 802.11n WIFI (2x2 MIMO) function
l Support NAT, Firewall function.
l Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
l Support port mode of VLAN configuration
l Support LAN IP and DHCP Server configuration
l Support TR069 Remote Configuration and WEB Management
l Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
l Support IPv4/IPv6dual stack
l Support IGMP transparent/snooping/proxy
l In compliant with IEEE802.3ah standard
l Compatible with popular OLT(HW, ZTE, FiberHome...)
Product Specifications
|
Technical Item |
Details |
|
PON interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
|
LAN interface |
1x10/100/1000Mbps and 1x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
|
WIFI Interface |
Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: Multiple SSID Channel:13 Modulation type: DSSS , CCK and OFDM Encoding scheme: BPSK , QPSK , 16QAM and 64QAM |
|
CATV Interface |
RF, optical power : +2~-18dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 82dBuV ( -7dBm optical input ) AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), > 35(-10dBm) |
|
POTS Port |
RJ11 Max 1km distance Balanced Ring, 50V RMS |
|
LED |
10 LED, For Status of WIFI , WPS , PWR , LOS , PON , LAN1~LAN2 , WORN , NORMAL(CATV), FXS |
|
Push-Button |
4, for Function of Power on/off, Reset, WPS, WIFI |
|
Operating condition |
Temperature : 0 ℃ ~ +50 ℃ Humidity :10% ~ 90% ( non-condensing ) |
|
Storing Condition |
Temperature : -40 ℃ ~ +60 ℃ Humidity :10% ~ 90% ( non-condensing ) |
|
Power supply |
DC 12V/1A |
|
Power Consumption |
<6W |
|
Net Weight |
<0.4kg |
Panel lights and Introduction
|
PilotLamp |
Status |
Description |
|
WIFI |
On |
The WIFI interface is up. |
|
Blink |
The WIFI interface is sending or/and receiving data (ACT). |
|
|
Off |
The WIFI interface is down. |
|
|
WPS |
Blink |
The WIFI interface is securely establishing a connection. |
|
Off |
The WIFI interface does not establish a secure connection. |
|
|
PWR |
On |
The device is powered up. |
|
Off |
The device is powered down. |
|
|
LOS |
Blink |
The device doses not receive optical signals or with low signals. |
|
Off |
The device has received optical signal. |
|
|
PON |
On |
The device has registered to the PON system. |
|
Blink |
The device is registering the PON system. |
|
|
Off |
The device registration is incorrect. |
|
|
LAN1~LAN2 |
On |
Port (LANx) is connected properly (LINK). |
|
Blink |
Port (LANx) is sending or/and receiving data (ACT). |
|
|
Off |
Port (LANx) connection exception or not connected. |
|
|
FXS |
On |
Telephone has registered to the SIP Server. |
|
Blink |
Telephone has registered and data transmission (ACT). |
|
|
Off |
Telephone registration is incorrect. |
|
|
WORN (CATV) |
On |
Input optical power is higher than 2dBm or lower than -18dBm |
|
Off |
Input optical power is between -18dBm and 2dBm |
|
|
Normal (CATV) |
On |
Input optical power is between -18dBm and 2dBm |
|
Off |
Input optical power is higher than 2dBm or lower than -18dBm |
Application
l Typical Solution : FTTO(Office) , FTTB(Building) , FTTH(Home)
l Typical Service : Broadband Internet access, IPTV, VOD, video surveillance, CATV, VoIP etc.
Ordering information
|
Product Name |
Product Model |
Descriptions |
|
1G1F+WIFI+CATV+POTs XPON |
OP152WV-RF |
1*10/100/1000M and 1*10/100M Ethernet interface, 1 GPON interface, 1 POTS interface, 1 RF interface, built-in FWDM, support Wi-Fi function, Plastic casing, external power supply adapter |
Contact us
ZISA Corporation Limited
Mail to :sales(at) zisacom.com.cn
URL: http://www.zisacom.com
Specifications are subject to change without notice.
