- Product Details
- {{item.text}}
Quick Details
-
Mounting Type:
-
ceiling mounting
-
Description:
-
Z10 for outdoor lighting, outdoor motion sensor
-
Model Number:
-
HNS178DHPIR
-
Place of Origin:
-
Guangdong, China, Shenzhen, China
-
Brand Name:
-
hynall
-
Theory:
-
z10 sensor
-
Output:
-
0-10v dimming, 0-10v
-
Name:
-
Z10 PIR daylight harvest sensor
-
Input voltage:
-
12 - 24V DC
-
Input current:
-
≥8mA
-
Function:
-
tri-level dimming and daylight harvest
-
IP rating:
-
IP65
-
Usage:
-
outdoor lighting and solar street light etc.
-
Warranty:
-
5 year
-
Operation temperature:
-
-20℃ ~ + 60℃.
Quick Details
-
Use:
-
lighting & lighting system
-
Series:
-
Z10
-
Features:
-
IP65
-
Mounting Type:
-
ceiling mounting
-
Description:
-
Z10 for outdoor lighting, outdoor motion sensor
-
Model Number:
-
HNS178DHPIR
-
Place of Origin:
-
Guangdong, China, Shenzhen, China
-
Brand Name:
-
hynall
-
Theory:
-
z10 sensor
-
Output:
-
0-10v dimming, 0-10v
-
Name:
-
Z10 PIR daylight harvest sensor
-
Input voltage:
-
12 - 24V DC
-
Input current:
-
≥8mA
-
Function:
-
tri-level dimming and daylight harvest
-
IP rating:
-
IP65
-
Usage:
-
outdoor lighting and solar street light etc.
-
Warranty:
-
5 year
-
Operation temperature:
-
-20℃ ~ + 60℃.

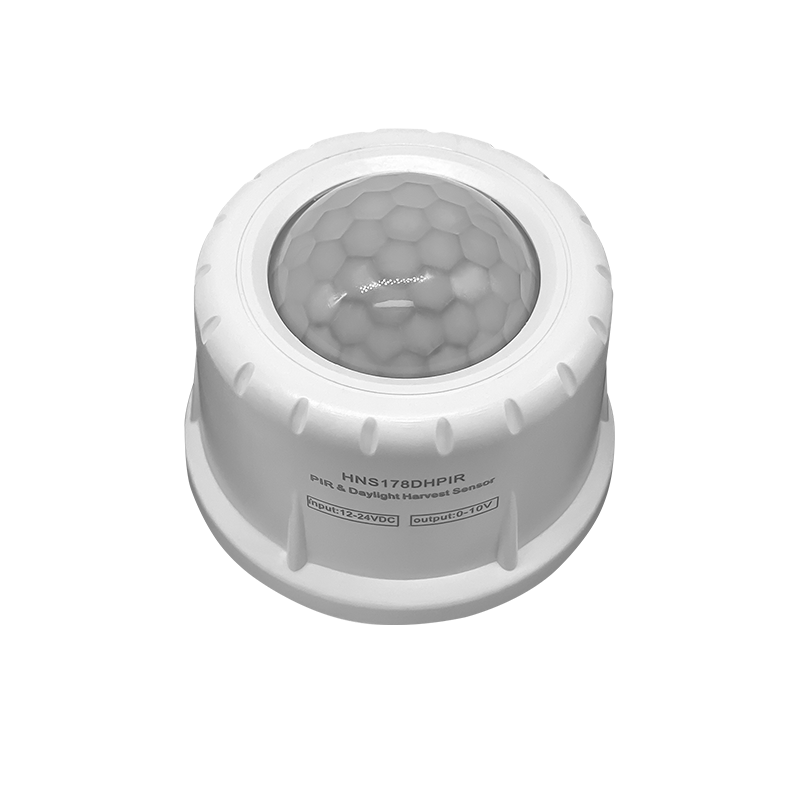

Model name: HNS178DHPIR Z10
IP65 PIR motion sensor
Quick detail of solar motion flood lights PIR motion sensor HNS178DHPIR
1, Z10 international standard version
*0~10V output signal, daylight harvest 2 in 1, remote control setting.
2, Super compact size(57mm only in diameter).
3, IP65, specially designed for outdoor lighting simple plug and play.
4, Intelligent photocell to measure and differentiate natural light from LED light.
5,One-key memory commissioning & IR remote commissioning with memory function, easy setting and user friendly.
Description of solar motion street lights PIR motion sensor
HNS178DHPIR uses Z10 standard socket, 12V DC input, 0-10v dimming and daylight harvest function by remote control setting high bay max. 12m PIR motion sensor.
Advantage of IP65 PIR sensor
This kind of model HNS178DHPIR is using Z10 standard socket, and if you own international standard Z10 socket, you can use our HNS178DHPIR or other models with different functions. PIR sensor input current is very small, it’s a good choice for Solar outdoor lighting.
Quick detail of solar motion flood lights PIR motion sensor HNS178DHPIR
1, Z10 international standard version
*0~10V output signal, daylight harvest 2 in 1, remote control setting.
2, Super compact size(57mm only in diameter).
3, IP65, specially designed for outdoor lighting simple plug and play.
4, Intelligent photocell to measure and differentiate natural light from LED light.
5,One-key memory commissioning & IR remote commissioning with memory function, easy setting and user friendly.
Description of solar motion street lights PIR motion sensor
HNS178DHPIR uses Z10 standard socket, 12V DC input, 0-10v dimming and daylight harvest function by remote control setting high bay max. 12m PIR motion sensor.
Product information:
|
Type:
|
PIR and Daylight harvest motion sensor
|
|
Input voltage:
|
12V DC-24V DC
|
|
Input current:
|
≥8mA
|
|
Detection range
|
max. 16-18m in diameter.
|
|
No.
|
Name
|
Desc.
|
Function
|
|
1
|
|
2. 8-30V DC input
|
1. on/off and lux off function
2. 1-10v dimming
3. trailing edge
4. UVC sterilization sensor
5. independent DALI dimming and daylight harvest
6. RF wireless and tunable white
|
|
2
|
|
12-24V DC input
|
0-10v dimming and daylight harvest
|
|
3
|
|
5V DC
|
1. IF signal
2. 5V DC high low voltage
|
|
4
|
|
1. 220-240V AC input
2. 8-30V DC input
|
1. on/off and manual holiday mode
2. timer and 0-10v dimming
|
|
5
|
|
|
1. 0-10v dimming and daylight harvest for microwave
2. on/off and dimming for photocell
3. DALI dimming
|
Product Description
Specification
|
Input voltage:
|
12 - 24V DC
|
|
Detection range :
|
up to max. 16~18m in diameter
|
|
Function:
|
Tri-level dimming and lux off function
|
|
Mounting height:
|
max.12m
|
|
IR remote commissioning:
|
easy setting and user friendly.
|
|
Input current:
|
≥30mA
|
|
Operation temperature: .
|
-20 C ~ + 70 C
|
|
IP rating:
|
IP65
|
Application Scene：
Certification:
Packing & Delivery
box size: 45*30*23cm inner box: 30*23*20cm
