Quick Details
-
Dimensions (L x W x H) (mm):
-
7379x2350x2370
-
Place of Origin:
-
HUBEI, China
-
Product name:
-
wrecker tow truck
-
Driving type:
-
4x2 LHD
-
Towing capacity:
-
5-8 Ton Truck Recovery
-
using for:
-
Road Assistance Rescue
-
Loading capacity:
-
5-8 ton
-
Warranty:
-
1 year
-
Color:
-
Customer's Requirement
Quick Details
-
Emission Standard:
-
EURO 6
-
Condition:
-
New
-
Brand Name:
-
Shenbai
-
Dimensions (L x W x H) (mm):
-
7379x2350x2370
-
Place of Origin:
-
HUBEI, China
-
Product name:
-
wrecker tow truck
-
Driving type:
-
4x2 LHD
-
Towing capacity:
-
5-8 Ton Truck Recovery
-
using for:
-
Road Assistance Rescue
-
Loading capacity:
-
5-8 ton
-
Warranty:
-
1 year
-
Color:
-
Customer's Requirement
Product Pictures

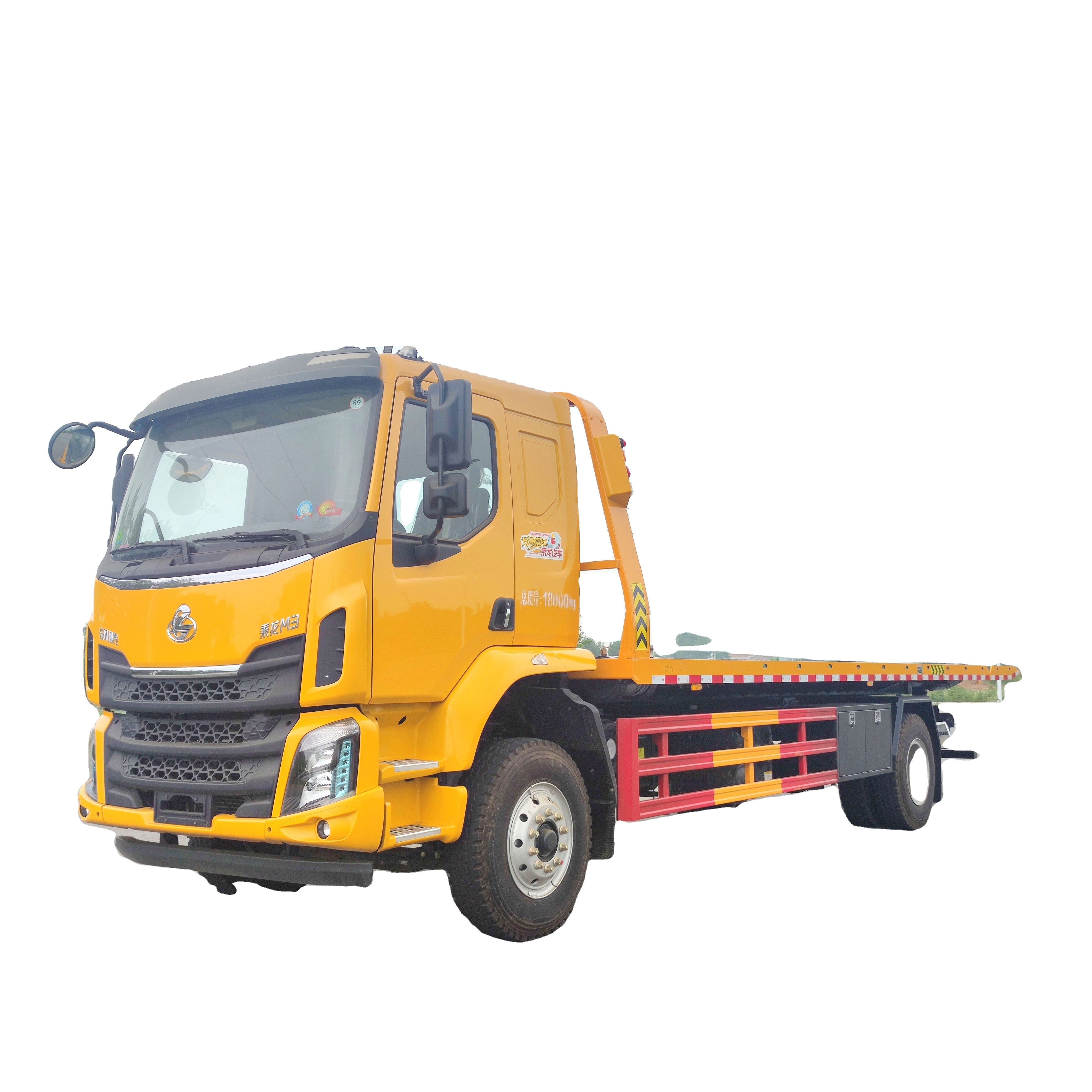

Dongfeng LiuQi Chenglong Tow Truck Wrecker 5 Ton Road Rescue Tow Truck Flatbed For Sale In Pakistan
Our company also offer Dongfeng, ISUZU,Foton,Howo,FAW,Shacman for your choice.
Our tow truck also install crane,2ton,3ton,3,5ton,4ton,5ton,6.3ton,8ton,10ton,12ton,14ton,16ton,20ton,25ton,30ton folding or straight boom crane for choice.
|
General
|
Vehicle Name
|
LiuQi Chenglong 6Ton Flatbed Tow truck
|
|
|
Chassis Brand
|
Cummins
|
|
|
Overall Dimension(m)
|
7.379×2.35×2.37
|
|
|
GVW(kg)
|
7300
|
|
|
Curb Weight(KG)
|
4280
|
|
Cab
|
Cab Seat
|
2,3
|
|
|
Air Conditioner
|
Yes
|
|
Engine
|
Fuel Type
|
Diesel
|
|
|
Engie Model
|
200hp
|
|
|
Engine Brand
|
cummins
|
|
|
Power(KW)
|
200hp
|
|
|
Emmission Standard
|
Euro 6
|
|
Chassis
|
Drive Type
|
4X2
|
|
|
Transmission
|
MSB 5-speed gearbox
|
|
|
Wheelbase(mm)
|
4500
|
|
|
Tyre Specification
|
11.00R20
|
|
|
Tyre No.(pcs)
|
6+1
|
|
|
Max Speed(km/h)
|
85
|
|
|
Paint
|
as your required
|
|
|
ABS
|
Yes
|
|
Superstructure
|
Flatbed material
|
High quality structural steel Q235
|
|
|
flatbed size
|
5600*2300mm
|
|
|
flatbed thickness(mm)
|
3-6mm
|
|
|
Load capacity
|
5-8 Ton
|
|
|
Towing capacity
|
5-8 Ton
|
|
|
Angle between the flatbed and the ground
|
8-10 degree
|
|
|
Standard configuration
|
Operation controller on both side
|
|
|
|
1 set 2.5T rear towing boom
|
|
|
|
4 tons hydraulic winch (21m steel wire rope)
|
|
|
|
1 set of auxiliary wheel
|
|
|
|
4 sets of binding belt
|
|
|
|
1 chain hook
|
|
|
|
2 working lights
|
|
|
|
1 set of tools
|
PRODUCT CONFIGURATION
Hydraulic Engine
Hydraulic cylinder
Radiator
.
Multiple Valve
slewing bearing
Winch
Lifting arms
Remote controller
Span hydraulic cylinder
1. Throttle Control System
Changing the form of previous manipulation and throttle operation individually,Realization of the bilateral handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady,it can easily to carry out the lifting work.
2. End position automatic hook device
Maximum savings in preparation time before and after operation, to ensure that customer's vehicle could be in a driving state in the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving.
3. Hoisting overwinder device
If a user is negligent or unfamiliar with the operation of lifting hooks,the hoisting overwinder device will stop hook raise in time, to prevent the safety of personal and property caused by fracture of wire rope.
4. Slewing locking device
Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle,to avoid all kinds of accidents caused by swaying.
5. Torque limiter
It can select torque limit overload protection device to prevent users because of negligence or unfamiliar with the lifting operation principle of overload operation, thereby causing the vehicle rollover and crane damage accidents.
Optional Devices
DUMP Function+Rear Outrigger
100M Wireless Remote Control
With Drill
Brick clamping device
Grabber
Aerial work basket
Product Advantage
Certifications
Our Advantages
1. Single cylinder synchronization guy cable technology make work efficiency more higher than before.
2. Advanced development means make sure that the design is reliable.
3. The more symmetrical center design of pentagon hexagon boom make it has bigger anti-bending capacity.
4. Compact hinge point design take up smaller space.
5. The work is more safety after fitted with overwind alarm equipment.
6. The integer lifting winch improved the working efficiency greatly and prolonged work life of hydraulic system.
7. Float three-point bridge structure can lower the accessional stress on the chassis when driving.
8. Self-designed and developed slewing machine with greater driving force can meet various requirements of working situation.
9. Anti-slewing impulse equipment that make vehicle running safety..
Product Pictures
Packaging and Shipping / Shipping port: Shanghai
