Quick Details
-
Warranty(Year):
-
2-Year
-
Product Weight（kg）:
-
13.4
-
Input Voltage(V):
-
100-240V 50-60Hz
-
Working Temperature(℃):
-
-20 - 40
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
LEAHUA
-
Emitting Color:
-
LED RGBWA+UV
-
LEDs:
-
9pcs 10W RGBWA+UV 6-IN-1 LED
-
Beam Angle:
-
15°
-
DMX Channels:
-
2 DMX modes, 6channels mode & 10 channels mode
-
Control mode:
-
DMX, Wireless, WIFI, Remote, Master-slave, Auto
-
Dimmer:
-
0-100% with regulated constant color control
-
Battery type:
-
Lithium Ion
-
Battery Charge Time:
-
6hours(full power)
-
Battery Life:
-
(all on) 4hours, (single Color) 24hours
-
Battery Power:
-
12V, 25Ah
-
Product high:
-
2-2.5M
Quick Details
-
Color Temperature(CCT):
-
4100K (Neutral White)
-
Type:
-
Projection Lights
-
Application:
-
Wedding/Parties/Event etc.,
-
Warranty(Year):
-
2-Year
-
Product Weight（kg）:
-
13.4
-
Input Voltage(V):
-
100-240V 50-60Hz
-
Working Temperature(℃):
-
-20 - 40
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
LEAHUA
-
Emitting Color:
-
LED RGBWA+UV
-
LEDs:
-
9pcs 10W RGBWA+UV 6-IN-1 LED
-
Beam Angle:
-
15°
-
DMX Channels:
-
2 DMX modes, 6channels mode & 10 channels mode
-
Control mode:
-
DMX, Wireless, WIFI, Remote, Master-slave, Auto
-
Dimmer:
-
0-100% with regulated constant color control
-
Battery type:
-
Lithium Ion
-
Battery Charge Time:
-
6hours(full power)
-
Battery Life:
-
(all on) 4hours, (single Color) 24hours
-
Battery Power:
-
12V, 25Ah
-
Product high:
-
2-2.5M

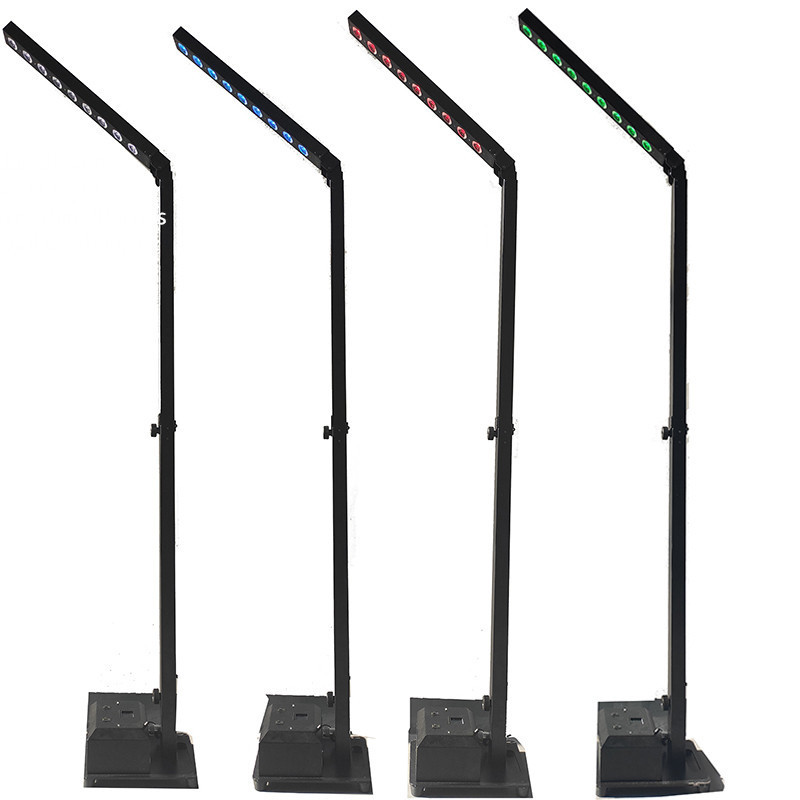

LEAHUA 9*10W Battery LED RGBWA+UV 6in1 Mast Light ,Wedding Parties Light
More detail:
Specs:
Voltage: 100 - 2 4 0 V 50-60Hz
Power Draw: 90 W
LEDs : 9 pcs 10 W RGBW A+UV 6 -IN-1 LED
Beam Angle : 15 °
DMX Channels: 2 DMX modes, 6channels mode & 10 channels mode
Control mode : DMX , Wireless, WIFI, Remote, M aster-slave , Auto
Dimmer: 0-100% with regulated constant color control
Battery:
Battery type: Lithium Ion
Battery Charge Time: 6 hours(full power)
Battery Life: (all on) 4hours, (single Color) 24hours
Battery Power: 12V, 25Ah
Wireless effective distance: 400meters
Strobe rate:0-24HZ
Cover: Aluminum
Net weight : 13.4 KG
P roduct high : 2-2.5 M
DMX Channels:6/10Channels
6CH mode
|
CH |
Value |
Function |
|
1 |
0-255 |
Red from darkness to brightness |
|
2 |
0-255 |
Green from darkness to brightness |
|
3 |
0-255 |
Blue from darkness to brightness |
|
4 |
0-255 |
White from darkness to brightness |
|
5 |
0-255 |
Amber from darkness to brightness |
|
6 |
0-255 |
Purple from darkness to brightness |
10CH mode
|
CH |
Value |
Function |
|
1 |
0-255 |
Total dimmer ,CH9(0~9) |
|
2 |
0-9 |
Strobe close |
|
10-255 |
Strobe open, from slow to fast |
|
|
3 |
0-255 |
Red from darkness to brightness |
|
4 |
0-255 |
Green from darkness to brightness |
|
5 |
0-255 |
Blue from darkness to brightness |
|
6 |
0-255 |
White from darkness to brightness |
|
7 |
0-255 |
Amber from darkness to brightness |
|
8 |
0-255 |
Purple from darkness to brightness |
|
9 |
0-9 |
Dimmer mode |
|
10-29 |
C hoose color: CH10 choose color |
|
|
30-49 |
Jump change: CH10 control speed |
|
|
50-69 |
Gradual change: CH10 control speed |
|
|
70-89 |
Pulse change: CH10 control speed |
|
|
90-109 |
Red On + Strobe: CH10 control speed |
|
|
110-129 |
Green On + Strobe: CH10 control speed |
|
|
130-149 |
Blue On + Strobe: CH10 control speed |
|
|
150-169 |
Amber On + Strobe: CH10 control speed |
|
|
170-189 |
Purple On + Strobe: CH10 control speed |
|
|
190-209 |
Sound Jump change |
|
|
210-229 |
Sound Jump change + Gradual change |
|
|
230-255 |
Sound Strobe |
|
|
10 |
0-255 |
CH10 function decided by CH9 When CH9 on 10-29, CH10 will choose When CH9 on 30-189, CH10 will control speed, from slow to fast |
Shipping ways: (1)By express:DHL, FEDEX, UPS,TNT, about 3-5 woking days;
(2)By air :about 5-10 working days;
(3)By sea: about 25-45days.
