Quick Details
-
Color:
-
Customized
-
Material:
-
Carbon steel or stainless steel
-
Installation:
-
Installation: Send video, CAD drawing, and/or dispatch engineer
-
Function:
-
Screening and washing
-
engine:
-
diesel engine or eletric motor for gold trommel screen
-
Other name:
-
gold trommel,gold trommerl wash plant,gold trommel screen
-
Layer:
-
1-3 Layers
-
Capacity:
-
30-90tph
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Jiangxi, China
-
screen size:
-
<3-20
-
Color:
-
Customized
-
Material:
-
Carbon steel or stainless steel
-
Installation:
-
Installation: Send video, CAD drawing, and/or dispatch engineer
-
Function:
-
Screening and washing
-
engine:
-
diesel engine or eletric motor for gold trommel screen
-
Other name:
-
gold trommel,gold trommerl wash plant,gold trommel screen
-
Layer:
-
1-3 Layers
-
Capacity:
-
30-90tph
Introduction of rotary trommel |
The rotary Trommel Screen provide a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing. Our Gold Trommel Screen are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance This material out from the Gold Trommel Screen is then passed on to the downstream process equipment which can be in various forms such as centrifugal Concentrator, spirals, jigs etc.
Structure and principle of gold trommel screen |
Our Gaoxuan gold trommel is consist of round trommel, rack, discharging, speed reducer, motor, water flusher etc 6 parts. The ores are fed into trommel, with the help of rotating centrifuge power and jigging to classify materials, and are classified from different screen mesh.
The GT series Gold Trommel Wash Plant is a motor for vertical excitation source, the motor and lower eccentric weight installed at both ends of the motor rotary motion into a horizontal, vertical, inclined three elementary motions, then the movement passed to the screen surface . Adjust the upper and lower ends of the phase angle, the material can change the trajectory of the screen surface.Trommel screen Uses and characteristics of the device applied to particle classification of treatment processes of various trades and industries at home and abroad.
Technical parameters of g old trommel screen |
Model | Capacity | Power | Drum diameter | Drum length | Screen size | Dimension | Weight |
(t/h) | (kw) | (mm) | (mm) | (mm) | (mm) | (kg) | |
GX0510 | 1-10 | 1.5 | 500 | 1000 | <3~10 | 1800*1020*1500 | 1000 |
GX1015 | 5-20 | 4.0 | 1000 | 1500 | 3000*1400*2145 | 2200 | |
GX1020 | 10-40 | 5.5 | 1000 | 2000 | 3460*1400*2145 | 2800 | |
GX1225 | 20-60 | 7.5 | 1200 | 2500 | 4146*1600*2680 | 4200 | |
GX1530 | 30-90 | 11 | 1500 | 3000 | 4460*1900*2820 | 5100 | |
GX1545 | 50-120 | 15 | 1500 | 4500 | 5960*1900*3080 | 6000 | |
GX1848 | 70-180 | 22 | 1800 | 4800 | 6500*2300*4000 | 7000 | |
GX1860 | 80-200 | 22 | 1800 | 6000 | 8000*2300*4000 | 7500 | |
GT2055 | 120-250 | 30 | 2000 | 5500 | 7500*2500*4000 | 8600 |
We could supply both stationary and mobile type Gold Trommel Wash Plant
Mobile type rotary trommel |

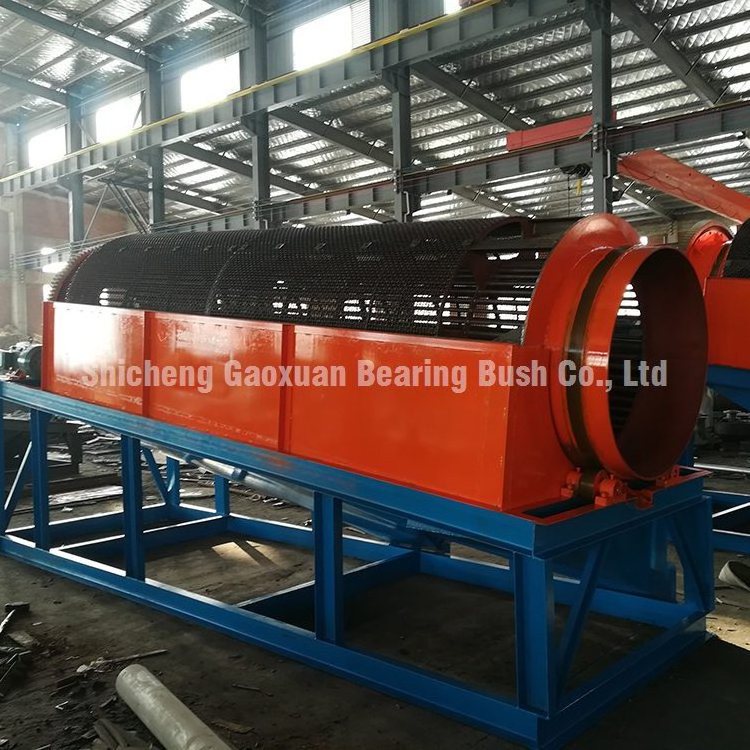

Stationary type gold trommel screen |
Application of gold trommel screen |
Rotary trommel screen is usually used at the primary separation period of placer gold mining so as to washing and screening gold ore. The upper sizes out are always reckoned as unuseful materials. The bottom sizes which contain the gold are usually processed by centrifugal concentrator or gold sluice box continuously to upgrade gold ore. The concentrates of centrifugal concentrator could be processed by shaking table which is used to separate the gold from other minerals.
Payment Terms of Shaker Table |
• We usually accept T/T, L/C |
• T/T: 30% of total amount as deposit, 70% balance before delivery. |
• We will take pictures of finished products to you before delivery. |
Way of Packing of Shaker Table |
• FCL & LCL export standard container 20/40 feet. |
• FCL: Sea-worthy package. Machines are fixed in container; spare parts are packed in wooden boxes. |
• LCL: Machines are packed in steel frame with plywood boxes. Customized package is available. |
Shipping of Shaker Table |
• By sea shipment |
MSK/MSC/APL/EMC/PIL and so on |
• By air shipment |
• By courier express |
The lab equipment could be delivered by the courier express, such as UPS, DHL etc.
|
