Quick Details
-
Weight:
-
160 KG
-
Dimension(L*W*H):
-
1420*860*810
-
Product Name:
-
3 discs disc plough
-
Color:
-
Requirements
-
Working Width:
-
400mm
-
Working depth:
-
200mm
-
Q'ty of disc:
-
2-6pcs
-
options:
-
Scraper or Heavier duty pull rod
-
Matched power:
-
15-25hp
-
Linkage:
-
3 Point Linkage
-
Product Type:
-
Agriculture Machinery Equipment
-
Disc diameter:
-
660mm
Quick Details
-
Use:
-
crushing clods after tillage
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WD
-
Weight:
-
160 KG
-
Dimension(L*W*H):
-
1420*860*810
-
Product Name:
-
3 discs disc plough
-
Color:
-
Requirements
-
Working Width:
-
400mm
-
Working depth:
-
200mm
-
Q'ty of disc:
-
2-6pcs
-
options:
-
Scraper or Heavier duty pull rod
-
Matched power:
-
15-25hp
-
Linkage:
-
3 Point Linkage
-
Product Type:
-
Agriculture Machinery Equipment
-
Disc diameter:
-
660mm
Product Description

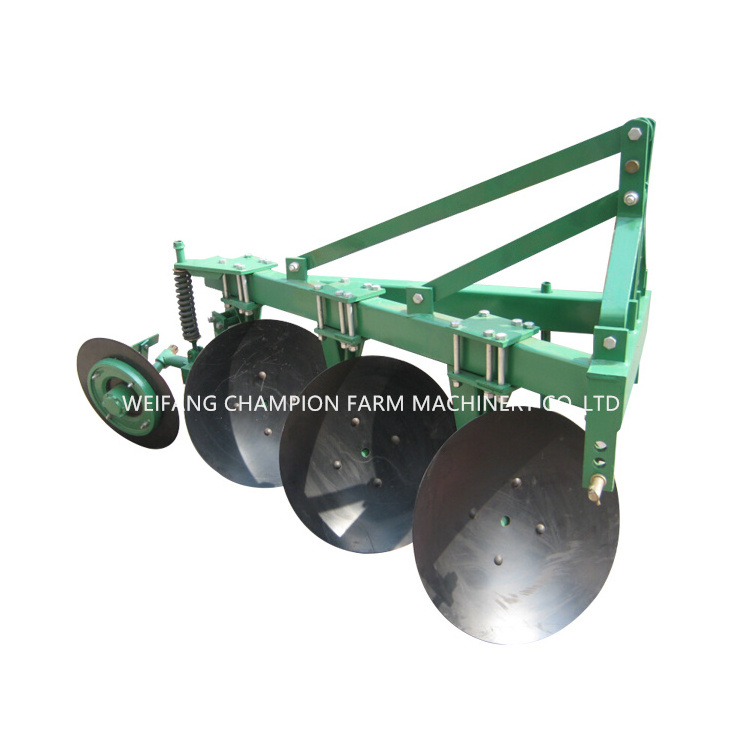

disc plough Description
1.This kind of Disc plough is matched with four-wheel tractor;
2.The discs of plough are revolving to furrow the land during operation.
3.The mounted disc plow is especially suitable for land which has weeds,
stems and frictional soil with small brick etc.
SPECIFICATONS
SPECIFICATIONS:
| Model | unit | 1LYQ-220 | 1LYQ-315 | 1LYQ-320 | 1LY(T)-322 |
| Working width | mm | 400 | 450 | 600 | 660 |
| Working depth | mm | 200 | 220 | ||
| Q’ty of disc | 2 | 3 | 3 | 3 | |
| Total weight | kg | 140 | 160 | 190 | 340 |
| Matched power | hp | 18 | 25 | 25-40 | 40-50 |
| Linkage | type | Three-point suspension I type | II type | ||
| The items selectable | Scraper or Heavier duty pull rod | ||||
