Quick Details
-
Model Number:
-
MTS 6000W
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
545*229*110MM
-
Weight:
-
10.5KG
-
Output waveform:
-
Prue Sine Wave
-
Rated power:
-
6000W
-
Peak power:
-
12000W
-
Frequency:
-
50/60 HZ
-
Input voltage:
-
DC 12V(10.4-14.8V)/24V20-28V)/48V
-
Output voltage:
-
110V/220V /230V /240V
-
USB output:
-
5V 2.1A
-
Availability power:
-
93%
-
Type-C output:
-
PD20W
-
Warranty:
-
12 Months
-
Certificate:
-
CE/ROHS/LVD KC
Quick Details
-
Output Current:
-
Load
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZSSTH/OEM
-
Model Number:
-
MTS 6000W
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
545*229*110MM
-
Weight:
-
10.5KG
-
Output waveform:
-
Prue Sine Wave
-
Rated power:
-
6000W
-
Peak power:
-
12000W
-
Frequency:
-
50/60 HZ
-
Input voltage:
-
DC 12V(10.4-14.8V)/24V20-28V)/48V
-
Output voltage:
-
110V/220V /230V /240V
-
USB output:
-
5V 2.1A
-
Availability power:
-
93%
-
Type-C output:
-
PD20W
-
Warranty:
-
12 Months
-
Certificate:
-
CE/ROHS/LVD KC
|
Model No.
|
MTS-
1000W
|
MTS-2000W
|
MTS-3000W
|
MTS-4000W
|
MTS-5000W
|
MTS-6000W
|
|||||
|
Rated Power
|
1000W
|
2000W
|
3000W
|
4000W
|
5000W
|
6000W
|
|||||
|
Peak Power
|
2000W
|
4000W
|
6000W
|
8000W
|
10000W
|
12000W
|
|||||
|
Input voltage
|
DC 12V(10.4-14.8V)/24V20-28V)/48V
|
|
|
|
|
|
|||||
|
Output voltage
|
110V/220V /230V /240V
|
|
|
|
|
|
|||||
|
Waveform
|
Pure sine wave
|
|
|
|
|
|
|||||
|
Frequency
|
50Hz /60Hz+4Hz
|
|
|
|
|
|
|||||
|
Availability power
|
90.50%
|
|
|
|
|
|
|||||
|
Type-C output
|
PD20W
|
|
|
|
|
|
|||||
|
USB output
|
5V 2.4A
|
|
|
|
|
|
|||||
|
Socket
|
One AC Socket
|
Dual AC Socket (EU, USA,Universal, Brazil socket optional )
|
|
|
|
|
|||||
|

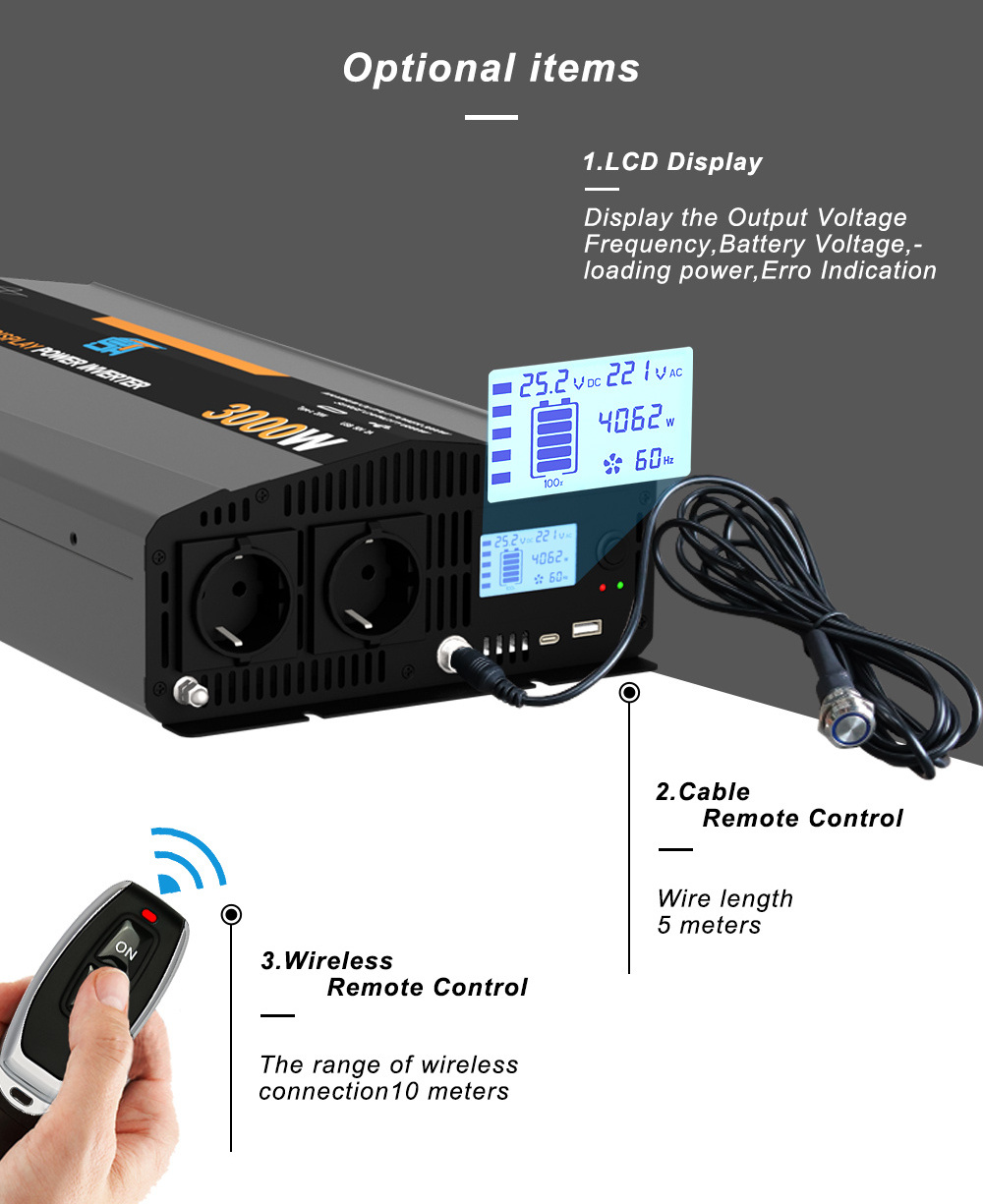

Remote control
|
3W remote line control /5iw remote control
|
|
|
|
|
|
|||||
|
Cooling fan
|
Yes
|
|
|
|
|
|
|||||
|
Low voltage alarm
|
10.5V+0.5V /20.5V+0.5V
|
|
|
|
|
|
|||||
|
Low voltage range
|
9.6V/20.5V
|
|
|
|
|
|
|||||
|
High voltage range
|
>14.8V /31V
|
|
|
|
|
|
|||||
|
Non-load current
|
5.04A
|
|
|
|
|
|
|||||
|
Overload protection
|
>1100W
|
>2100W
|
>3100W
|
>4100W
|
>5100W
|
>6100W
|
|||||
|
Overload protection
|
>1000W /2000W /3000W /4000W/ 5000W
|
|
|
|
|
|
|||||
|
Reverse protection
|
Yes
|
|
|
|
|
|
|||||
|
Short-circuit protection
|
Ves
|
|
|
|
|
|
|||||
|
Dimension
|
348*185*95MM
|
398*229*110MM
|
514.8*229*110MM
|
545*229*110MM
|
545*229*110MM
|
545*229*110MM
|
|||||
|
Warranty
|
1 Year
|
|
|
|
|
|
|||||
■
MTS series is an off grid pure sine wave inverter, which adopts microprocessor and full digital control. The output AC voltage and frequency can be flexibly adjusted through the dial switch on the rear panel.
■The application scope includes computer, communication, yacht, RV, family leisure and entertainment equipment, motors, electric tools, industrial control instruments and equipment, various types of AV appliances and other applications.
Leading the trend, brand new upgrade! We are proud to announce that the new upgraded MTS inverter is officially launched! It has ushered in eye-catching upgrades in both function and appearance, bringing you a better energy conversion experience.
MTS inverter, intelligent built-in fan cooling, brand new upgrade! No matter when and where, the intelligent fan is automatically adjusted to ensure the stable operation of the device.
High-efficiency cooling system ensures long-term use and safety. MTS inverters and smart fans provide a better experience for your energy conversion!
High-efficiency cooling system ensures long-term use and safety. MTS inverters and smart fans provide a better experience for your energy conversion!
MTS Pure Sine Wave Inverters - Customized for the world's leading sockets, thoughtful power adaptation
MTS pure sine wave inverter, for your power needs to provide the world's mainstream socket customization services, so that you can enjoy the world's intimate power adaptation, travel, enjoy unlimited power!

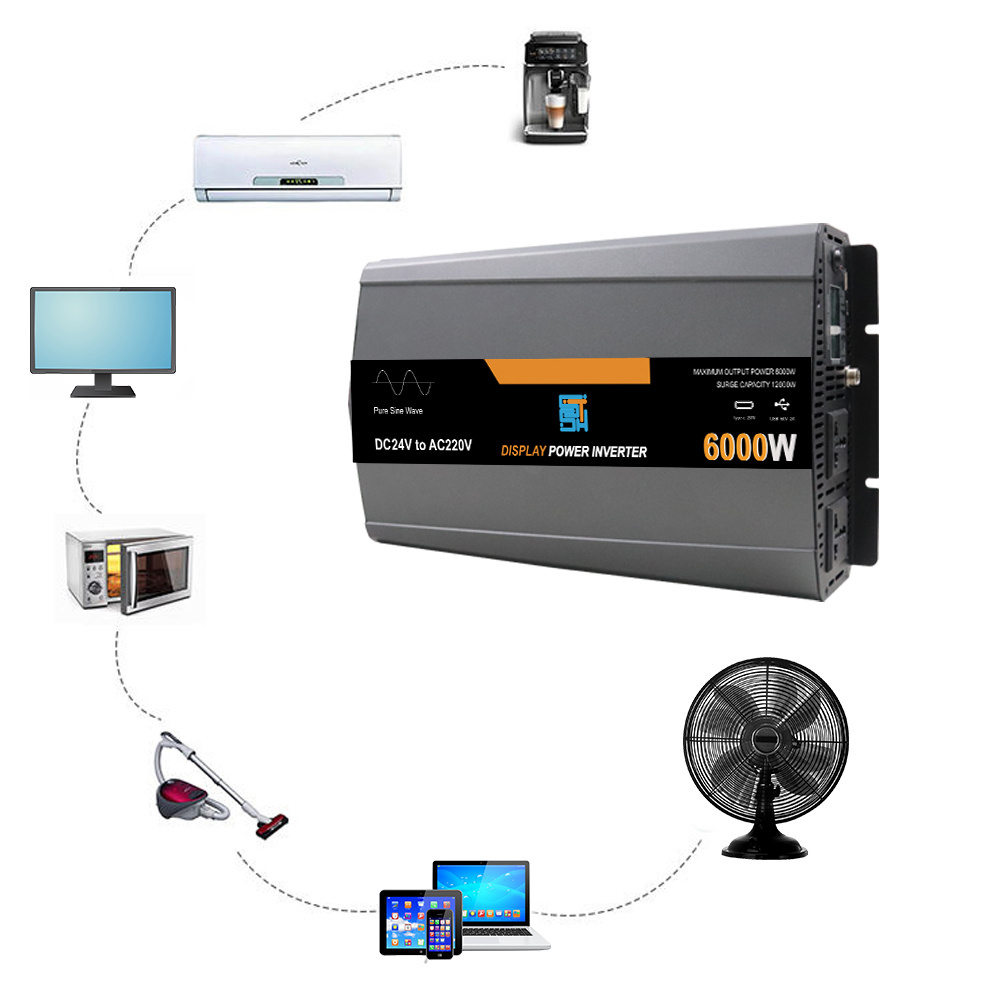

Inverter Can Be Applied To Most Home And Office Appliances, Such As Refrigerators, Air Conditioners, Notebooks; Consult Us For Additional System Architectures Based On Your Requirements
|
Rated current (Ampere)
|
Sectional area of conductor (m ㎡)
|
AWG
|
Scope of Safety Wiring
|
|
|
||
|
16A-25A
|
2.5
|
12
|
|
|
|
||
|
25A-32A
|
4
|
10
|
|
|
|
||
|
32A-40A
|
6
|
8
|
|
|
|
||
|
40A-60A
|
10
|
6
|
|
|
|
||
|
63A-80A
|
16
|
4
|
|
|
|
||
|
80A-100A
|
25
|
2
|
|
|
|
||
|
100A-125A
|
35
|
1
|
|
|
|
||
|
≧125A
|
50
|
0
|
|
|
|
||
Rated Products
Q1: I would like to test the sample, but the shipping cost is too high, how to proceed to the next step?
A1: This is just the sample order, we have already offered the best cost. It would be some kind of high on shipping, while it worth it -- checking the real quality of goods, and making sure it is the right one we need. For our bulk order, we can choose a better delivery method like sea delivery, unit shipping cost would be greatly lower. All we wish is long-time business,win-to-win.
Q2: If our client wants to use a power inverter for the lithium battery, would it be possible?
A2: Our power inverter voltage range is set according to standard Lead-acid batteries, it would be some kind of difference from the lithium battery parameter. Pls show us your exact parameter of yours, then our Engineer will specially customize them for you in our factory.
Q3:Do you accept OEM service?
A3: Yes, We support OEM/ODM service.
Q4: Can I take a sample for a test?
A4: Yes, a Sample is available for us.
Q5: How do I pay you?
A5: We accept Alibaba Insurance order, It support T/T, Credit card, Paypal, Western Union, etc method.
Q6: What kind of warranty for your product?
A6:We provides one year warranty.
Q7:What is your terms of payment?
A7: T/T 30% as deposit, and 70% balance before shipment.
Q8: What are your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU.DDP
Q9:Can you print our brand on the product?
A9: Yes, We can. The MOQ:50PCS.
Remark: For the 150w /300w inverter (Red color dc 12v to ac 110v ), We can print your logo on the product for free.
Q10: How much does the shipping cost?
A10: Can you tell me how many pcs do you need? Please also send me your shipping address and zip code. Then I check how much the shipping cost was.
