Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XMK
-
Product name:
-
Air Cooled Evaporator
-
Brand:
-
XMK
-
Material:
-
steel with powder coating
-
Color:
-
White
-
Cooling method:
-
Air Cooling
-
Fin distance:
-
6.4mm
-
Fin material:
-
Aluminun Fin
-
Tube material:
-
Copper Tube
-
Packing:
-
Carton Box / Plywood case
-
fan motor:
-
External rotary motor
Quick Details
-
Type:
-
Evaporator
-
Application:
-
Refrigeration Parts
-
Weight (KG):
-
132
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XMK
-
Product name:
-
Air Cooled Evaporator
-
Brand:
-
XMK
-
Material:
-
steel with powder coating
-
Color:
-
White
-
Cooling method:
-
Air Cooling
-
Fin distance:
-
6.4mm
-
Fin material:
-
Aluminun Fin
-
Tube material:
-
Copper Tube
-
Packing:
-
Carton Box / Plywood case
-
fan motor:
-
External rotary motor

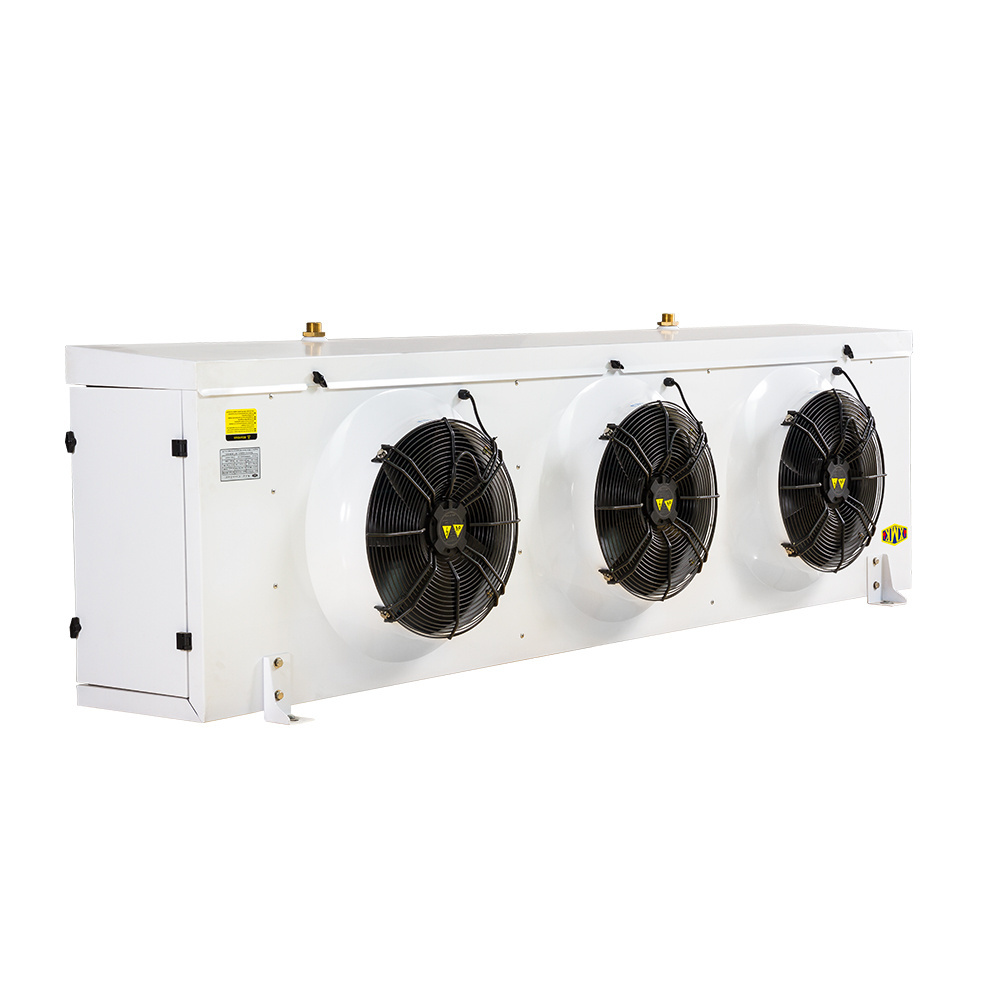

XMK 2 water plate refrigeration evaporator electric defrosting high wind pressure evaporative air coole freezer room evaporator
Product Description
Casing:
Adopt high-quality steel plate with powder coating RAL9003
Hinged structure is adopted for both side plates and external drip tray, which is convenient and quick to operate
Heat Exchanger Coil:
Copper tubingφ 12,spacing 38.1× 33 or copper tubingφ 15,spacing 50× 50
Corrugated aluminium fins,fin spacing 4.2mm and 6.4mm and 9.0mm
Fans:
External rotor motor with high wind pressure, working temperature -40~60℃
High air duct design with Integral stretching, good ventilation effect, further airthrow, lower noise
Fans individually connected to junction box
Fan bladeφ 300, φ 400, φ 500, φ 630, standard 4-pole motor
Defrosting:
Standard use of electric defrosting,stainless heating pipes installed in the middle of coil and inner water plate.
Independent electric heating tube junction box.
Hot gas defrosting or coil hot gas defrosting & water plate electric defrosting can also be used.
It can meet the requirements of R404A, R507A, R448A, R449A, R134a, R22 and other refrigerants
| Air Cooler Data 4.2mm fin spacing | |||||||||
| Model | R404A(KW) | surface | Tube | Air | Air | Connection pipe | |||
| Capacity | volume | flow | throw | (mm) | |||||
| Tc=0℃ | Tc=-18℃ | m2 | dm3 | m3/h | m | inlet | outlet | drain | |
| ΔΤ=8K | ΔΤ=7K | ||||||||
| Fan 400 | |||||||||
| CS27/140M-ET | 4.6 | 3.7 | 27 | 4.4 | 3000 | 8 | φ12 | φ22 | G1 |
| CS36/140M-ET | 5.4 | 4.3 | 35.9 | 5.9 | 2700 | 7 | φ12 | φ22 | G1 |
| CS36/240M-ET | 6.5 | 5.4 | 35.9 | 5.9 | 6400 | 13 | φ12 | φ22 | G1-1/2 |
| CS54/240M-ET | 9.2 | 7.4 | 53.9 | 8.2 | 6000 | 12 | φ16 | φ28 | G1-1/2 |
| CS72/240M-ET | 10.8 | 8.6 | 71.9 | 10.9 | 5400 | 11 | φ16 | φ28 | G1-1/2 |
| CS83/340M-ET | 14.1 | 11.3 | 82.9 | 12.3 | 9000 | 15 | φ22 | φ42 | G1-1/2 |
| CS110/340M-ET | 16.6 | 13.3 | 110.6 | 16.4 | 8100 | 13 | φ22 | φ42 | G1-1/2 |
| CS108/440M-ET | 18.3 | 14.6 | 107.8 | 15.8 | 12000 | 16 | φ22 | φ42 | G1-1/2 |
| CS144/440M-ET | 21.6 | 17.3 | 143.8 | 21.1 | 10800 | 15 | φ22 | φ42 | G1-1/2 |
| CS180/540M-ET | 27 | 21.6 | 179.7 | 26.2 | 13500 | 18 | φ28 | φ54 | G1-1/2 |
