Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1100/500/430mm
-
Weight:
-
150 kg
-
Product name:
-

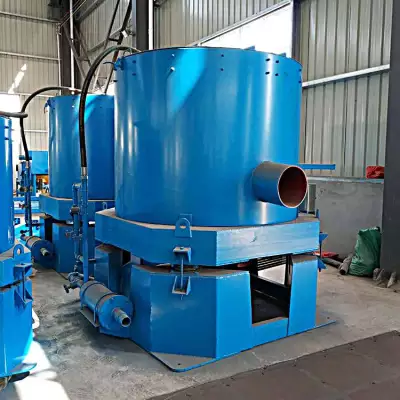

Knelson centrifugal concentrator
-
Application:
-
Gold Recovery
-
Standard feeding concentration:
-
35%
-
Installation:
-
Provide sluice box setup video&work video
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
ISO 9001:2008
-
Feeding size:
-
< 6mm
-
production capacity:
-
0.2-100 t/h
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
Henan
-
Brand Name:
-
Hengchang
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1100/500/430mm
-
Weight:
-
150 kg
-
Product name:
-
Knelson centrifugal concentrator
-
Application:
-
Gold Recovery
-
Standard feeding concentration:
-
35%
-
Installation:
-
Provide sluice box setup video&work video
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
ISO 9001:2008
-
Feeding size:
-
< 6mm
-
production capacity:
-
0.2-100 t/h
Product Description
high recovery mining equipment copper ore gold recovery centrifugal concentrator machine
The centrifugal machine gets many competitive advantages compared with other concentration machines which create high returns for the investors.
|
Model
|
D20
|
D30
|
D60
|
D80
|
D100
|
|
Capacity (T/H)
|
1-3
|
2-7
|
15-30
|
30-70
|
60-100
|
|
Feeding size (mm)
|
0-3
|
0-3
|
0-5
|
0-5
|
0-6
|
|
Feeding density
|
<50%
|
<50%
|
<50%
|
<50%
|
<50%
|
|
Fluidization water(m3/H)
|
1-2
|
4-6
|
10-20
|
20-35
|
40-60
|
|
Concentrates weight(kg)
|
2-3
|
8-15
|
30-40
|
60-70
|
70-80
|
|
Water pressure(Mpa)
|
0.06-0.1
|
0.1-0.15
|
0.1-0.2
|
0.1-0.2
|
0.1-0.2
|
|
Motor power(kw)
|
0.75
|
1.5
|
4
|
11
|
18.5
|
|
Dimension(mm)
|
800×700×980
|
1050×900×1150
|
1600×1400×1800
|
2100×1800×2100
|
2300×2000×2200
|
|
Weight(kg)
|
270
|
420
|
1600
|
2400
|
3500
|
Details Display
Quality,Life Increased 8-10 Times
Work Up to More Than 60,000 Hours, Can Be Used for 8 Years Without Worry.
Product Application
Gold, gemstones, alluvial gold, vein gold ore, tin, tungsten, lead and zinc.
Product Features
1.High recovery rate:
Through our test, the recovery rate for placer gold can be 98% or more, for rock gold, the recovery rate could reach 97% when the feeding size is below 0.04mm.
2.High efficiency:
STL60 Knelson Concentrator has a capacity of 10-20TPH, and STL100 Knelson Concentrator has a capacity of 50-80TPH. Only one machine could give you such a high capacity and high recovery rate. It's the most efficient concentration equipment in our factory.
3.Easy to install: Only a small leveled place required. It's a complete machine, before starting it, only need to connect the fluidization water and power.
4.Easy to adjust: there are only 2 factors that will affect the recovery result, they are water pressure and feeding size. By giving proper water pressure and feeding size, you could get the best recovery effect.
5.Easy to operate: After finishing the water pressure and feeding size adjust, what U have to do is to fetch the concentrates every2-4 hours. (Depending on the grade of the mine).
6.No pollution: This machine only consumes water and electric power, and exhaust tailings and water. Low noise, no chemical agent involved.
7.Reliable: This Knelson Concentrator gets a simple & tough structure, the main body is made by strong steel, and the concentrate cone is made by stainless steel. And the bearing is greased to keep it running well.
3.Easy to install: Only a small leveled place required. It's a complete machine, before starting it, only need to connect the fluidization water and power.
4.Easy to adjust: there are only 2 factors that will affect the recovery result, they are water pressure and feeding size. By giving proper water pressure and feeding size, you could get the best recovery effect.
5.Easy to operate: After finishing the water pressure and feeding size adjust, what U have to do is to fetch the concentrates every2-4 hours. (Depending on the grade of the mine).
6.No pollution: This machine only consumes water and electric power, and exhaust tailings and water. Low noise, no chemical agent involved.
7.Reliable: This Knelson Concentrator gets a simple & tough structure, the main body is made by strong steel, and the concentrate cone is made by stainless steel. And the bearing is greased to keep it running well.
Working Principle
The hollow shaft of this equipment can be driven by electrical motor transmission part through belt driving, making the rotation inner sleeve rotate in a high speed to produce centrifugal force. The slurry will be fed into the rotation inner sleeve through feeding pipe, and the slurry particle will be separated under the action of centrifugal force field.
The heavy mineral will be remained in the cell guide of rotation inner sleeve, and the light mineral will be discharged through the tailing’s launder. After one shift work and stop running, the concentrate will be discharged through the concentrate discharge outlet.
About Hengtailong
Our Services
Before-sale services
:
We guide customers to choose the best and applicable device; provide the advanced, energy-saving and practical technological processes, as well as we are responsible for the planning and design of the site.
Sale services:
Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery.
After-sale services:
Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully satisfied. Moreover, we will design and produce machines according to the special requirements of customers.
Solemn Promise:
The quality guarantee period of machines is one year except the wearing parts.
Tips:
The prices in the web only to be reference,according to raw material's price fluctuations; Specific price is subject to the negotiation.
Sale services:
Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery.
After-sale services:
Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully satisfied. Moreover, we will design and produce machines according to the special requirements of customers.
Solemn Promise:
The quality guarantee period of machines is one year except the wearing parts.
Tips:
The prices in the web only to be reference,according to raw material's price fluctuations; Specific price is subject to the negotiation.
Product Packaging
Packaging Details:
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
RFQ
Q:
Why we believe in Gongyi Hengchang company?
A: 1.More than 28 years’ experience.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q:Deliver time ?
A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q:Payment terms ?
A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign
the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q:What will you do if the machine is broken down?
A:The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if I want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q:Deliver time ?
A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q:Payment terms ?
A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign
the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q:What will you do if the machine is broken down?
A:The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if I want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
