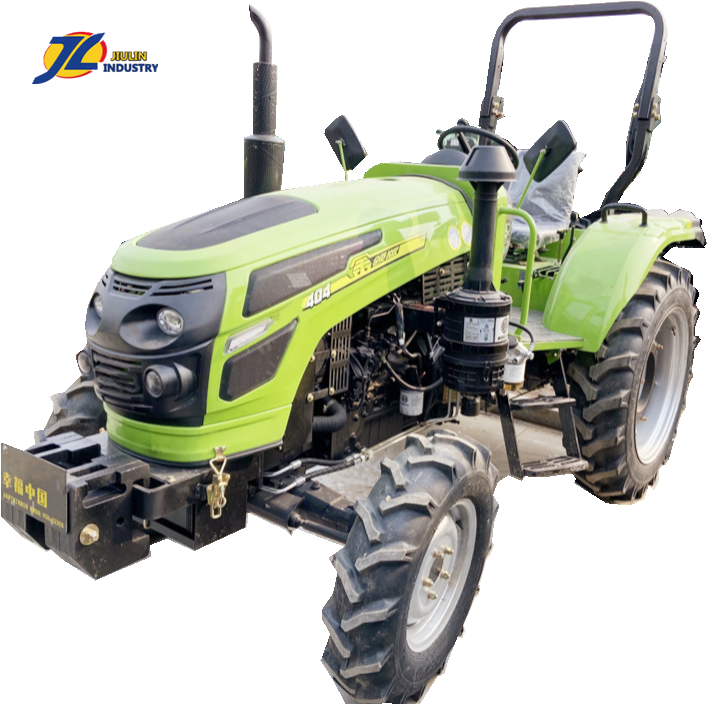

JIULIN
404
HOT SALE technical features:
1. Adopt famous 4-cylinder DIESEL ENGINE powerful, fuel-efficient and energy conservation;
2. Optional 8+8 transmission, which can realize more shifts switch, able to meet different operation speeds requirements;
3. Position mix controlled hydraulic system, OPTIONAL enlarge tractor lifting force, able to meet marching with large implements requirements;
4. OPTIONAL Air-conditioning cabin, increased manipulation comfort.
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
1510 KG
-
Color:
-
Customer Requirements
-
Transmission::
-
Two shafts 8F+2R
-
Clutch:
-
Dry-friction, single disc and single-stage
-
Engine:
-
4 Cylinder Diesel Engine
-
PTO Speed:
-
540/720
-
Steering Type:
-
Full Hydraulic power steering
-
Options:
-
heating/fan cabing
-
Tractor price:
-
CONTACT Wendy
-
More implements:
-
CONTACT Wendy
Quick Details
-
Brand Name:
-
JIULIN
-
Place of Origin:
-
Shandong, China
-
Engine Brand:
-
Dongfanghong, Yuchai, Weichai, Laidong
-
Weight:
-
1510 KG
-
Color:
-
Customer Requirements
-
Transmission::
-
Two shafts 8F+2R
-
Clutch:
-
Dry-friction, single disc and single-stage
-
Engine:
-
4 Cylinder Diesel Engine
-
PTO Speed:
-
540/720
-
Steering Type:
-
Full Hydraulic power steering
-
Options:
-
heating/fan cabing
-
Tractor price:
-
CONTACT Wendy
-
More implements:
-
CONTACT Wendy
HOT SALE technical features:
After sales service polices .
1.
JIULIN tractor is offered 14 months of warranty period of the tractor, which start from the 3 month as the shipment date.
2. JIULIN will offer free service parts in warranty period, and there is no charge of related work hours and indirect expenses.
3. Service training
There are over 80 dealers and service channels covering all the market area. We take " satisfy the customers" as our target, provide "3 full" (Full course, Full time, Full hearted) service
.
Work Shop.
|
Main parameters
|
|
|
|
Type
|
404
|
|
|
Drive type
|
4×4 four-wheel drive
|
|
|
Engine
|
|
|
|
Engine Brand
|
LD
|
|
|
Engine Type
|
4L23BT
4 cylinder, water-cooling, In-line, Direct Injection |
|
|
Fuel tank capacity L
|
35
|
|
|
Rating power of engine KW/RPM
|
29.4/2400
|
|
|
Fuel consumption @ nominal power (g/kw.h)
|
contact Wendy
|
|
|
Air Intake Type
|
Naturally Aspirated
|
|
|
Displacement L
|
contact Wendy
|
|
|
Air filter type/size
|
oil bath or dry
|
|
|
Torque reserve
|
contact Wendy
|
|
|
Transmission system
|
|
|
|
Clutch type/size
|
One-piece,dry,double-action
|
|
|
No. of gears (F+R)
|
8F+2R/8F+8R
|
|
|
Shift method
|
mechanical sliding sleeve
|
|
|
Max. speed
|
contact Wendy
|
|
|
Gear position
|
central /side position
|
|
|
Hydraulic system
|
|
|
|
Hydraulic output flow rate (L / MIN)
|
contact Wendy
|
|
|
Hydraulic output valve
|
1/2
|
|
|
Hydraulic filter types and capacity
|
contact Wendy
|
|
|
Working device
|
|
|
|
Three-point-linkage
|
Three-point suspension type 1
|
|
|
PTO Speed
|
540/760
|
|
|
Lifting Capacity (kn)
|
Maximum lifting force at 610mm(KN)
≥8 |
|
|
Tillage depth adjustment
|
position,float,draft,draft mix control
|
|
|
Parameter
|
|
|
|
The whole machine size (dimensions) mm
|
3350×1500 ×2130
|
|
|
Min. operation mass
|
1600
|
|
|
Wheel base (mm)
|
1800
|
|
|
Mini turning Radius (m)
|
Unilateral braking 2.3 m
Not Unilateral braking 3m |
|
|
Rated traction force(KN)
|
≥9
|
|
|
Minimum ground clearance (mm)
|
360
|
|
|
Air conditioning cab
|
Optional
|
|
|
Front/rear wheel tread
|
common1200
|
|
|
tyre size
|
6.0-16/9.5-24
6.5-16/11.2-24 |
|
|
Braking and steering
|
|
|
|
Braking system
|
hydrostaticpedal control,disc brake,
|
|
|
Steering type
|
hydraulic steering
|
|
|
Steering Angle (4 x4)
|
Front axle Max.Steering angle 45°
|
|
|
(options: all these types can Optional for swing drawbar, front/rear ballast,for more contact WENDY)
This parameter table is for reference only, everything is based on actual products |
|
|
Product Highlights
1.Factory with 20 years experience ensure the products quality.
2.14 months warranty period.
3.For easy-damage parts, we will send you together with the tractor for free.
4.During warranty period, free spare parts for quality-problem spare parts replacement.
5.Multi-selection of configuration.
1.Factory with 20 years experience ensure the products quality.
2.14 months warranty period.
3.For easy-damage parts, we will send you together with the tractor for free.
4.During warranty period, free spare parts for quality-problem spare parts replacement.
5.Multi-selection of configuration.
Delivery
Company profile
JIULIN INDUSTRY is one of the largest professional mechanical industry manufacturer in China, which located in Shandong Province China, the leading products include Tractor & Implements, Excavator and Spare Parts, Micro Cultivator & Forestry machinery, Automobile battery & Vehicle Spare Parts and other products.
JIULIN INDUSTRY has 23 years manufacturing experience, 10 years export experience, covering an area of 100,000 square meters, has 770 stuffs including more than 100 senior engineers and engineering technicians, with advanced parts and equipment of leading Assembly line in china. It's annual production capacity is 50,000 sets tractors and excavators, 20,000 units farm implements and 12,000MT earth-moving spare parts. Perennial products are exported to more than 100 countries in the world.
JIULIN INDUSTRY has a perfect after-sales service system. We have sales agents in many countries, there are over 460 dealers and service channels covering all the market area. We take "satisfy the customers" as our target, provide "3 Full" (Full course, Full time, Full hearted) service. Our products are widely recognized and trusted by users, we welcome new and old customers all over the world to contact us for future business relationships and mutual success.
JIULIN INDUSTRY has 23 years manufacturing experience, 10 years export experience, covering an area of 100,000 square meters, has 770 stuffs including more than 100 senior engineers and engineering technicians, with advanced parts and equipment of leading Assembly line in china. It's annual production capacity is 50,000 sets tractors and excavators, 20,000 units farm implements and 12,000MT earth-moving spare parts. Perennial products are exported to more than 100 countries in the world.
JIULIN INDUSTRY has a perfect after-sales service system. We have sales agents in many countries, there are over 460 dealers and service channels covering all the market area. We take "satisfy the customers" as our target, provide "3 Full" (Full course, Full time, Full hearted) service. Our products are widely recognized and trusted by users, we welcome new and old customers all over the world to contact us for future business relationships and mutual success.
