Quick Details
-
Power (kW):
-
2.2
-
Weight (KG):
-
560 KG
-
After-sales Service Provided:
-
Free spare parts
-
Nail Making Machine Dia. of Nail:
-
1.2-6.0 mm
-
Nail Making Machine Length of Nail:
-
0.4-7.0 inch
-
Nail Making Machine Capacity:
-
150-380 pcs/min.
-
Nail Making Machine Power:
-
2.2-11 kw
-
Nail Making Machine Weight:
-
1200-6500 kg
-
Raw material:
-
Low Carbon Steel Wire
-
Certification:
-
CE
-
Color:
-
Customized Color
-
Spare parts:
-
provided
Quick Details
-
Production Capacity:
-
150-380 pcs/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CANDID nail making machine
-
Power (kW):
-
2.2
-
Weight (KG):
-
560 KG
-
After-sales Service Provided:
-
Free spare parts
-
Nail Making Machine Dia. of Nail:
-
1.2-6.0 mm
-
Nail Making Machine Length of Nail:
-
0.4-7.0 inch
-
Nail Making Machine Capacity:
-
150-380 pcs/min.
-
Nail Making Machine Power:
-
2.2-11 kw
-
Nail Making Machine Weight:
-
1200-6500 kg
-
Raw material:
-
Low Carbon Steel Wire
-
Certification:
-
CE
-
Color:
-
Customized Color
-
Spare parts:
-
provided
Nail Making Machine Factory
Machine introduce

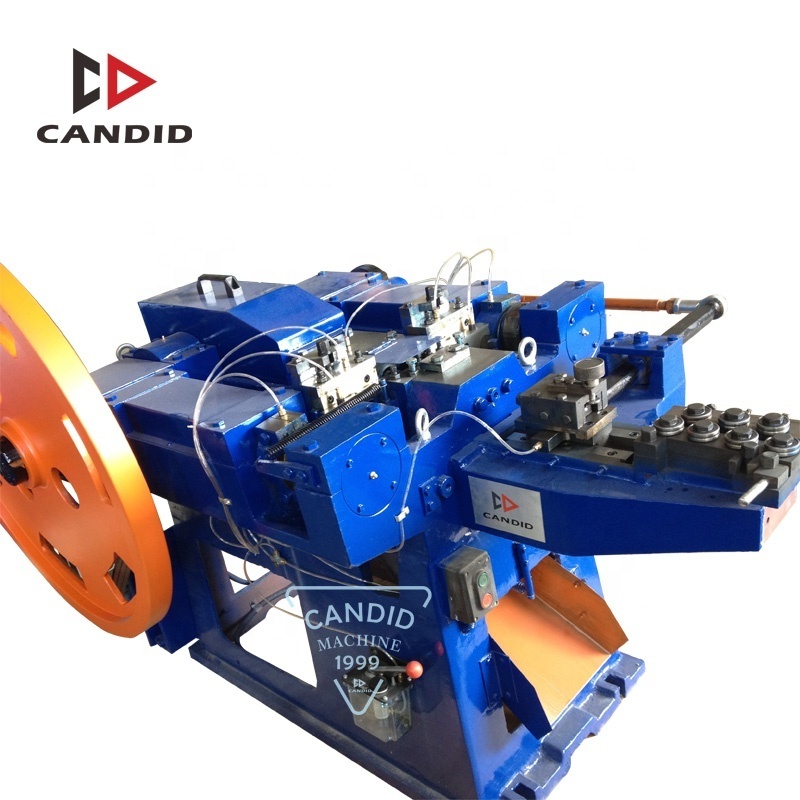

The new generation of Z94 series high efficient, low noise with super performance automatic nail
making machine is mainly used for manufacturing steel nails
. T
he machine is also able to manufacture other steel nails with special specifications, such as double-cap nail, felt nail, V-nail,
corrugated
plate nail, U-nail, injecting-nail, gun nail and etc. after little reformation
.
The manufactured nails can be extensively used in industry, building,
repairing
and etc.
Nail Length: 9-180mm
Nail Diameter: 0.9-6.0mm
This machine adopts plunger type stricture so as to ensure the features such as high
Speed, low noise and less impact. Especially, it can make the high quality of oil rivet nail, roofing nails, U nails and double-head nails .
Each model machine could make different kinds size nail, the nail length could adjust on machine and Nail diameter need feed with related diameter coil wire.
Each nail making machine supply related nail mould, nail knife and punch pin ect spare parts
|
Model
Item |
Z94-1.6NC |
Z94-2.8NC |
Z94-3.4NC |
Z94-4.5NC |
Z94-5NC |
Z94-6NB |
|
Range of nail Dia. |
0.9-1.6mm |
1.2-2.8mm |
1.8-3.4mm |
2.8-4.5mm |
3.0-5.5mm |
4.1-6.0mm |
|
Range of nail Length |
9-25mm |
16-50mm |
30-70mm |
50-105mm |
70-150mm |
100-180mm |
|
Output |
450pcs/min |
350pcs/min |
310 pcs/min |
260pcs/min |
200pcs/min |
160pcs/min |
|
Motor power |
1.5kw |
2.2kw |
3kw |
4kw |
5.5kw |
11kw |
|
Weight |
500kg |
900 kg |
1200kg |
1800 kg |
2000kg |
6500kg |
|
Dimension(mm) |
1200*900*900 |
1700*1200*1200 |
2000*1250*1250 |
2350*1500*1350 |
2700*1500*1400 |
3600*2050*2140 |
Product Show
Exported to Algeria 4 sets in 2014
Export to Nigeria 8 sets in 2018
Export to Salvador 4 sets in 2018
Ex port to Coate d'Ivoire 2 sets in 201 9
We choose the best domestic delivery and handle goods carefully, using necessary protections to keep the machines away from unexpected damages. We ensure that clients will get their satisfying machines.
1. Guarantee : 12 months after commissioning.
2. Installation : Engineers available to service machinery overseas.
Wherever you are, CANDID has the experience, knowledge, and skills to meet your needs and satisfy your requirements.
