Quick Details
-
Model Number:
-
KYK0730GF
-
Brand Name:
-
Keyukang
-
Standard or Nonstandard:
-
Standard
-
Rated voltage:
-
DC12.0V/DC24.0V
-
Life test:
-
200000 Times ( 12s on and 5s off )
-
color:
-
White and gray
-
Used fluid:
-
Air
-
Certificate:
-
CE,ROHS
-
Price:
-
Factory price
-
Product name:
-
Mini Solenoid Valve
-
Type:
-
Normally closed
-
Weight:
-
53
Quick Details
-
Port Size:
-
6.5mm
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
KYK0730GF
-
Brand Name:
-
Keyukang
-
Standard or Nonstandard:
-
Standard
-
Rated voltage:
-
DC12.0V/DC24.0V
-
Life test:
-
200000 Times ( 12s on and 5s off )
-
color:
-
White and gray
-
Used fluid:
-
Air
-
Certificate:
-
CE,ROHS
-
Price:
-
Factory price
-
Product name:
-
Mini Solenoid Valve
-
Type:
-
Normally closed
-
Weight:
-
53

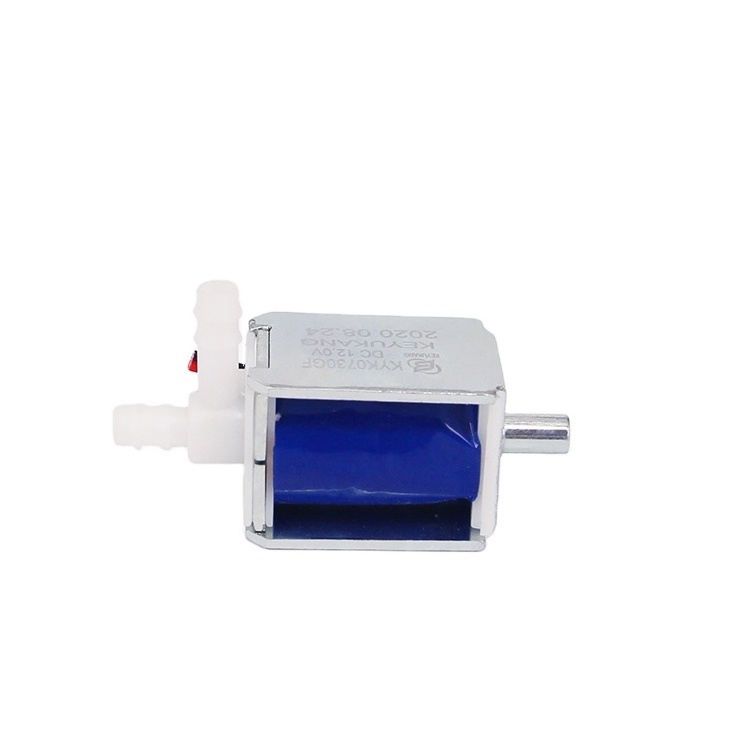

Miniature Solenoid Valve
----------- { KYK
0730GF
}
-----------
Factory direct sales
/
quality assurance/stable operation/light sound operation/easy installation
。。
。
。。
Product parameters
++++
KYK0730GF
（
Miniature Solenoid Valve
）
|
Rated voltage
|
DC12.0V
|
DC6. 0V
|
DC24.0V
|
DC24. 0V
|
||
|
Rated current
|
200mA±10%
|
<450mA
|
96mA±10%
|
<150mA
|
||
|
Rated resistance
|
60Ω±10%
|
>2.8ml./min
|
250Ω±10%
|
||
|
Exhaust time
|
Max.30seconds from300mmHg reduce to 15mmHg at 100CC tank
|
<450mA
|
<300mA
|
||
|
Airtightness
|
Max.3mmHg from 300mmHg at 100CC tank
|
<55dB
|
<50dB
|
||
|
Insulation Grade
|
A
|
|
Used fluid
|
Air
|
|
Use environment
|
0~50℃ 75%RH
|
|
Working mode
|
Normally closed
|
|
Life test
|
200000 Times ( 12s on and 5s off )
|
|
Weight
|
53g
|
Specification engineering drawing
Product details
++++
Maintenance-free
Good food grade rubber material, high
purity, good wear resistance, long life,
maintenance free
Less heat and less noise
High quality motor, strong and durable, less heating noise, surface increase is not easy to corrosion process, ease of use
OEM/ODM
Can be customized according to customer demand
processing of all kinds of pumps, valves to meet the
needs of all walks of life
Professional customization
According to customer needs for one to one customization, can provide style, pictures, targeted
design drawings
Good quality comes fromgood materials
++++
High quality material
Using high quality raw materials, the use of
more assured to meet the quality requirements,
the product is more durable.
Precision bearing
High precision, high life and low noise bearings, high temperature resistance, corrosion resistance
and stable operation.
All copper batteries
Our products use full copper core, low resistance, energy saving, high strength, stable output, long
service life.
Professional custom
Source factory, professional customization, to meet the different needs of customers, OUR factory has strict system and professional talents, there is enough development ability.
Running stability
Adopt excellent material and strict production standard
.
.
.
All copper motor
power is strong
Guangdong KYK Technology Co., Ltd .
.
.
.
Long life/fast speed/low power consumption
Professional custom
Micro air pump
Professional manufacturer
.
.
.
What you buy is not just a product, it is a guarantee.
Range of application
Suitable for a variety of products
.
.
.
Widely used in medical and health, scientific research, laboratory, environmental protection, instrumentation,
chemical industry, beauty, small household appliances and other industries
Eye massager
Hydrogen and oxygen bubbles
Oxygen generator
Medical apparatus and instruments
Beauty equipment
Breast pump
Company introduction
++++
Guangdong KYK Technology Co., Ltd
.is a high-tech enterprise engaged in the design, development, production and
sales of solenoid air valves, water valves and electromagnets for miniature air pumps. The company was founded in
2011.we are a precision pump and precision solenoid valve manufacturer which has already gotten China National Hi-tech certification. We professionally develop mini-size air pump, vacuum pump, water pump, electromagnetic pump, mini solenoid valve, coils etc. which application in electro sphygmomanometer, medical monitor, coffee machine, breast pump, massage machine, Analyzer, drink machine, automotive electronic and automation equipment etc.,
Our team has over 10 years product R&D and management experience, we had obtained many important patent in pump & valve design and manufacturing technology. We take Quality first, and all our products meet ROHS and REACH regulation.
"Focus, Striving of excellence" is our core value, "professional, innovative, flexible, eco-friendly to build
the world top manufacturer" is our management statement. We will consistently provide the best quality
products and service to our customers.
The Company is based on a high
reputation based and has a
group of experienced management
and marketing staff and research teams
The company has strong technical force,
complete equipment, with a complete and
strict quality management system
Our company takes the leading technology, advanced research, perfect service as support, constantly improve the of product quality with the spirit of innovation and the attitude of excellence. Base on the people-oriented, Integrity first management, the company is a becoming customers the most reliable and creative enterprise.
Q:What about lead time??
A:It takes 3-5 days for samples, 1-2 weeks for mass production, and about 20-25 T days for batch production.
Q:I would like to ask you if it's possible to have my logo on the product.
A:We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed.
Q: Why should you buy from us not from other suppliers?
A: 1. Strong technical force, superb technology
2. Quality is our culture and develop high-tech products, with a variety of self-help patents.
3. Adhering to the "people-oriented, innovative" management philosophy to customer focus.
Q: What can you buy from us?
A: Main business: Mini Vacuum Pump, Mini Water pump, Micro Air pump, Dc Electromagnet, Mini Vacuum pump, Mini Air pump, Micro Air pump, Dc electromagnet, piston valve, has rich custom processing experience, also can customize all kinds of pumps, valves as required
Q: Which product will applied to?
A: Used in Small home appliances, medical massage equipment, medicine nebulizer, Dilatancy machine, memory pillow, breathing machine, display cabinets, aquariums, tourniquet, sphygmomanometer, gynecological treatment apparatus, enema machines and other rehabilitation therapy devices and other products.
Q:
What is the service life of the pump
?
A: According to customer requirements,our company provides 600 ~ 1000 hours standard and 1000 ~ 1500 hours non-standard pump. For beauty equipment and medical products are guaranteed for one year.
