Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1200 mm
-
Travel (Y Axis)(mm):
-
1200 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
4.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
tianjiao
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
3.6*2.2*2.2m
-
Power (kW):
-
9
-
Weight (KG):
-
2200
-
Name:
-
Professional Cnc Woodworking Router Machine
-
Application:
-
Cutting acrylic,aluminum
-
Working area:
-
1200x1200mm*2
-
Control system:
-
Syntec
-
Spindle:
-
ATC 9kw Air Cooling Spindle
-
Driving system:
-
YASKAWA Servo System
-
Transmission:
-
Ball Screw
-
Inverter:
-
Delta Inverter
-
Table structure:
-
Vacuum Suction
-
Guide rail:
-
Taiwan PMI Square Guide Rail
Quick Details
-
Working Table Size(mm):
-
1200×1200
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
4000 - 28000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1200 mm
-
Travel (Y Axis)(mm):
-
1200 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
4.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
tianjiao
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
3.6*2.2*2.2m
-
Power (kW):
-
9
-
Weight (KG):
-
2200
-
Name:
-
Professional Cnc Woodworking Router Machine
-
Application:
-
Cutting acrylic,aluminum
-
Working area:
-
1200x1200mm*2
-
Control system:
-
Syntec
-
Spindle:
-
ATC 9kw Air Cooling Spindle
-
Driving system:
-
YASKAWA Servo System
-
Transmission:
-
Ball Screw
-
Inverter:
-
Delta Inverter
-
Table structure:
-
Vacuum Suction
-
Guide rail:
-
Taiwan PMI Square Guide Rail
Hot sale high precision table moving cnc router metal cutting machine for cutting aluminum

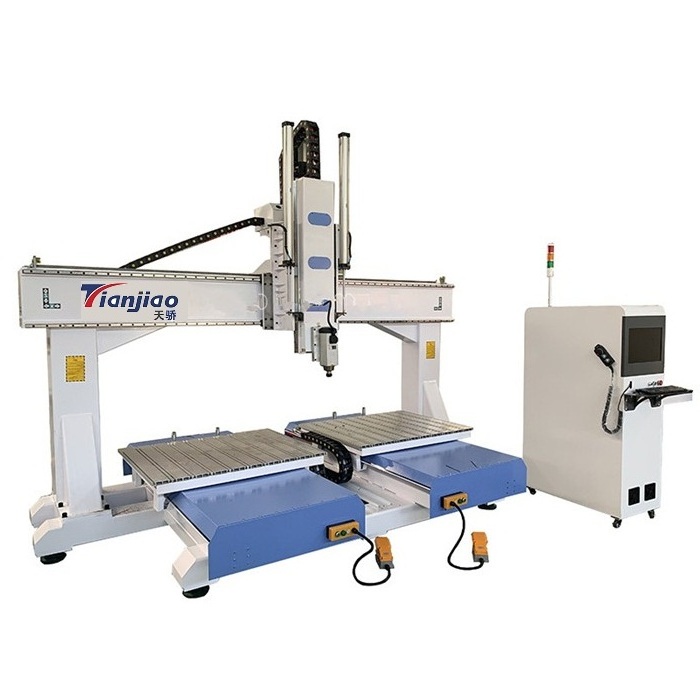

1.Picture
2.Application
This machine is widely used in making
Mini-word. Hypotenuse word processing
Acrylic lettering sign making industries and aluminum products industry
Plastic and solid wood processing industry
3.Paramter
|
NO. |
Description |
Parameter |
|
1 |
Working area(XY) |
1200x1200mmx2 |
|
2 |
Z travel height |
260mm |
|
3 |
Positional accuracy |
±0.04/300mm |
|
4 |
Spindle power |
Italy HSD 9KW air cooling ATC spindle |
|
5 |
NO. of revolution |
24000rpm/min |
|
6 |
X.Y.Z axis rail |
Taiwan HIWIN guiding rail 30 |
|
7 |
Motor and drive |
Japan YASKAWA servo motors and drives |
|
8 |
Inverter |
TAIWAN DELTA inverter |
|
9 |
Max Cutting Speed |
30000mm/min |
|
10 |
Controller |
NC Studio NK280(TAIWAN SYNTEC optional) |
|
12 |
Software compatibility |
Type 3 or Artcam |
|
13 |
Table |
Moving table with vacuum |
|
14 |
Vacuum pump |
TAIWAN 5.5KW rotary vane vacuum pump |
|
15 |
Transmission |
X.Y.Z axis ball screw, gantry moving |
|
16 |
Lubricate |
Self-lubrication system |
|
17 |
Format |
G code HPGL |
|
18 |
Tool change type |
Rotary type knife library |
|
19 |
Tool magazine motor |
MIGE servo motors and drives |
|
20 |
Magazine capacity |
8 positions ATC |
|
21 |
Diameter of cutter |
3.175-12.7mm |
|
22 |
Working voltage |
AC380V, 3PH/50HZ |
|
23 |
Lathe structure |
Seamless welded steel structure |
|
24 |
Weight |
2300KG |
4. Features
1).This is a strength type of machining center. It adopt linear type tool mafazine
with 8 bits, and the tool change only need 10 seconds.
2). Function extensive; such as carving and milling, cutting, side milling etc.
This machine can be suitable for processing diversified and compound products.
3). The machine adopt imported 9KW ATC spindle, Japan Yaskawa servo motor
and drive system. Schneider electric components, Delta inverter and some other
imported or joint venture machine parts. Stable performance and low failure rate.
4). Vacuum table. It’s very convenient to loading and unloading of workpiece,.
5). Table moving, make sure stable moving, high precision, and cutting surface
more smooth
5. Details
6. Samples
Inside Packing
- Use professional Stretch Film to cover the whole lathe
- Stretch film package with foam protection in each corner.
Outside Packing
- Sandard export wooden cases and pylwood cases
- Save space as much as possible for container loading.
Transport
- We support shipping, air, land and express
- You can choose the most suitable way of transport
Before sale
- Patient introduce and professional suggest buying selection
- Real time report production situation
- Take pictures and make videoes with your done machine
- Strict test and debugg machine quality before shipping
After sale
- 24 hours on line service and phone on
- 2 years gurantee term
- During gurantee term, repair or change damaged parts for free
- Exceed gurantee term, offer at cost price
