Name:Grizzly Hopper Feeder
Size (mm):2000*2000
Grizzly screen space:150mm or as required
Grizzly material:Railway tracks
Remark:Water spray pipes along hopper sides
Function:To feed the materials evenly to the scrubber and trommel
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V/415V/440V / (can be customized)
-
Dimension(L*W*H):
-
800~200mm can be customized), 7000*2000*3000 mm (can be customized)
-
Weight:
-
2000 KG
-
Product capacity(t/h):
-
98%, 5-150 tons per hour(can be customized)
-
Product model:
-
GTS600/800/1000/1200/1500/2000/2500
-
Product application:
-
For placer/alluvial gold washing
-
Coarse gold recovery system:
-
Hydraulic vibrating sluice + sluice box
-
Gold refinery system:
-
Shaker tabele + amlagamator + furnace
-
Impeller rotation speed:
-
43 r.p. m (can be customized)
-
Main Material:
-
High hardness carbon Steel
-
Mesh material:
-
High manganese steel wire
-
Feeder hopper:
-
3000x2200mm (can be customized)
Quick Details
-
Production Capacity:
-
98%, 5-150 tons per hour
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hengchang
-
Voltage:
-
380V/415V/440V / (can be customized)
-
Dimension(L*W*H):
-
800~200mm can be customized), 7000*2000*3000 mm (can be customized)
-
Weight:
-
2000 KG
-
Product capacity(t/h):
-
98%, 5-150 tons per hour(can be customized)
-
Product model:
-
GTS600/800/1000/1200/1500/2000/2500
-
Product application:
-
For placer/alluvial gold washing
-
Coarse gold recovery system:
-
Hydraulic vibrating sluice + sluice box
-
Gold refinery system:
-
Shaker tabele + amlagamator + furnace
-
Impeller rotation speed:
-
43 r.p. m (can be customized)
-
Main Material:
-
High hardness carbon Steel
-
Mesh material:
-
High manganese steel wire
-
Feeder hopper:
-
3000x2200mm (can be customized)
Products Description
widely used small mini portable mobile alluvial iron ore gold mining diamonds rotary drum trommel washing machine for sale

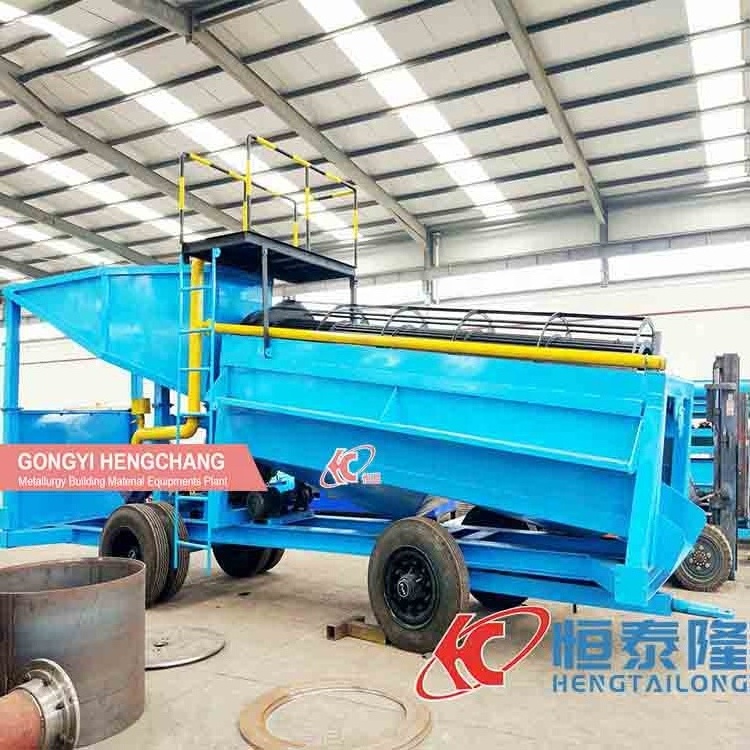

Mobile trommel screen is designed for alluvial/placer gold ore processing, it's consist of a half covered trommel screen, one diesel engine/ electric motor, water pump& water pipes, and other facilities such as the feeding hoper and the mobile system. This mobile trommel machine normally works together with sluice box , gold centrifugal concentrator and shaking table to form a complete ore concentration plant.
● It has been widely used for alluvial gold, placer gold, tantalite, niobite, and tin ore concentration.
● It is very popular in Africa, Asia, South America due to its easy to move and easy operation, low cost.
|
SPECIFICATION OF ALLUVIAL GOLD MINING MACHINE TROMMEL WASH PLANT
|
|
|
|
|||
|
Model
|
Hengchang - 50
|
Hengchang -150
|
Hengchang -400
|
|||
|
Size
|
7*2*3m
|
9.8*3*4m
|
15*3.5*5m
|
|||
|
Capacity
|
50-100 tph
|
150-250 tph
|
400-450 tph
|
|||
|
Power
|
24kw
|
75kw
|
200kw
|
|||
|
Feeder Hopper
|
2*2.2m
|
3.8*3m
|
6*4m
|
|||
|
Sluice box
|
1*2m (2pcs)
|
1*6m (3pcs)
|
1*6m (7pcs)
|
|||
|
Water power
|
7.5kw
|
45kw
|
150kw
|
|||
|
Clay Scrubber
|
1*2m
|
1.3*2.5m
|
2*2.5m
|
|||
|
Trommel Screen
|
1.2*3m
|
2*4m
|
2*7m
|
|||
|
Recovery Rate
|
98%
|
98%
|
98%
|
|||
Product Application
1.The quarry is used for classification of large and small stones and separation of soil and stone powder.
2.It is separated from sand and stone in sand and stone field.
3.The coal industry is used for the separation of lump coal and pulverized coal and coal washing (part of coal washing machine).
4.The chemical industry and mineral processing industry are used for the classification of large and small lumps and the separation of powdery substances.
3.The coal industry is used for the separation of lump coal and pulverized coal and coal washing (part of coal washing machine).
4.The chemical industry and mineral processing industry are used for the classification of large and small lumps and the separation of powdery substances.
Madagascar
Surinam
Nigeria
Technical Details
Feeding System
Clay Processing System
Size (mm):φ1200*3000 or according to processing capacity
Remark:With inside water spray pipes
Function:To break off hard clays to increase gold recovery
Screening System
Name:Gold Trommel Screen
Size (mm):φ1500*3500 or according to processing capacity
Remark:2 layer trommel screen
Function:For washing, screening and separating the minerals
Water spray pipes:On both sides of the trommel
Mesh size:12mm and 6mm or according to clients requirement
Size (mm):φ1500*3500 or according to processing capacity
Remark:2 layer trommel screen
Function:For washing, screening and separating the minerals
Water spray pipes:On both sides of the trommel
Mesh size:12mm and 6mm or according to clients requirement
Coarse Gold Recovery System
Name:Vibrating Sluice + sluice box
Vibrating sluice type:Hydraulic type
Size:1m*6m
Sluice box carpet:Mitsubishi brand, imported from Japan
Function:For coarse gold recovery
Recovery rate: 99%
Vibrating sluice type:Hydraulic type
Size:1m*6m
Sluice box carpet:Mitsubishi brand, imported from Japan
Function:For coarse gold recovery
Recovery rate: 99%
Fine Size Gold Recovery System
Name:Knelson type centrifugal concentrator
Processing capacity:15tph-60tph dry solids
Quantity:2-4 pcs
Remark:Fully continuous type
Function:For fine size dust gold recovery (-6mm)
Recovery Rate:99%
Processing capacity:15tph-60tph dry solids
Quantity:2-4 pcs
Remark:Fully continuous type
Function:For fine size dust gold recovery (-6mm)
Recovery Rate:99%
Slurry pump
Quantity:1-3 pcs
Water flow:120-400m³ per hour
Function:For supplying water to the wash plant
Powering system
Power:100Kw-350Kw
Brand:Cummins, Weichai, or as required
Function:Supplying power to all the systems
Gold Shaker Table
Power:2.2Kw
Function:To further process the concentrates from the sluice and/or concentrators
Mercury Amalgamator
Type:V-shaped
Working mode:Amalgamator + distiller retort
Function:With the help of Mercury, to extract all the gold out from the concentrates that recovered by the sluice and concentrators.
Recovery rate:100%
Working mode:Amalgamator + distiller retort
Function:With the help of Mercury, to extract all the gold out from the concentrates that recovered by the sluice and concentrators.
Recovery rate:100%
Gold Smelting Furnace
Moulds:100g; 200g; 500g; 1000g
Function:To smelting the gold sand and make into final product of gold bars
Working Principle
Using excavator to feed raw material to the hopper ,then, they flow into double trommel , big stones and pebble can be separated and flow outside of the equipment, mineral aggregate with gold whose diameter is less than 6mm can enter into the beneficiation
sluice through inner trammel screen,there is a fixed and high extraction ratio gold felt sluice in one side of the beneficiation sluice to extract gold particle. The machine is equipped with big flow capacity and big head water pump, can supply high pressure
water for hopper, trammel, the mineral aggregate with gold will flow through the gold felt in the effect of self weight and waterpower ,lighter mud or sand will be washed away and big specific gravity gold is left on the gold felt.
sluice through inner trammel screen,there is a fixed and high extraction ratio gold felt sluice in one side of the beneficiation sluice to extract gold particle. The machine is equipped with big flow capacity and big head water pump, can supply high pressure
water for hopper, trammel, the mineral aggregate with gold will flow through the gold felt in the effect of self weight and waterpower ,lighter mud or sand will be washed away and big specific gravity gold is left on the gold felt.
