Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3600mm*1370mm*6720mm
-
Power (kW):
-
11KW+22KW
-
Weight (KG):
-
35000 kg
-
Product name:
-
Hot press machine
-
Color:
-
Customer's Requirement
-
Working methods:
-
Touch Screen Automatic
-
Control system:
-
PLC
-
Steel material:
-
Q235 Q345
-
Layers:
-
1~25layer
-
Finished products:
-
4*8 Feet Plywood
-
After-sales Service Provided:
-
Engineers
-
Cylinder brand:
-
Wuxi
-
Thickness of the frame:
-
Assembled
Quick Details
-
Place of Origin:
-
Shandong, China
-
Type:
-
hot press machine
-
Brand Name:
-
Shining
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3600mm*1370mm*6720mm
-
Power (kW):
-
11KW+22KW
-
Weight (KG):
-
35000 kg
-
Product name:
-
Hot press machine
-
Color:
-
Customer's Requirement
-
Working methods:
-
Touch Screen Automatic
-
Control system:
-
PLC
-
Steel material:
-
Q235 Q345
-
Layers:
-
1~25layer
-
Finished products:
-
4*8 Feet Plywood
-
After-sales Service Provided:
-
Engineers
-
Cylinder brand:
-
Wuxi
-
Thickness of the frame:
-
Assembled
Original manufacturer of plywood making machines for more than 29 years
1.29 years experieced plywood machine manufacturer with strong quality control system and team.
2.one year warranty period.
3.The spare parts easy damaged parts and wearable parts will be shipped with machines
4.Free spare parts and service will be provide in the warranty period.
5.OEM,ODM And Customization is accepted.
1) Almost all kinds of plywood machines are available here.
2) online technical and engineers support.
3) Promise to offer you the super quality products with best price and service.
4) Factory direct selling price.
1.29 years experieced plywood machine manufacturer with strong quality control system and team.
2.one year warranty period.
3.The spare parts easy damaged parts and wearable parts will be shipped with machines
4.Free spare parts and service will be provide in the warranty period.
5.OEM,ODM And Customization is accepted.
1) Almost all kinds of plywood machines are available here.
2) online technical and engineers support.
3) Promise to offer you the super quality products with best price and service.
4) Factory direct selling price.
Specification
|

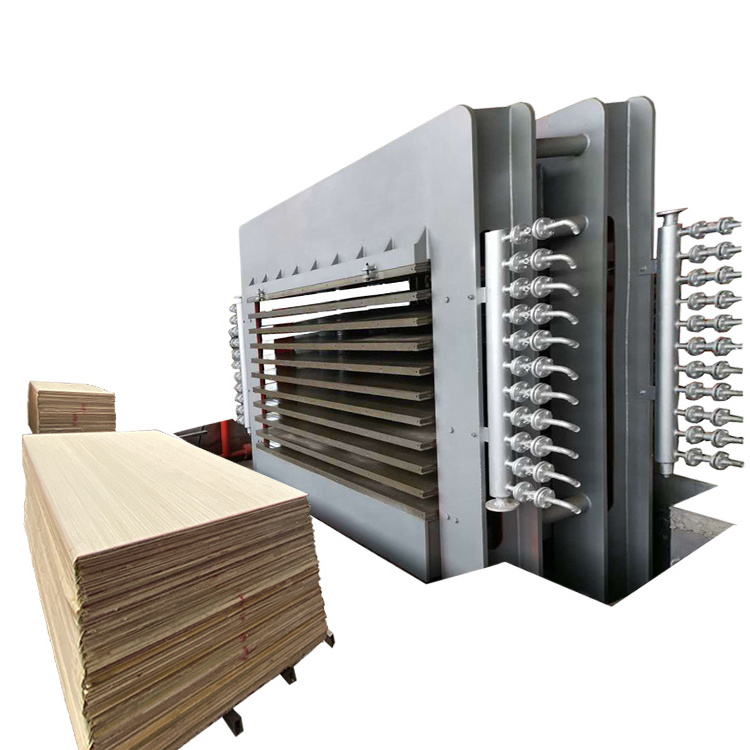

500Ton Hot Press Machine
|
|
|
|
Pressure
|
500tons
|
|
|
Layers
|
15Layers
|
|
|
Hot platen distance
|
70mm
|
|
|
Hot plate qty
|
16pcs
|
|
|
Heating platen size
|
2700*1370*42mm
|
|
|
Qty of Cylinder
|
2
|
|
|
Diameter of cylinder
|
360mm
|
|
|
Stoke of cylinder
|
1050mm
|
|
|
Upper ,bottom crossbeam
|
900mm
|
|
|
Thickness of main frame steel
|
35mm Q235
|
|
|
Overall dimension
|
3550*1370*4650mm
|
|
|
Weight
|
About 38Tons
|
|
|
600Ton Hot Press Machine
|
|
|
|
Pressure
|
600tons
|
|
|
Layers
|
10Layers
|
|
|
Hot platen distance
|
100mm
|
|
|
Hot plate qty
|
11pcs
|
|
|
Heating platen size
|
2700*1370*52mm(two inlet two outlet)
|
|
|
Diameter of cylinder
|
6*ø220mm,2*ø120mm,(lifting cylinder),totoal 8cylinder,Wuxi cylinder
|
|
|
Stoke of cylinder
|
1000mm
|
|
|
Upper ,bottom crossbeam
|
900mm
|
|
|
Thickness of main frame steel
|
35mm Q235
|
|
|
Overall dimension
|
3600mm*1370mm*4200mm
|
|
|
Weight
|
About 42Tons
|
|
|
800Ton Hot Press Machine
|
|
|
|
Pressure
|
800tons
|
|
|
Layers
|
25Layers
|
|
|
Hot platen distance
|
80mm
|
|
|
Hot plate qty
|
26pcs
|
|
|
Heating platen size
|
2700*1370*42mm
|
|
|
Qty of Cylinder
|
4
|
|
|
Diameter of cylinder
|
320mm
|
|
|
Stoke of cylinder
|
2000mm
|
|
|
Upper ,bottom crossbeam
|
900mm
|
|
|
Thickness of main frame steel
|
40mm Q235/(4 groups frame)
|
|
|
Overall dimension
|
3600mm*1370mm*6720mm
|
|
|
Weight
|
About 86Tons
|
|
