Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JING SHEN
-
Product name:
-
fork positioner
-
Load capacity:
-
2500 kg
-
Mounting Class:
-
2
-
Carriage Width:
-
1040 mm
-
Opening Range:
-
330-980 mm
-
Side shift distance:
-
±100 mm
-
Effective Thickness:
-
75 mm
-
Weight:
-
65 kg
Quick Details
-
Warranty:
-
1 Year
-
Applicable Industries:
-
Forklift
-
Weight (KG):
-
65
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JING SHEN
-
Product name:
-
fork positioner
-
Load capacity:
-
2500 kg
-
Mounting Class:
-
2
-
Carriage Width:
-
1040 mm
-
Opening Range:
-
330-980 mm
-
Side shift distance:
-
±100 mm
-
Effective Thickness:
-
75 mm
-
Weight:
-
65 kg

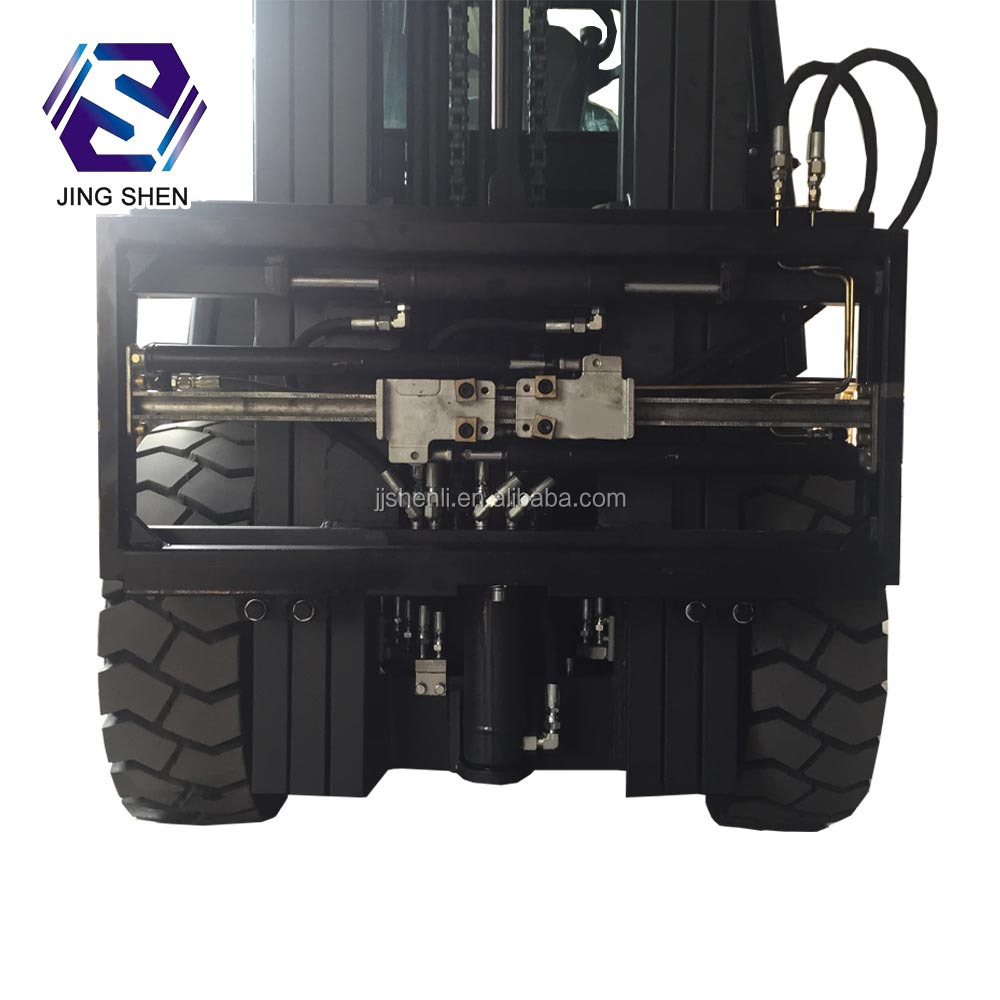

Forklift attachment fork positioners with side shift
Fork positioner adjusts the distance between forks through the hydraulic drive, reduces the labor intensity and improves efficiency, suitable for different specification tray handling occasion.
|
Capacity@ Load Center (kg@mm) |
Catalog |
Mounting Class |
Lateral Range (mm) |
Carriage Width (A) (mm) |
Weight (kg) |
Effective Thickness (ET)mm) |
Opening Range (mm) |
Vertical Center of Gravity(CGV) (mm) |
Horizontal Center of Gravity (CGH) (mm) |
|
2500@500 |
SLC-A002FP |
2 |
±100 |
1040 |
115 |
75 |
45-960 |
255 |
35 |
|
2500@500 |
SLC-A003FP |
2 |
±100 |
1100 |
122 |
75 |
45-1020 |
255 |
35 |
|
4500@500 |
SLC-B002FP |
3 |
±100 |
1100 |
140 |
84 |
50-1000 |
270 |
40 |
|
4500@500 |
SLC-B003FP |
3 |
±100 |
1150 |
148 |
84 |
50-1050 |
270 |
40 |
|
4500@500 |
SLC-B004FP |
3 |
±100 |
1200 |
155 |
84 |
50-1100 |
270 |
40 |
|
4500@500 |
SLC-B005FP |
3 |
±100 |
1380 |
175 |
84 |
50-1280 |
270 |
40 |
|
4500@500 |
SLC-B006FP |
3 |
±100 |
1430 |
186 |
84 |
50-1330 |
270 |
40 |
|
6800@600 |
SLC-C005FP |
4 |
±150 |
1535 |
350 |
98 |
50-1420 |
382 |
55 |
|
6800@600 |
SLC-C006FP |
4 |
±150 |
1710 |
382 |
98 |
50-1690 |
382 |
55 |
|
6800@600 |
SLC-C007FP |
4 |
±150 |
1845 |
410 |
98 |
50-1720 |
382 |
55 |
Note:1 )Please get the actual comprehensive carrying capacity of forklift/attachment from the forklift factory
2) Requires a forklift to increase the additional 2 sets of oil-way .
