Quick Details
-
Power (kW):
-
1.5
-
Weight (KG):
-
600 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Nail wire diameter:
-
0.8-2.0mm
-
Name:
-
common nail making machine
-
Application:
-
Produce Common Steel Nails
-
Voltage:
-
220V/380V/415V/440V
-
Speed:
-
170-550pcs/min
-
Z94-1C Nail length:
-
10-25mm
-
Raw material:
-
Low Carbon Steel Wire
-
Model:
-
Z94-1C/2C/3C/4C/5C/6C
-
Keyword:
-
Wire Nail Machine
Quick Details
-
Production Capacity:
-
100sets
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
wanzhong
-
Power (kW):
-
1.5
-
Weight (KG):
-
600 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Nail wire diameter:
-
0.8-2.0mm
-
Name:
-
common nail making machine
-
Application:
-
Produce Common Steel Nails
-
Voltage:
-
220V/380V/415V/440V
-
Speed:
-
170-550pcs/min
-
Z94-1C Nail length:
-
10-25mm
-
Raw material:
-
Low Carbon Steel Wire
-
Model:
-
Z94-1C/2C/3C/4C/5C/6C
-
Keyword:
-
Wire Nail Machine

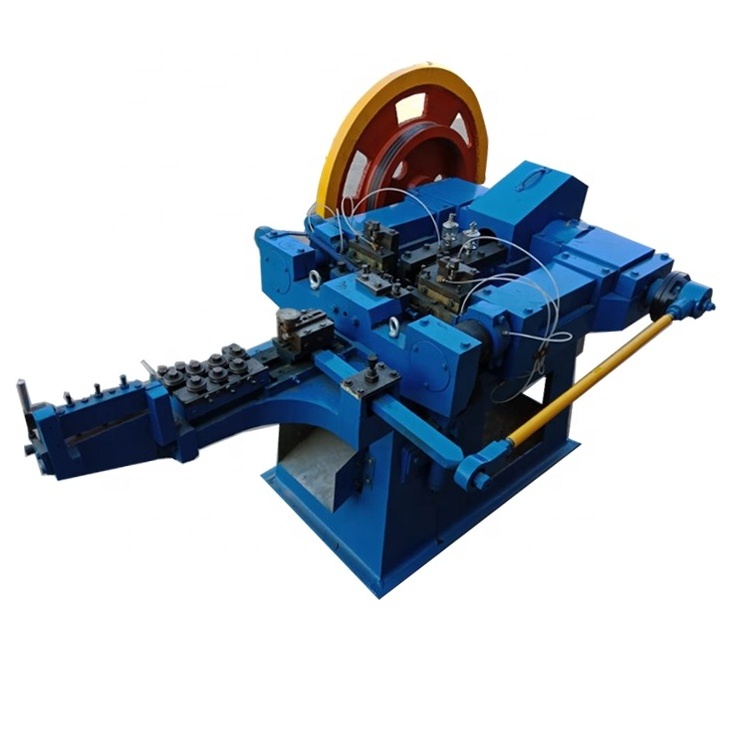

good price common wire nail making machine
Common wire nail making machine adopts plunger type structure to ensure its high working speed, low noise and low impact characteristics.
Both scrap and new wire steel can be used as material for common wire nail making machine.
main technical parameters:
|
Model |
Z94-1C
|
Z94-2C
|
Z94-3C
|
Z94- 4 C
|
Z94-5.5C |
|
|
|||||
|
Max. dia. of nail |
2.0 mm |
2.8mm |
3. 2 mm |
4. 2 mm |
5. 0 mm |
|
Min. dia. of nail |
0. 8 mm |
1.2mm |
1.8mm |
2. 5 mm |
2 .8mm |
|
Max. Length of nail |
25mm |
50mm |
8 5mm |
10 5 mm |
127 mm |
|
Min. length of nail |
10 mm |
16mm |
30mm |
50mm |
5 0mm |
|
Motor power |
1.5kw |
2.2kw |
3kw |
5.5 kw |
7 .5kw |
|
Nail making speed |
500-55 0pcs/min |
360-40 0pcs/min |
280-300 pcs/min |
2 0 0 -240 pcs/min |
170-180 pcs/min |
|
L*W*H |
1300*900*1100mm |
1700*1000*1200 mm |
2100*1200*1300 mm |
2400*1500*1400 mm |
2700*1550*1450 mm |
|
Weight |
0.6 tons |
0.8 tons |
1. 1 tons |
1.7 tons |
2. 0 tons |
The whole production process is below:
S crap or new steel wire→ wire drawing machine→ nail making → polishing → finishing nails
If you want to know the latest price,pls enter,thanks
Auxiliary Equippment
Pointing Machine
Butt-welding Machine
Grinder Machine
Spare parts
