High hardness PC cover, durable.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
BINGO
-
Model Number:
-
PS-LA3
-
Max. Current:
-
1.5A
-
Max. Working Pressure:
-
10 kPa
-
Item:
-
differential pressure switch
-
Medium:
-
Air, non-combustible and non-aggressive gas
-
Operating temperature:
-
-40 ~ +85° C
-
Contact form:
-
SPDT
-
Terminal:
-
6.3mm blade, screw
-
Connection:
-
6.0mm O.D. for tube
-
Mounting position:
-
Vertical
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
BINGO
-
Model Number:
-
PS-LA3
-
Max. Current:
-
1.5A
-
Max. Working Pressure:
-
10 kPa
-
Item:
-
differential pressure switch
-
Medium:
-
Air, non-combustible and non-aggressive gas
-
Operating temperature:
-
-40 ~ +85° C
-
Contact form:
-
SPDT
-
Terminal:
-
6.3mm blade, screw
-
Connection:
-
6.0mm O.D. for tube
-
Mounting position:
-
Vertical
Product Description

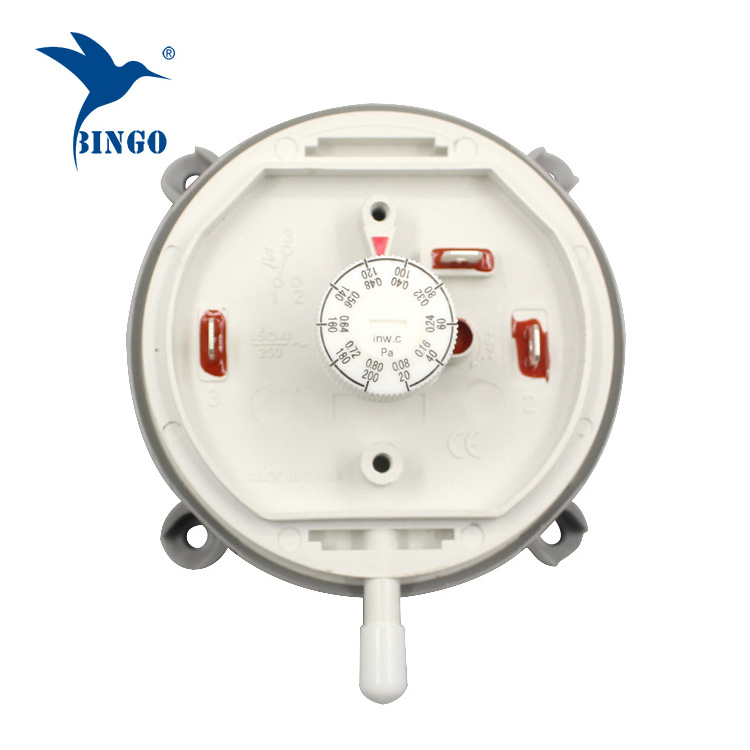

Differential pressure switch
low price, high quality. can customized various pressure range.
Detailed Images
High quality PC cover.
Wire connection.
Water proof connector, safe and reliable.
Flame retardant base.
High flame-retardant material, in line with UL-V094 standard , complies with UL-V094 standard.
Product accessories
Product size
Product parameter
|
Model
|
PS-LA3
|
|
Medium Air
|
non-combustible and non-aggressive gasses
|
|
Max Pressure
|
10 kPa
|
|
Mounting position
|
Diaphragm in any vertical plane
|
|
Protection degree
|
IP54 (with cover)
|
|
Temperature
|
40° C to 85° C
|
|
Contact
|
SPDT
|
|
Electrical Rating
|
1.5A (0.4A) / 250V
|
|
Terminals
|
6.3 mm(0.25") copper alloy
|
|
Connection
|
6.0mm Dia
|
|
Approval
|
CE
|
|
Model
|
Pressure Rang
|
Differential
|
Toleranc
|
|
PS-LA3-02
|
20 ~ 200 Pa
|
10 Pa
|
±15%
|
|
PS-LA3-03
|
30 ~ 300 Pa
|
10 Pa
|
±15%
|
|
PS-LA3-04
|
40 ~ 400 Pa
|
20 Pa
|
±15%
|
|
PS-LA3-05
|
50 ~ 500 Pa
|
20 Pa
|
±15%
|
|
PS-LA3-10
|
200 ~ 1000 Pa
|
100 Pa
|
±15%
|
|
PS-LA3-25
|
500 ~ 2500 Pa
|
150 Pa
|
±15%
|
Product packaging
|
|
