Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
T19E
-
CRI (Ra>):
-
70
-
Input Voltage(V):
-
AC100-240V
-
Lamp Luminous Flux(lm):
-
4800±200,48300±2100
-
Working Temperature(℃):
-
-40℃~+50℃
-
Product Weight（kg）:
-
7.2
-
Power(W):
-
40-420
-
Power Efficiency:
-
91%
-
Power Factor:
-
0.95
-
CCT(K):
-
3000,4000,5000,5700
-
Body Dimensions(mm):
-
695*330*160
-
Packing Dimensions(mm):
-
780*410*230
-
Net Weight(kg):
-
7.2
-
Gross weight(kg):
-
8.4
-
Led source:
-
LUMILEDS
-
Housing Material:
-
Aluminum alloy
Quick Details
-
Color Temperature(CCT):
-
5000K (Daylight)
-
Warranty(Year):
-
5
-
Lighting solutions service:
-
Lighting and circuitry design, DIALux evo layout, auto CAD layout
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
T19E
-
CRI (Ra>):
-
70
-
Input Voltage(V):
-
AC100-240V
-
Lamp Luminous Flux(lm):
-
4800±200,48300±2100
-
Working Temperature(℃):
-
-40℃~+50℃
-
Product Weight（kg）:
-
7.2
-
Power(W):
-
40-420
-
Power Efficiency:
-
91%
-
Power Factor:
-
0.95
-
CCT(K):
-
3000,4000,5000,5700
-
Body Dimensions(mm):
-
695*330*160
-
Packing Dimensions(mm):
-
780*410*230
-
Net Weight(kg):
-
7.2
-
Gross weight(kg):
-
8.4
-
Led source:
-
LUMILEDS
-
Housing Material:
-
Aluminum alloy

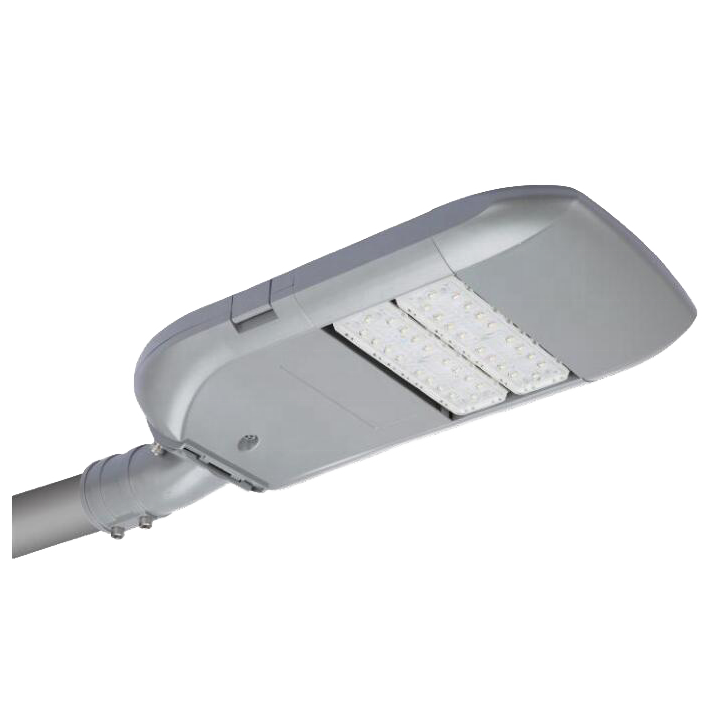

Led lamp parts ip68 led outdoor street light new led street light
Features:
- Honeycomb briquette burning effect and the whole structure cooling technology;
- All metal structure, standalone chambers for light source and driver;
- Optional installation can be installed horizontally or vertically,adjustable by ±15° in both directions.
- Double-coupling IP68 protection, highest waterproof level;
- Ergonomic lighting distribution to achieve uniform illuminating effect;
- Free modular serialization and full power range solution.
Applications:
- Roadway lighting(Urban road, street, expressway…)
- Area lighting(City hall square, business district, Parking lot…)
|
Specification |
|
|
Model |
T19E |
|
Power(w): |
40-420 |
|
Material: |
Aluminum Alloy |
|
Type Of Chip: |
1w-3w High Power LED Chip |
|
Brand Of Chip: |
LUMILEDS |
|
Luminous(lm): |
4800±200,48300±2100 |
|
Color Temperature(K): |
3000,4000,5000,5700 |
|
CRI: |
≥ 70 |
|
Beam Angle: |
more than 6 kinds of angle to choose |
|
Total Harmonic Distortion(THD): |
<20% |
|
PF: |
0.95 |
|
Working Life: |
≥ 50000 hrs |
|
Warranty: |
5years |
|
Dimensions |
|
|
Finishing Color: |
BLACK WHITE GRAY BLUE |
|
Product Dimensions(mm) |
695*330*160 |
|
Outer Carton Size(mm) |
780*410*230 |
|
N.W(kg) |
7.2 |
|
G.W(kg) |
8.4 |
|
IP Rating |
IP68 |
|
LED Life Span(h) |
>50,000 |
|
Housing Material |
Aluminum Alloy |
Contact for more details and professional solutions!
Contact for more details and professional solutions!
Contact for more details and professional solutions!
Contact for more details and professional solutions!
Contact for more details and professional solutions!
Contact for more details and professional solutions!
Contact for more details and professional solutions!
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
