Quick Details
-
Walkie Talkie Type:
-
Analog Radio
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
MYT
-
Model Number:
-
MYT-860
-
Dimensions:
-
138 x 60 x 41mm
-
Frequency Range:
-
UHF:400~470MHz; VHF: 136~174MHz
-
Name:
-
MYT-860
-
Type:
-
analog walkie talkie for sale
-
Color:
-
Black, camouflage
-
Material:
-
PC+ABS
-
Output Power:
-
10watts
-
Battery capacity:
-
Li-ion Battery
-
Weight:
-
300g
-
Warranty:
-
12 Months
-
wireless fm transmitter:
-
http://myt.qzaa.cn
Quick Details
-
Talk Range:
-
8-10km
-
Terminal style:
-
Handheld
-
Storage Channel:
-
16
-
Walkie Talkie Type:
-
Analog Radio
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
MYT
-
Model Number:
-
MYT-860
-
Dimensions:
-
138 x 60 x 41mm
-
Frequency Range:
-
UHF:400~470MHz; VHF: 136~174MHz
-
Name:
-
MYT-860
-
Type:
-
analog walkie talkie for sale
-
Color:
-
Black, camouflage
-
Material:
-
PC+ABS
-
Output Power:
-
10watts
-
Battery capacity:
-
Li-ion Battery
-
Weight:
-
300g
-
Warranty:
-
12 Months
-
wireless fm transmitter:
-
http://myt.qzaa.cn

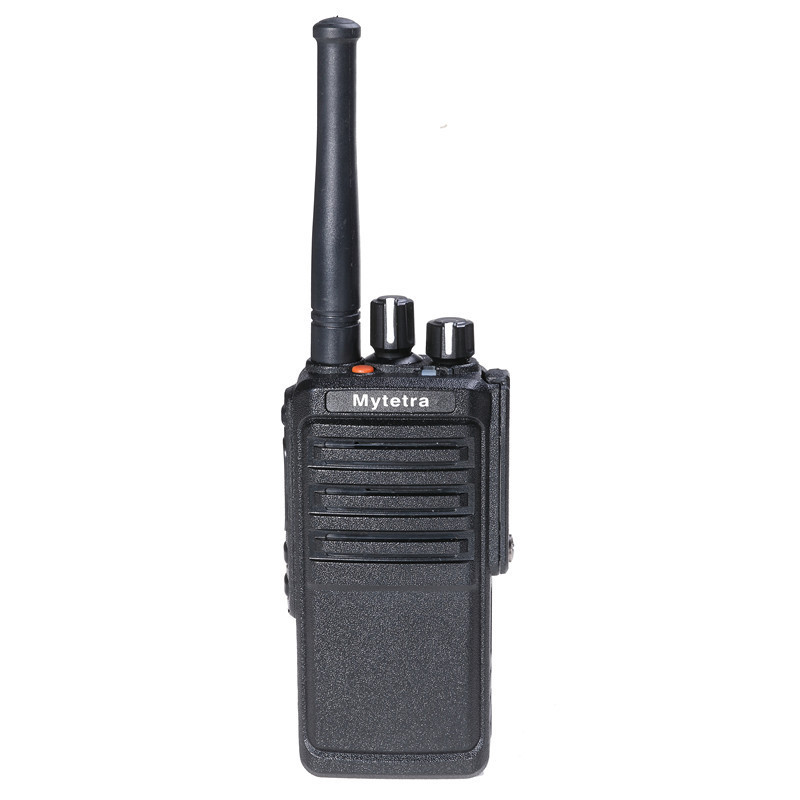

MYT-860 New 10W high output power Walkie Talkie with IP67+GPS+Record function optional
Main Feature
| MAIN FEATURE |
| High power output |
| Computer literacy frequency function |
| 39 groups of CTCSS and 83 groups of DCS |
| High/low power selective |
| BCL function |
| Chinese and English voice prompt |
| FM radio |
| VOX function |
| TOT function |
Product View
| PRODUCT VIEW |
| Standard Package: One Battery, One Charger, One Antenna, One Belt Clip, One English Manual. |
Specifications
|
SPECIFICATIONS
|
| General Specifications | |
| Power Supply | 7.5V DC ±20% |
| Operating Temperature | -25℃~ + 60℃ |
| Number of Channels | 16 |
| Dimensions: H x W x D (mm) | 138 x 60 x 41mm |
| Weight | 300g |
| Transmitter Specifications | |
| Frequencies - Full Bandsplit |
UHF:400~470MHz |
| Frequency Stability(-25 to 55, 25 Ref) | 2.5ppm |
| Power Output | 8W |
| Modulation Limiting | <5KHz @ 25KHz |
| FM Hum & Noise | 45dB @ 25KHz |
| Conducted/Radiated Emission | -36dBm < 1GHz, -30dBm > 1GHz |
| Adjacent Channel Power | <-65dB @ 25KHz |
| Audio Distortion | < 5% |
| Receiver Specifications | |
| Sensitivity(12 dB SINAD)EIA | 0.25μV @ 12.5KHz/25KHz typical |
| Intermodulation EIA | 60 dB |
| Adjacent Channel Selectivity | 65 dB @ 20/25KHz |
| Spurious Rejection | 65 dB |
| Rated Audio | 1W |
| Audio Distortion @ Rated Audio | 5% |
| Audio Response (300-3000Hz) | +3 ~ -3 dB |
| Conducted Spurious Emission | -58 dBm<1 GHz, -47 dBm>1GHz |
