Quick Details
-
Length:
-
for all products from Bestray
-
Place of Origin:
-
Ho Chi Minh City, Vietnam
-
Brand Name:
-
Bestray
-
Model Number:
-
HT
-
Side Rail Height:
-
for all products from Bestray
-
Thickness (mm):
-
4.0 5.0 6.0
-
Materials:
-
Carbon steel (CT3, SS400), Stainless steel (SUS304, SUS316)
-
Finishes:
-
Natural finish, Hot dip galvanize, Electro galvanized, Powder coating
-
OEM/ODM:
-
Available
-
Sample:
-
Available
-
Certificates:
-
ISO 9001:2015 (BVC)
-
Comply with standards::
-
NEMA VE1-2017, IEC 61537-2006
-
Third party certify::
-
Quatest 3 (VN)
-
Catalogue:
-
Available
-
Bussiness type:
-
Manuacturer
Quick Details
-
Type:
-
Wire Mesh
-
Material:
-
Steel
-
Width:
-
for all products from Bestray
-
Length:
-
for all products from Bestray
-
Place of Origin:
-
Ho Chi Minh City, Vietnam
-
Brand Name:
-
Bestray
-
Model Number:
-
HT
-
Side Rail Height:
-
for all products from Bestray
-
Thickness (mm):
-
4.0 5.0 6.0
-
Materials:
-
Carbon steel (CT3, SS400), Stainless steel (SUS304, SUS316)
-
Finishes:
-
Natural finish, Hot dip galvanize, Electro galvanized, Powder coating
-
OEM/ODM:
-
Available
-
Sample:
-
Available
-
Certificates:
-
ISO 9001:2015 (BVC)
-
Comply with standards::
-
NEMA VE1-2017, IEC 61537-2006
-
Third party certify::
-
Quatest 3 (VN)
-
Catalogue:
-
Available
-
Bussiness type:
-
Manuacturer
Product Specification
Dong Cong Quoc
Managing Director
We are proud to have researched, developed and innovated to make the Wire Mesh Cable Tray system more perfect and convenient, creating a synchronous solution that has never been done by any manufacturer before.
We are committed to providing high quality products and timely delivery to customers.
|
STT
|
Wire Mesh Cable Tray Specifications
|
|
1
|
Top wires size are larger than body wires size, to make trays more stronger at the top edges, symmetrical and aesthetic.
|
|
2
|
"T welding" the body wires to the top wires, to make side rails smooth edges. safety for installers, as well as prevent any damage
to cable or obstacle during pulling. |
|
3
|
"Wave type" side rails on the top is designed to increase rigidity, provides maximizes strength length, higher load performance
for trays. |
|
4
|
Label Bestray is "3 position" type, PE plastic, yellow color and black letter by laser.
|
Products Description
|
Product Name
|
L1 (mm)
|
L2 (mm)
|
Code
|
|
|
|
||||||
|
|
|
|
S4
|
HG
|
EG
|
PC
|
||||||
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
||||||
|

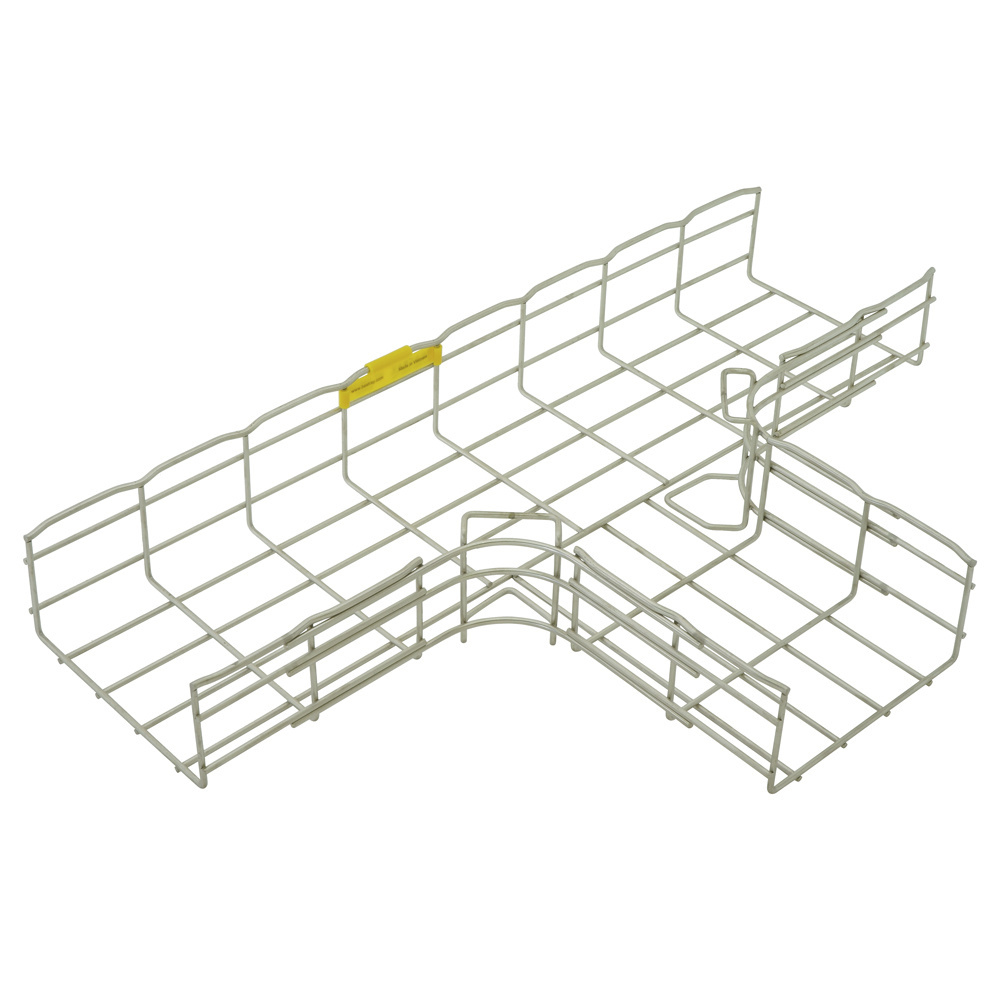

HT 105/100
|
395
|
705
|
HT1010S4
|
HT1010HG
|
HT1010HG
|
HT1010PC
|
||||||
|
HT 105/150
|
445
|
705
|
HT1015S4
|
HT1015HG
|
HT1015HG
|
HT1015PC
|
||||||
|
HT 105/200
|
495
|
805
|
HT1020S4
|
HT1020HG
|
HT1020HG
|
HT1020PC
|
||||||
|
HT 105/300
|
595
|
905
|
HT1030S4
|
HT1030HG
|
HT1030HG
|
HT1030PC
|
||||||
|
HT 105/400
|
695
|
1005
|
HT1040S4
|
HT1040HG
|
HT1040HG
|
HT1040PC
|
||||||
|
HT 105/450
|
745
|
1005
|
HT1045S4
|
HT1045HG
|
HT1045HG
|
HT1045PC
|
||||||
|
HT 105/500
|
795
|
1105
|
HT1050S4
|
HT1050HG
|
HT1050HG
|
HT1050PC
|
||||||
|
HT 105/600
|
895
|
1205
|
HT1060S4
|
HT1060HG
|
HT1060HG
|
HT1060PC
|
||||||
|
(xx):
S6
(SUS316)
S4
(SUS304)
HG
(Hot Dip Galvanized)
EG
(Electro Galvanized)
PC
(Powder Coating)
|
|
|
|
|
|
|
||||||
|
Product Name
|
L1 (mm)
|
L2 (mm)
|
Code
|
|
|
|
||||||
|
|
|
|
S4
|
HG
|
EG
|
PC
|
||||||
|
HT 54/50
|
345
|
605
|
HT0505S4
|
HT0505HG
|
HT0505EG
|
HT0505PC
|
||||||
|
HT 54/100
|
395
|
705
|
HT0510S4
|
HT0510HG
|
HT0510EG
|
HT0510PC
|
||||||
|
HT 54/150
|
445
|
705
|
HT0515S4
|
HT0515HG
|
HT0515EG
|
HT0515PC
|
||||||
|
HT 54/200
|
495
|
805
|
HT0520S4
|
HT0520HG
|
HT0520EG
|
HT0520PC
|
||||||
|
HT 54/300
|
595
|
905
|
HT0530S4
|
HT0530HG
|
HT0530EG
|
HT0530PC
|
||||||
|
HT 54/400
|
695
|
1005
|
HT0540S4
|
HT0540HG
|
HT0540EG
|
HT0540PC
|
||||||
|
HT 54/450
|
745
|
1005
|
HT0545S4
|
HT0545HG
|
HT0545EG
|
HT0545PC
|
||||||
|
HT 54/500
|
795
|
1105
|
HT0550S4
|
HT0550HG
|
HT0550EG
|
HT0550PC
|
||||||
|
HT 54/600
|
895
|
1205
|
HT0560S4
|
HT0560HG
|
HT0560EG
|
HT0560PC
|
||||||
|
(xx):
S6
(SUS316)
S4
(SUS304)
HG
(Hot Dip Galvanized)
EG
(Electro Galvanized)
PC
(Powder Coating)
|
|
|
|
|
|
|
||||||
|
Materials / Finishes:
|
Dimensions:
|
|
|
S6
|
SUS316 (stainless steel)
|
|
|
S4
|
SUS304 (stainless steel)
|
|
|
HG
|
Steel/Hot dip galvanized
|
|
|
DC
|
Steel/Dacromet
|
|
|
PG
|
Steel / Pre-galvanized
|
|
|
EG
|
Steel / Electro galvanized
|
|
|
PC
|
Steel/Powder coating
|
|
Wire Mesh Cable Tray
Features & Benefits:
- Stronger and lighter weight than traditional trays. Easy to handle, simple and fast assembly on site. Reduces material and labor cost.
- Provides greater versatility, easy flexible to install in confined spaces.
- The open structure provides natural ventilation for greater cable
efficiency
and also prevents build-up of dust, contaminants, bacterial proliferation and any animal matter.
- Full range accessories are available, allow to modify, assemble, configure on site.
- Full size range assembled fittings are available, ready to install on site, saving time and cost.
Wire Mesh Cable Tray Applications:
- Welded steel wire mesh cable tray produced from high strength steel wires. Application for securely fasten or support of power
cable, control cable, data cable, optical fiber cable...
- Commercial applications such as: Airport, Metro Stations; Office, Commercial Buildings; Data Center Buildings...
- Industry applications such as: Food Processing; Pharmaceutical, Chemical;
Petrochemical, Oil & Gas; Energy, Power, Steel, Cement Industry...
cable, control cable, data cable, optical fiber cable...
- Commercial applications such as: Airport, Metro Stations; Office, Commercial Buildings; Data Center Buildings...
- Industry applications such as: Food Processing; Pharmaceutical, Chemical;
Petrochemical, Oil & Gas; Energy, Power, Steel, Cement Industry...
|
Wire Mesh Cable Tray Dimensions:
|
Dimensions:
|
|
|
Inside Height (mm):
|
30, 54, 105, 155 (on request).
|
|
|
Inside Width (mm):
|
30, 50, 100, 150, 200, 300, 400, 450, 500, 600.
|
|
|
Length (mm):
|
3000.
|
|
|
Wire diameter Ø (mm):
|
4.0, 5.0, 6.0.
|
|
Product Show
Wire Mesh Cable Tray
Highlights
:
Welded steel wire mesh cable tray produced from high strength steel wires. Application for securely fasten or support of low power cable, signal control cable, data cable, optical fiber cable...
