Quick Details
-
Thickness:
-
2pt,3pt,4pt
-
Height::
-
22mm to 23.8mm
-
Wave rule::
-
38HRC-54HRC
-
Material:
-
Steel
-
Appliacation:
-
Die mold
-
Type:
-
Center bevel and long center bevel
-
Hardness:
-
Body(38-45HRC) Edge Angle(42/52)
-
Shape:
-
CB, LCB, SB, LSB
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LUKES
-
Product Name:
-
Cutting Rule / Creasing Rule
-
Thickness:
-
2pt,3pt,4pt
-
Height::
-
22mm to 23.8mm
-
Wave rule::
-
38HRC-54HRC
-
Material:
-
Steel
-
Appliacation:
-
Die mold
-
Type:
-
Center bevel and long center bevel
-
Hardness:
-
Body(38-45HRC) Edge Angle(42/52)
-
Shape:
-
CB, LCB, SB, LSB
Flat Die Cutting Steel Rule Blade Creasing Rule For Die Making 2pt 3pt 4pt
CUTTING RULE & CREASING RULE
We supply cutting rule, creasing rule, perforating rule, cut-crease rule, zipper rule, wave rule for laser die making.
|
CUTTING RULE
|
|
|
|
Blade hardness
|
33-35HRC
|
|
|
Blade/blade hardness
|
600HV ( 56 HRC)
|
|
|
Best bending degree (3PT shaved)
|
a=40°R~ 0.5mm
|
|
|
specification
|
3pt*23.8mm DB
|
|
|
3pt*23.8mm DB
|
Pull mouth
|
|
|
Blade angle
|
42°/48°/52°/
|
|
|
CREASING RULE
|
|
|
|
Hardness
|
35-40 hrc
|
|
|
Height
|
22.00-23.80
|
|
|
TOOTH RULE
|
|
|
|
Blade hardness
|
35°
|
|
|
Blade/blade hardness
|
35
|
|
|
Specification
|
2pt*23.8 2*1
|
|
|
Knife processing
|
Pull mouth
|
|
|
Tooth profile
|
customizable
|
|
Note：

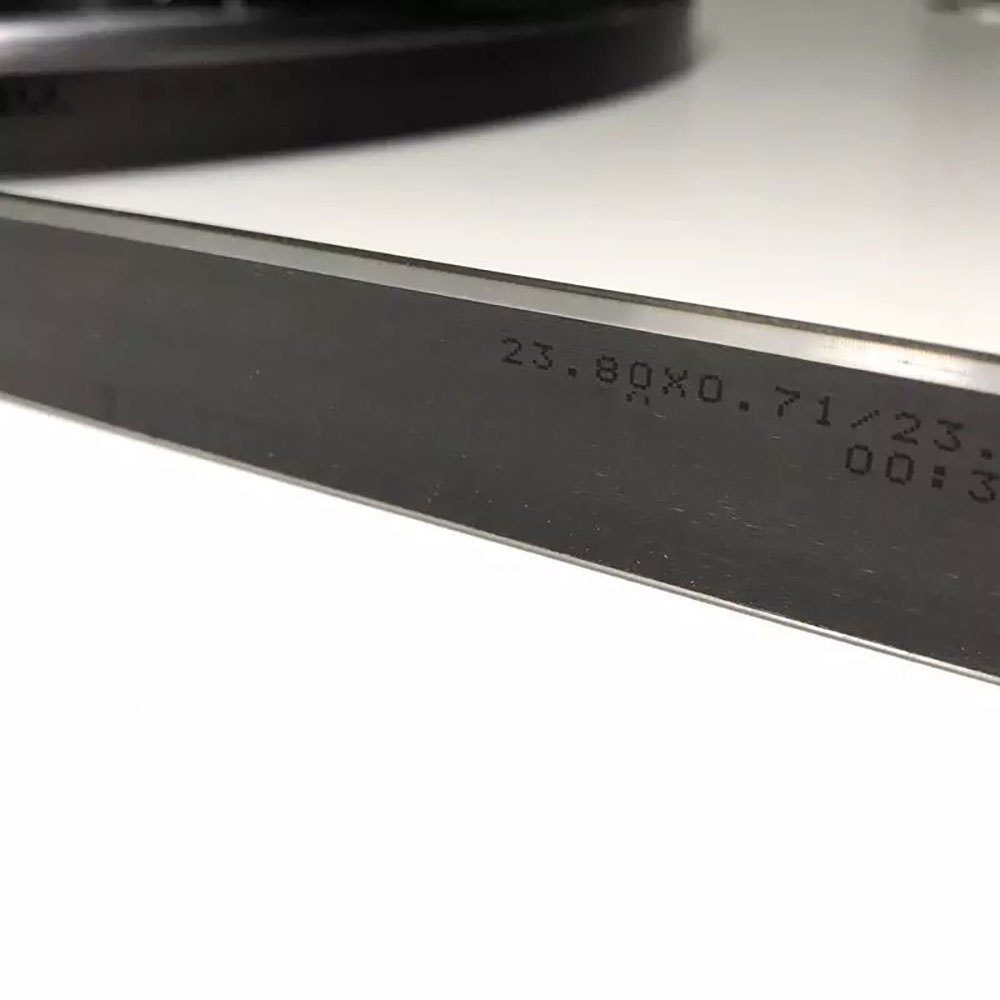

Thickness: 0.71mm(2PT), 1.07mm(3PT), 1.42mm(4PT)
Height: 22-23.8mm, 30mm, 50mm, 60mm, 80mm
Hardness: Body(38-45HRC), Edge Angle(42/52)
Shape: center bevel(CB), long bevel(LCB), side bevel(SB), long side bevel(LSB)
Selected quality material
The steel has a tight molecular structure, a flexible blade, no rebound after bending, and a tight connection between the molecular structure.
Super surface annealing
Excellent heat treatment
High precision
