Quick Details
-
Brand Name:
-
Haomai
-
Voltage:
-
220v/380v/415v, Country
-
Power:
-
1500~5500
-
Dimension(L*W*H):
-
1.7*1.1*1.5m
-
Weight (KG):
-
100
-
Weight:
-
600kgs
-
Product name:
-
Hot Air Drying Machine
-
After-sales Service Provided:
-
Overseas Service Provided
-
Name:
-
Industrial Drying Machine
-
Keywords:
-
Fruit Vegetable Mesh Belt Dryer
-
Usage:
-
Food Used
-
Heating source:
-
Steam
Quick Details
-
Type:
-
Vacuum Drying Equipment
-
Drying Capacity (kg):
-
100kg
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Haomai
-
Voltage:
-
220v/380v/415v, Country
-
Power:
-
1500~5500
-
Dimension(L*W*H):
-
1.7*1.1*1.5m
-
Weight (KG):
-
100
-
Weight:
-
600kgs
-
Product name:
-
Hot Air Drying Machine
-
After-sales Service Provided:
-
Overseas Service Provided
-
Name:
-
Industrial Drying Machine
-
Keywords:
-
Fruit Vegetable Mesh Belt Dryer
-
Usage:
-
Food Used
-
Heating source:
-
Steam
Products Description

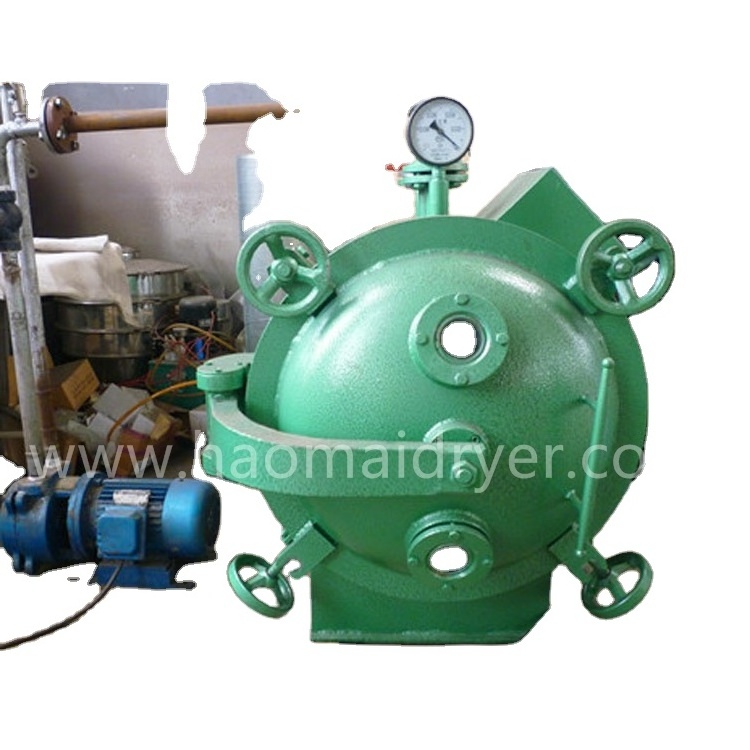

WORKING PRINCIPLE
Vacuum Drying is to let the raw material to be dried at vacuum condition. It uses vacuum pump to pump damp air out and make the working chamber form vacuum status. Therefore, the drying speed of raw material is improved and the energy is saved greatly.
Notes: The solvent of raw material can be collected by using a condenser. If the solvent is water, the condenser is not required in order to save investment cost.
FEATURES
Ordering Information
1. Please choose the suitable model according to the primary moisture content, final moisture content, temperature, vacuum degree, and drying time. The heat source can use steam, hot water, thermal oil, and electricity. If the customer required increasing the drying capacity by add more trays, please specify in the order.
2. If the customer required installation or spare parts, please specify in the order.
3. Customized design service available.
4. We guarantee the quality of the dryer and we ensured the spare parts for the dryer is available in a long term.
Scope of application
APPLICATION
This dryer is suitable for drying heat sensitive
raw materials that can decompose or
polymerize or deteriorate at high temperature.
It is widely used in foodstuff and electronic industries.
Specification
|
Specification
Item |
YZG-600
|
YZG-800
|
YZG-1000
|
YZG-1400A
|
FZG-10
|
FZG-15
|
FZG-20
|
||||||
|
Inner Dimension of the Dryer (mm)
|
Ф600×976
|
Ф800×1247
|
Ф1000×1527
|
Ф1400×2054
|
1500×1060×1220
|
1500×1400×1220
|
1500×1800×1220
|
||||||
|
Outer Dimension of the Dryer (mm)
|
1135×810×1024
|
1700×1045×1335
|
1693×1190×150
|
2386×1675×1920
|
1513×1924×1720
|
1513×1924×2060
|
1513×1924×2500
|
||||||
|
Qty of Layers
|
4
|
4
|
6
|
8
|
5
|
8
|
12
|
||||||
|
Distance of Layers
|
82
|
82
|
102
|
102
|
122
|
122
|
122
|
||||||
|
Dimension of Tray
(mm) |
310×600×45
|
520×410×45
|
520×410×45
|
460×640×45
|
460×640×45
|
460×640×45
|
460×640×45
|
||||||
|
Qty of Trays
|
4
|
8
|
12
|
32
|
20
|
32
|
48
|
||||||
|
Inside Pressure of Drying Rack (MPa)
|
≤0.784
|
≤0.784
|
≤0.784
|
≤0.784
|
≤0.784
|
≤0.784
|
≤0.784
|
||||||
|
Working Temperature of Drying Rack
|
35-150
|
35-150
|
35-150
|
35-150
|
35-150
|
35-150
|
35-150
|
||||||
|
Vacuum Degree of Empty Dryer
|
-0.09～0.096
|
|
|
|
|
|
|
||||||
|
Water Evaporation Rate
(In the condition of -0.1MPa with temperature of 110°C)(kg/m2·hr) |
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
||||||
|
Vacuum Pump
(for the dryers with condenser) |
2X-15A
2KW |
2X-30A
3KW |
2X-30A
3KW |
2X-70A
5.5KW |
2X-70A
5.5KW |
2X-70A
5.5KW |
2X-90A
2KW |
||||||
|
Vacuum Pump
(for the dryers without condenser) |
SK-0.8
2.2KW |
SK-2.7
4KW |
SK-3
5.5KW |
SK-6
11KW |
SK-3
5.5KW |
SK-6
11KW |
SK-6
11KW |
||||||
|
Weight(kg)
|
250
|
600
|
800
|
1400
|
1400
|
2100
|
|
||||||
|
|
|
|
|
|
|
|
|
||||||
