Quick Details
-
Range of Spindle Speed(r.p.m):
-
100 - 6000
-
Spindle Taper:
-
BT30
-
Positioning Accuracy (mm):
-
0.0015
-
Repeatability (X/Y/Z) (mm):
-
0.001
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SUMORE
-
Model Number:
-
SP2211-T
-
Table Travel (mm):
-
800 x 240 mm
-
Voltage:
-
as customer's requirement
-
Dimension(L*W*H):
-
1600x1450x2300mm
-
Weight (KG):
-
1000
-
Spindle Motor Power(kW):
-
2.2
-
Max. Table Load(kg):
-
80 kg
-
Marketing Type:
-
Hot Product 2021
-
Certificate:
-
CE
-
Name:
-
Metal processing cnc milling machine with 5 axis SP2211-T
-
Worktable size:
-
900*240mm
-
X axis travel:
-
530mm
-
Y axis travel:
-
280mm
-
Z axis travel:
-
400mm
-
Spindle Speed:
-
100-6000r/min
-
Feeding speed:
-
0-2000mm/min
-
Weight:
-
735kg
-
Power(W):
-
1.1/1.5kW
Quick Details
-
Table Travel (X) (mm):
-
400 mm
-
Table Travel (Y) (mm):
-
280 mm
-
Table Travel (Z) (mm):
-
400 mm
-
Range of Spindle Speed(r.p.m):
-
100 - 6000
-
Spindle Taper:
-
BT30
-
Positioning Accuracy (mm):
-
0.0015
-
Repeatability (X/Y/Z) (mm):
-
0.001
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SUMORE
-
Model Number:
-
SP2211-T
-
Table Travel (mm):
-
800 x 240 mm
-
Voltage:
-
as customer's requirement
-
Dimension(L*W*H):
-
1600x1450x2300mm
-
Weight (KG):
-
1000
-
Spindle Motor Power(kW):
-
2.2
-
Max. Table Load(kg):
-
80 kg
-
Marketing Type:
-
Hot Product 2021
-
Certificate:
-
CE
-
Name:
-
Metal processing cnc milling machine with 5 axis SP2211-T
-
Worktable size:
-
900*240mm
-
X axis travel:
-
530mm
-
Y axis travel:
-
280mm
-
Z axis travel:
-
400mm
-
Spindle Speed:
-
100-6000r/min
-
Feeding speed:
-
0-2000mm/min
-
Weight:
-
735kg
-
Power(W):
-
1.1/1.5kW
Metal processing cnc milling machine with 5 axis SP2211-T
Looking for excellent CNC milling machine with 5 axis centres for milling and turning?
Check out our generous range of various metal-working appliations from bench lathe, milling machine,
band saw, drilling machine,surface grinder to the spareparts & accessories related from Sumore Machinary.
Product Description

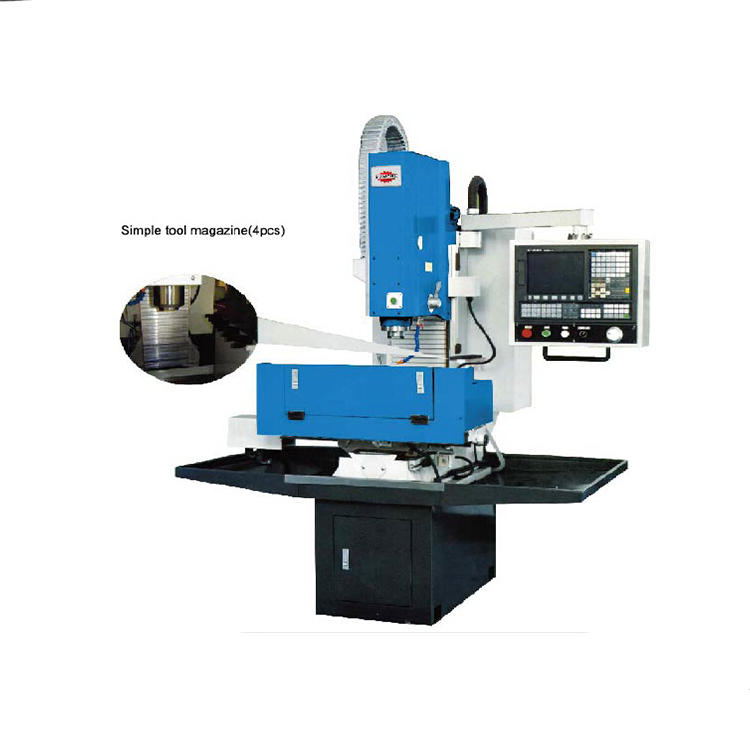

CNC milling machine SP2211-T
specially designed for machining samll size parts, smaller CNC machine with linear guie-way, but concentrated all of functions as normal vertical machine center. Tools can be changed automatically with high speed and high efficiency.
Features
- MACH & GSK & SIEMENS & FANUC Programming Systems
- Additional Computer Socket
- Powerful Brushless Motor & High Precision Axes Movements
- Fine Feedings on Every Directions
- Robust Construction & Stable Performance
- Professional Electronic System
- Cabinet Safety Lock & Considerable Safety Signs
Technical Data
| Model | SP2211-T |
| 900mm*240mm | |
| 60kg | |
| X Axis travel | 530mm |
| Y Axis travel | 280mm |
| Z Axis travel | 400mm |
| Distance between spindle nose and table | 50-550mm |
| Distance between spindle center and column | 297mm |
| Spindle taper | BT30 |
| Max. spindle speed | 100-6000r/min |
| Spindle motor power | 2.2/3.7KW |
| Feeding motor power X axis | 1KW |
| Feeding motor power Y axis | 1KW |
| Feeding motor power Z axis | 1.5KW |
| Rapid feeding speed X Y Z axis | 6m/min |
| Feeding speed | 0-2000mm/min |
| Min. set unit | 0.01mm |
| Max. size of tool | 60*175mm |
| Loosing and clamping way for tool | 4 stations |
| Max. loading weight of tool | 3.5KG |
| Net weight (including machine stand) | 1000KG |
| Packing size (L*W*H) | 1640*1205*2050mm |
| Loading amount |
3pcs/20'container |
Accessories
| Standard Accessories | Optional Accessories |
| Mill Chuck | Rotary Worktable (4th Axis) Package |
| Vice | Clamping Kit |
| Coolant Pump | Quick Vice / Angle Adjustable Vice |
| Oil Tray | Handwheel |
| Wrench Set | Drill Chuck |
| Operating Manual Instruction and Parts List | Boring Cutter with Arbor |
| Metric 2 Flute HSS End Mill Set (6 or 7 pcs) | |
| Engraving Tool Set | |
| Vice (Quick Vice / Adjustable Vice Available) | |
| Base Stand | |
| Computer Stand and Frame | |
| PCMCIA Parallel Card |
Packaging & Shipping
| Package |
1 set/polywood case
(aluminum strips strengthen)
|
| Minimum Order Quantity (MOQ) | 1 sets |
| Full Container Loading Quantity (FCL) |
4 sets/20’GP
(unitary; customerized packing available)
|
| Delivery Time | 45 calendar days after receiving of advance / full payment |
