Quick Details
-
Brand Name:
-
TECHO
-
Model Number:
-
YEJ2/YDEJ2-100L-2
-
Frequency:
-
50HZ/60HZ
-
Product Name:
-
Squirrel Cage Induction Three Phase Electric Motor 220V 3kw
-
Application:
-
Machine tool,transport machinery,package
-
Voltage:
-
380V(other should order)
-
Winding:
-
100% Copper Wire
-
Mounting:
-
B3 B5 B35 B34
-
Poles:
-
2P/4P/6P/8P
-
Rated Speed:
-
2900rpm/1410rpm/910rpm
-
Item:
-
YEJ2/YDEJ2
-
Rated Torque:
-
1.7-2.2N.m
-
Material:
-
CAST IRON
Quick Details
-
AC Voltage:
-
380V
-
Warranty:
-
1 Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TECHO
-
Model Number:
-
YEJ2/YDEJ2-100L-2
-
Frequency:
-
50HZ/60HZ
-
Product Name:
-
Squirrel Cage Induction Three Phase Electric Motor 220V 3kw
-
Application:
-
Machine tool,transport machinery,package
-
Voltage:
-
380V(other should order)
-
Winding:
-
100% Copper Wire
-
Mounting:
-
B3 B5 B35 B34
-
Poles:
-
2P/4P/6P/8P
-
Rated Speed:
-
2900rpm/1410rpm/910rpm
-
Item:
-
YEJ2/YDEJ2
-
Rated Torque:
-
1.7-2.2N.m
-
Material:
-
CAST IRON
Product Description

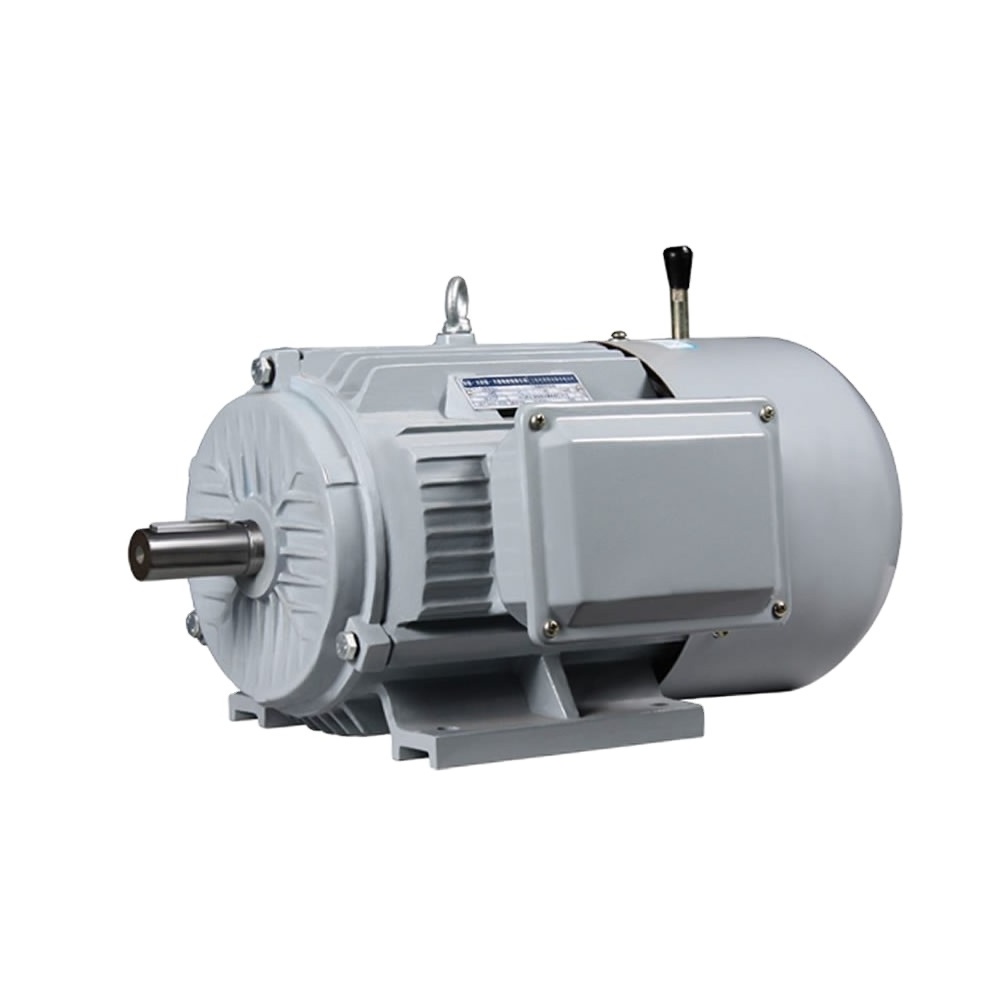

220V 3kwAsynchronous YEJ Electromagnetic Brake Squirrel Cage Induction Three Phase Electric Motor for industrial manufacture
YEJ2, YDEJ2 series electromagnetic brake motors are improved products of YEJ series. it is in accordance with JB/T6456
requirements, and its electrical performance is in accord with Y2 series technical standard.The electric power of the controller should be synchronized with the electric power of the motor.The electric motors are equipped the electromagnetic brake on the non-shaft end. when electricity off retarding disc will automatically press in end-shield which produce friction brake torque and stop the running of motor! the no-load brake duration is changed with the frame size of the motor the range is o.15-0.45 seconds. This kind of motor is considered as the driving force of
various machinery and widely used in mechanical workout machine tool, transport machinery,package, woodworking, food, chemical engineering, textile, construction,shop, roll door machinery
requirements, and its electrical performance is in accord with Y2 series technical standard.The electric power of the controller should be synchronized with the electric power of the motor.The electric motors are equipped the electromagnetic brake on the non-shaft end. when electricity off retarding disc will automatically press in end-shield which produce friction brake torque and stop the running of motor! the no-load brake duration is changed with the frame size of the motor the range is o.15-0.45 seconds. This kind of motor is considered as the driving force of
various machinery and widely used in mechanical workout machine tool, transport machinery,package, woodworking, food, chemical engineering, textile, construction,shop, roll door machinery
|
Model
|
YEJ2-112M-4
|
|
Power
|
4kw
|
|
Speed
|
1410r/min
|
|
Current
|
8.8A
|
|
Efficiency
|
84%
|
|
Power factor
|
0.82
|
|
Static Braking torque
|
40N.m
|
|
Mounting
|
B3/B5/B35/B34
|
Product Paramenters
Products Show
Packing & Delivery
Packing Details : Wooden Case Lined with Plastic Film Bags
Delivery Details : 3-30 days after order
