Quick Details
-
Warranty:
-
1 years, 24months
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Nybon
-
Model Number:
-
/
-
Product name:
-
Double Drum Marine Mooring Anchor Windlass Towing Winch 10t 15t
-
Feature:
-
hand brake or hydraulic brake
-
Hydraulic pump station:
-
Optional
-
Rated Load:
-
300kN
-
Anchor Chain:
-
50mm
-
Lift Speed:
-
12m/min
-
Certification:
-
CCS,BV,RINA
-
Drum:
-
Single/Double/Variable
-
Warping head:
-
Include
Quick Details
-
Power:
-
1400W
-
Application:
-
BOAT
-
Voltage:
-
220-480v
-
Warranty:
-
1 years, 24months
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Nybon
-
Model Number:
-
/
-
Product name:
-
Double Drum Marine Mooring Anchor Windlass Towing Winch 10t 15t
-
Feature:
-
hand brake or hydraulic brake
-
Hydraulic pump station:
-
Optional
-
Rated Load:
-
300kN
-
Anchor Chain:
-
50mm
-
Lift Speed:
-
12m/min
-
Certification:
-
CCS,BV,RINA
-
Drum:
-
Single/Double/Variable
-
Warping head:
-
Include

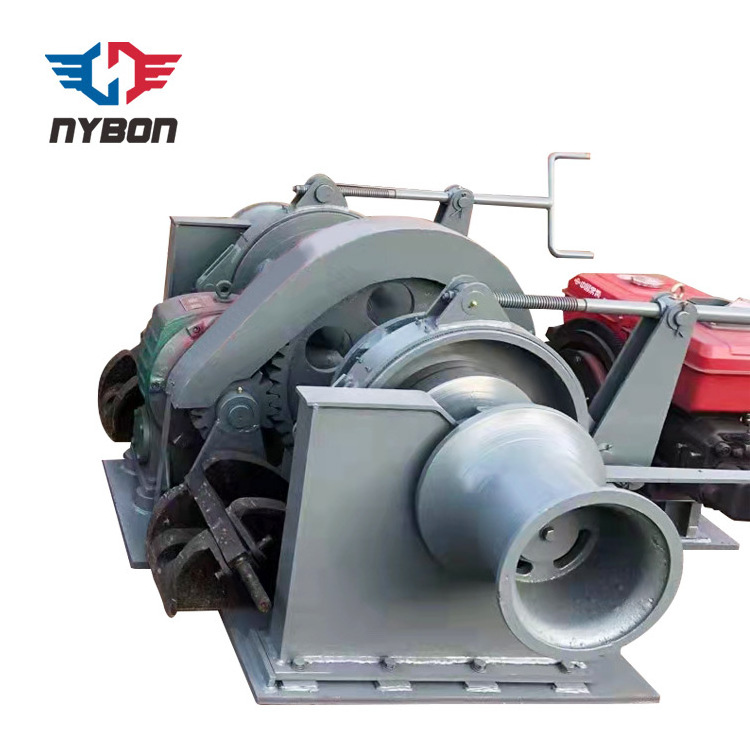

Anchor Windlass Hydraulic Marine Towing Winch 10t 15t
Anchor mooring winch is a combination of anchor windlass and mooring winch. It is an ideal choice to perform both anchoring and mooring functions in various types of vessels.
The winch can be electrically or hydraulically driven depending on the existing infrastructure, your preference and financial considerations. It can be designed for any type or size of mooring line and any chain size to suit your winching requirements.
The anchor and mooring winch can pull up to 100 tons. We offer a variety of optional features to make sure you end up with a perfect winch system.
With highly efficient, safe and reliable operation, this equipment can bring value to various ships, like barges, passenger vessels, tankers, multi purpose vessels and inland vessels.
More kinds marine winch for your choose:
Electric/Hydraulic/Diesel Marine anchor winch
Electric/Hydraulic/Diesel Marine mooring winch
Electric/Hydraulic/Diesel m arine anchor mooring winch
Want to know more, contact me!
Driven type: Electric
Pull force: 2 T ~ 60 T/Customized
No.of gypsy: Single or double
Power supply:220v/380v/400v/440v,50Hz/60Hz,3Phase
Driven type: Hydraulic
Pull force: 2 T ~ 60 T / C ustomized
No.of gypsy: Single or double
Power supply:220v/380v/400v/440v,50Hz/60Hz,3Phase
Driven type: Diesel
Pull force: 2 T ~ 60 T / C ustomized
No.of gypsy: Single or double
Power supply:220v/380v/400v/440v,50Hz/60Hz,3Phase
Send your special needs to us!
| Model |
Chain dia. (mm) |
Working load (KN) |
Overload pulling force(KN) |
Holding load (KN) |
Nominal speed(m/s) | Drum load(KN) | Nominal speed(m/s) | Rope capacity(m) | Warping load(KN) | |||
| AM2 | AM3 | AM2 | AM3 | AM2 | AM3 | |||||||
| NYZ-17.5 | 17.5 | 13 | 14.6 | 19.5 | 21.9 | 80 | 115 | 0.15 | 10 | 0.17 | φ11*100 | 8 |
| NYZ-19 | 19 | 15.3 | 17.2 | 23 | 25.8 | 95 | 135 | 0.15 | 15 | 0.17 | φ13*100 | 10 |
| NYZ-20 | 20 | 17.9 | 20 | 26.9 | 30 | 110 | 157 | 0.15 | 20 | 0.17 | φ13*100 | 10 |
| NYZ-22 | 22 | 20.6 | 23 | 30.9 | 34.5 | 126 | 180 | 0.15 | 20 | 0.25 | φ15*100 | 15 |
| NYZ-24 | 24 | 24.5 | 27.4 | 36.8 | 41.1 | 149 | 214 | 0.15 | 20 | 0.25 | φ15*100 | 20 |
| NYZ-26 | 26 | 28.7 | 32.1 | 43.1 | 48.2 | 175 | 250 | 0.15 | 20 | 0.17 | φ22*100 | 20 |
| NYZ-28 | 28 | 33.3 | 37.2 | 50 | 55.8 | 202 | 289 | 0.15 | 20 | 0.17 | φ22*100 | 20 |
| NYZ-30 | 30 | 38.3 | 42.8 | 57.5 | 64.2 | 231 | 330 | 0.15 |
30 |
0.17 | φ22*100 | 30 |
| NYZ-32 | 32 | 43.5 | 48.6 | 65.3 | 72.9 | 261 | 374 | 0.15 | 30 | 0.15 | φ20*100 | 30 |
Other Products:
|
Diesel Winch
|
|
|
Hydraulic Winch
|
|
|
Driven type: Electric/Hydraulic/Desiel
Power supply:220v/380v/400v/440v,50Hz/60Hz,3Phase (We also supply Mooring winch automatic brake band) |
|
|
Sluice Gate Hoist
|
|
|
Electric Winch
|
Send your special needs to us!
