Quick Details
-
Product name:
-
roller door sensor
-
Model:
-
MCS-55
-
Contact form:
-
form A
-
Contact type:
-
NC (normally closed)
-
Reed switch:
-
OKI reed switch
-
Operating gap:
-
50mm
-
Material:
-
ZINC ALLOY METAL
-
Installation:
-
for roller shutter sensor
-
Certification:
-
CE,ROHS
-
Color:
-
grey
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
5CELEC
-
Model Number:
-
MCS-55
-
Product name:
-
roller door sensor
-
Model:
-
MCS-55
-
Contact form:
-
form A
-
Contact type:
-
NC (normally closed)
-
Reed switch:
-
OKI reed switch
-
Operating gap:
-
50mm
-
Material:
-
ZINC ALLOY METAL
-
Installation:
-
for roller shutter sensor
-
Certification:
-
CE,ROHS
-
Color:
-
grey
Recommend Products
Window contacts
Flush mounted door contacts
Surface mounted door contacts
Products Description

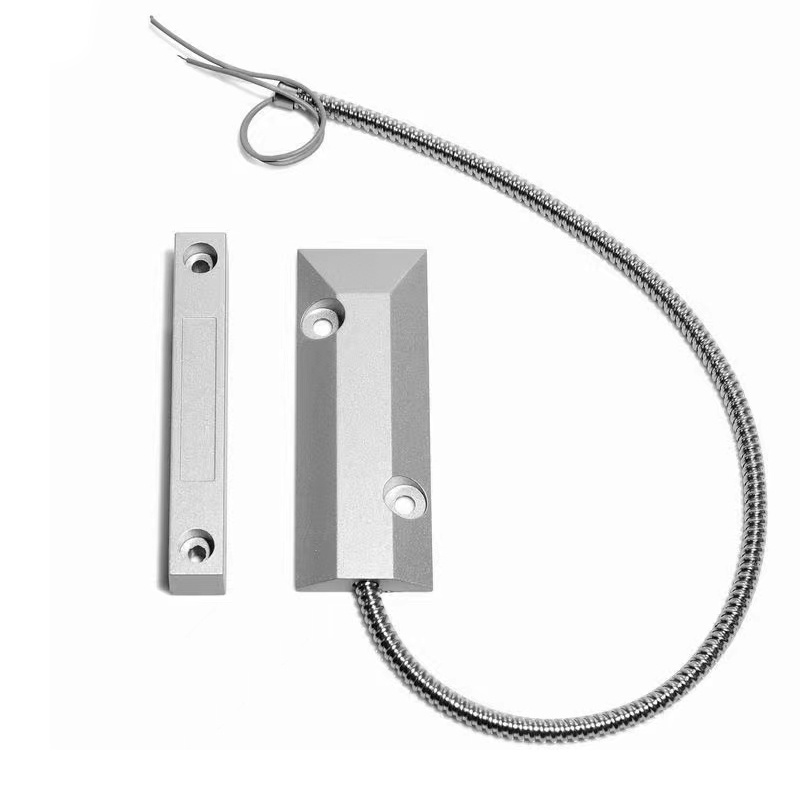

Roller shutter door contacts alarm garage usage
metal magnetic switch sensor MCS-55
Magnetic contact is widely used for alarm system(panel) to detect state of door or window.
It consists of reed switch part and magnet part .
NC type we define:
When door is closed, reed switch is effected by magnet and switch ON; when door is open, reed switch is effected by magnet and
switch OFF, then output signal to panel or trigger alarm.
When door is closed, reed switch is effected by magnet and switch ON; when door is open, reed switch is effected by magnet and
switch OFF, then output signal to panel or trigger alarm.
|
Product name
|
magnetic sensor for heavy duty roller doors
|
|
Model NO.
|
MCS-55
|
|
Installation
|
ground mounted
|
|
Operation gap
|
50MM
|
|
Output type
|
NC
|
|
Housing material
|
alloy zinc
|
|
Housing color
|
grey
|
|
Cover with
|
380mm length armored cable
|
|
Connection
|
wire
|
|
Wires length
|
560mm ± 20
|
|
Switching voltage
|
100VDC Max.
|
|
Switch current
|
0.5A Max.
|
|
Contact rating
|
10W Max.
|
|
Switch working life
|
100000000 times
|
|
Working temperature
|
-20~80℃
|
|
Customized
|
wires type / wires length / others
|
Automatic production process.
Product packaging
|
Package
|
1pcs/bag
|
|
Carton package
|
100pcs
|
|
G.W.
|
21kgs/ctn
|
|
N.W.
|
20.50kgs/ctn
|
|
Carton size
|
38*30*30CM
|
|
Shipment way
|
By sea/ air/ DHL/FEDEX/UPS/TNT express etc.
|
Installation drawing
