Quick Details
-
Weight (KG):
-
430
-
Voltage:
-
2220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Wilpac
-
Dimension(L*W*H):
-
1540*1160*1600mm
-
Film Width:
-
160~420mm
-
Bag Width:
-
60~200mm
-
Bag Length:
-
60~300mm
-
Max. Packing Speed:
-
65bags/min
-
Film Pulling Driven System:
-
servo motor(Panasonic)
-
Horizontal Heat Seal Driven System:
-
cylinder(AirTAC)
-
Frame Of Machine:
-
stainless steel #304
-
Keyword:
-
automatic chew fruits candy packaging machine
-
After Warranty Service:
-
Online support
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Sealing
-
Packaging Type:
-
Stand-up Pouch, Bags, Film, Foil, Pouch
-
Packaging Material:
-
Plastic, Paper
-
Weight (KG):
-
430
-
Voltage:
-
2220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Wilpac
-
Dimension(L*W*H):
-
1540*1160*1600mm
-
Film Width:
-
160~420mm
-
Bag Width:
-
60~200mm
-
Bag Length:
-
60~300mm
-
Max. Packing Speed:
-
65bags/min
-
Film Pulling Driven System:
-
servo motor(Panasonic)
-
Horizontal Heat Seal Driven System:
-
cylinder(AirTAC)
-
Frame Of Machine:
-
stainless steel #304
-
Keyword:
-
automatic chew fruits candy packaging machine
-
After Warranty Service:
-
Online support
Sale Promotion !!! Low Price !!!

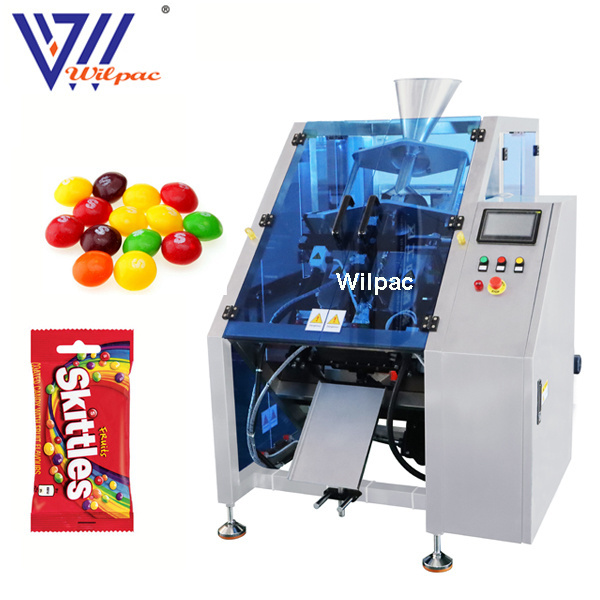

Small Hard Candy Gummy Candy Pillow Bag
Automatic Form Fill Seal VFFS Food Packaging Machine
| Item No. | WP-E4230 |
| Film Width | 160~420mm |
| Bag Size | L*W=(60~300)*(60~200)mm |
| Max. Packing Speed | 65bags/min |
| Film Pulling Driven System | servo motor(Panasonic) |
| Horizontal Heat Seal Driven System | cylinder(AirTAC) |
| Frame Of Machine | stainless steel 3304 |
| Power Requirement | 3.4KW/220V/50(60)Hz/single phase |
| Gas Pression | 0.6Mbra |
| Gas Comsumption | 0.6 m³/min |
| Machine Size | L*W*H=1465*1040*1470mm |
| Machine Weight | 400KG |
* Feature *
1) PLC control, man-machine interface, easy to operate and maintaince.
2) Equiped with servo motor and optical tracking devices to keep high accuracy.
3) The frame of machine is made by stainless steel #304, equipped with automatic stop protection function when open the door.
4) With standard date printer to print production date and expire date automatic.
* Application *
1) Applicable Bag Type: standard pillow bag, gusset standup bag, side sealed bag.
2) Applicable Film Material: a variety of laminated films, aluminum film, paper film, single layer PE film.
3) Applicable Packing Material: a variety of small granule products, such as peanut, cashew, sunflower seed, rice, sugar, salt, lentil and so on.
> Optional Device
* gusset device
* punching device
* exhaust/inflatable device
* PE film sealing
* anti-static electricity
* horizontal seal cooling
* nitrogen charging device
* vibrating device
* sealing device
* easy tear device
* bag support device
* evacuating device
* film rectify deviation adjust device
* horizontal saling servo motor
* Machine Photos *
|
Inclined type vffs packing machine front and back |
|
| Packing machine vertical seal and control button |
|
| Optional device on packing machine |
|
| Eye sensor tracking film running and metal feet on machine |
* Applicable Bag Type *
* Packing Bag We Can Make *
> Weighing / Dosing Machine For Choice
For different products packing, we would offer different packing solution with different weighing scale, we have multiheads weigher, linear filler, volumetric cup filler, auger filler, piston pump for choice.
* Multiheads Weigher: sutis for bigger granule product packing, such as snack, dry food, chocolate, candy, cookie, biscuit, cake, sugar, oatmeal, nuts, beans, frozen food, pet food and so on.
* Linear Filler: suits for small granule product packing and non-dusty product packing, such as rice, sugar, salt, seed, coffee powder, milk powder and so on.
* Volumetric Cup Filler: suits for small granule proudct packing, such as sunflower seed, peanut, bean, rice, ice cube, sugar and so on.
* Auger Filler: suits for fine powder, such as flour, milk powder, coffee powder, corn powder and so on.
* Piston Pump: suits for liquid, sauce packing, such as oil, water, ketchup, shampoo and so on.
