Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Myway
-
Weight:
-
5500 KG
-
Dimension(L*W*H):
-
4900*1650*2100 mm
-
Product name:
-
Automatic horizontal baling press machine
-
Model:
-
MW-HB2000
-
Pressure:
-
120-160TON
-
Force:
-
150ton
-
Bale size:
-
1500*800*1100mm
-
Machine size:
-
7500*1750*2200mm
-
Efficiency:
-
60-120 Cartons/min
-
Feed Opening Size:
-
1600*1100mm
-
Color:
-
Customer's Requirements
Quick Details
-
Warranty of core components:
-
2 Year
-
Voltage:
-
380V/440V
-
Power:
-
13KW, 13kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Myway
-
Weight:
-
5500 KG
-
Dimension(L*W*H):
-
4900*1650*2100 mm
-
Product name:
-
Automatic horizontal baling press machine
-
Model:
-
MW-HB2000
-
Pressure:
-
120-160TON
-
Force:
-
150ton
-
Bale size:
-
1500*800*1100mm
-
Machine size:
-
7500*1750*2200mm
-
Efficiency:
-
60-120 Cartons/min
-
Feed Opening Size:
-
1600*1100mm
-
Color:
-
Customer's Requirements
Products Description

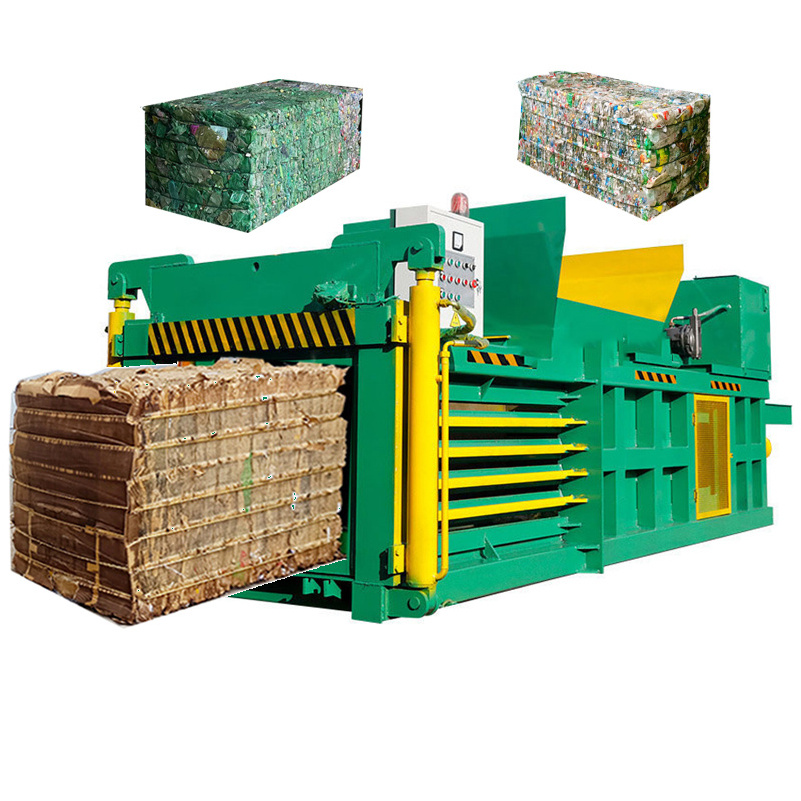

Horizontal baler machine
1>lt is closed type hydraulic baler with lifting open-end door, no need to shift balers timely after package, it can push bags continuously.
2> lt has high strength output door, hydraulic automatic open-end door, convenient operation and safety.
3>It configures with PLC program and electric button control, operated simply and equipped with automatic feeding detection, can compress bale automatically.
4>The baling length can be set at random, and provides bundling reminder device.
Product paramenters
|
Horizontal baling press machine
|
|
|
|
Pressure
|
150tons
|
|
|
Main Motor Power
|
37kw
|
|
|
Cooling System
|
air cooler/water cooler
|
|
|
Cycle Time (unload)
|
36s
|
|
|
Oil Reservoir
|
1460L
|
|
|
Number of Belting
|
4-5lines
|
|
|
Wire Size
|
Ø3.0-3.2
|
|
|
Feed Opening Size (L*W)
|
1600*1100mm
|
|
|
Chamber Size (L*W*H)
|
3000*1050*830mm
|
|
|
Bale Size (L*W*H)
|
1500*800*1100mm
|
|
|
Bale Density (OCC)
|
600-900kgs/m3
|
|
|
Throughput (approx./ depend on the raw material density and the skill of the operators)
|
1.5-3tons/h
|
|
|
Machine Weight
|
12tons
|
|
|
Machine Overall Dimension
|
7500*1750*2200mm
|
|
|
Feeding Device
|
conveyor
|
|
|
Feeding Width
|
1300mm
|
|
|
Speed
|
12m/min
|
|
|
Power
|
7.5kw
|
|
