Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DEYE
-
Model Number:
-
SUN-10K
-
Input Voltage:
-
120-140VAC/180VAC
-
Output Voltage:
-
220/230/240VAC
-
Output Current:
-
15.2A
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
537*390*130 (mm)
-
Certificate:
-
ce ROHS UL, ISO 9001/CE/IEC/TUV
-
Warranty:
-
5, 3 Years
-
Weight:
-
33kg
-

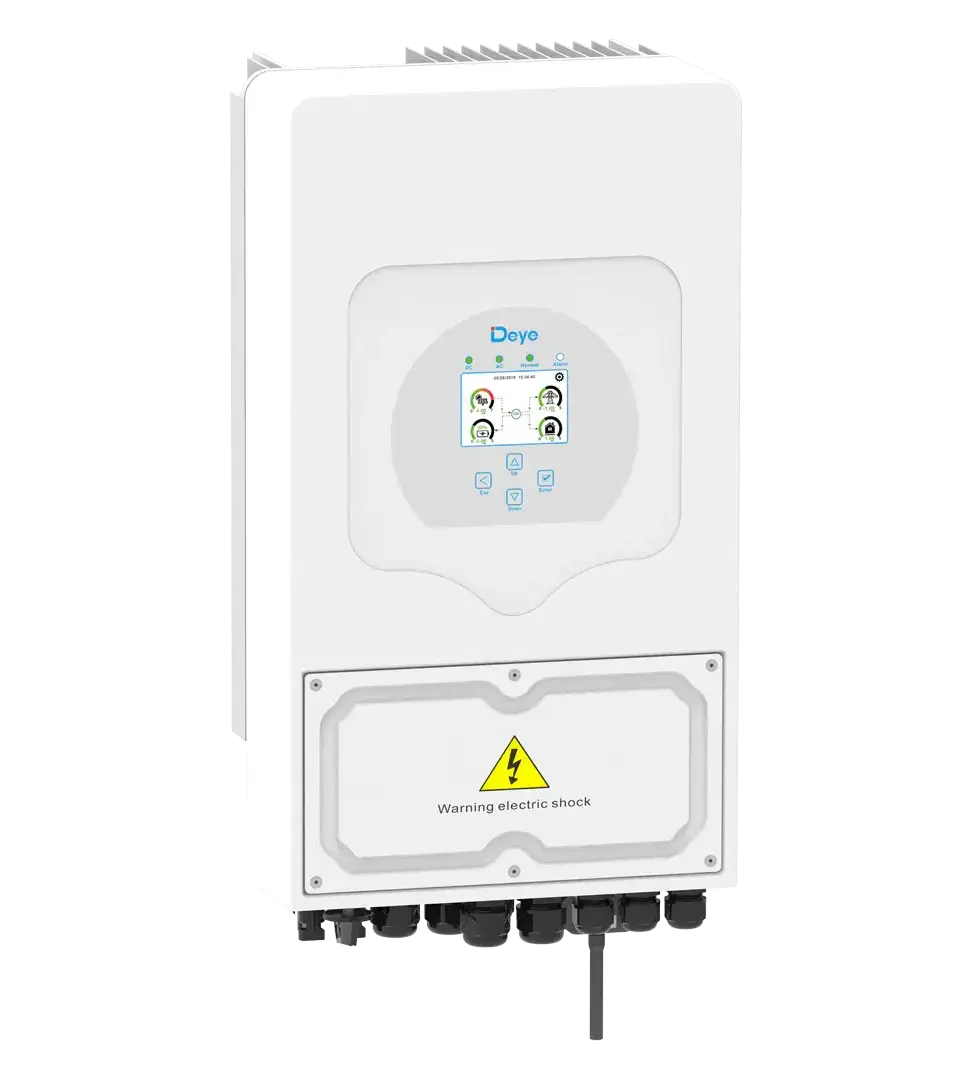

Product name:
-
Hybrid Inverter
-
Inverter type:
-
Three Phase Hybrid Inverter
-
Communication:
-
RS485/WiFi (optional)/GPRS (optional)/DRM(Australia)
-
Feature:
-
Hybrid Solar Inverter Charger
-
Capacity:
-
3kw/5KW/7.6KW Hybrid Inverter
-
Protection:
-
Overload
-
Noise (dB):
-
50dB
-
MPPT voltage range:
-
200~650V
Quick Details
-
Output Type:
-
Three Phase
-
Type:
-
DC/DC Converters, DC/AC Inverters
-
Inverter Efficiency:
-
97.60%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DEYE
-
Model Number:
-
SUN-10K
-
Input Voltage:
-
120-140VAC/180VAC
-
Output Voltage:
-
220/230/240VAC
-
Output Current:
-
15.2A
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
537*390*130 (mm)
-
Certificate:
-
ce ROHS UL, ISO 9001/CE/IEC/TUV
-
Warranty:
-
5, 3 Years
-
Weight:
-
33kg
-
Product name:
-
Hybrid Inverter
-
Inverter type:
-
Three Phase Hybrid Inverter
-
Communication:
-
RS485/WiFi (optional)/GPRS (optional)/DRM(Australia)
-
Feature:
-
Hybrid Solar Inverter Charger
-
Capacity:
-
3kw/5KW/7.6KW Hybrid Inverter
-
Protection:
-
Overload
-
Noise (dB):
-
50dB
-
MPPT voltage range:
-
200~650V
|
Model
|
SUN-5K-SG01LP1
-US/EU |
SUN-7.6K-SG01LP1-EU
|
SUN-8K-SG01LP1
-US/EU |
|||
|
Battery Input Data
|
|
|
|
|||
|
Battery Type
|
Lead-acid or Lithium-ion
|
|
|
|||
|
Banery Voltage Range (V)
|
40-60V
|
|
|
|||
|
Max. Charging Current (A)
|
120A
|
190A
|
190A
|
|||
|
Max. Discharging Current (A)
|
120A
|
190A
|
190A
|
|||
|
Charging Curve
|
3 Stages / Equalization
|
|
|
|||
|
External Temperature Sensor
|
Optional
|
|
|
|||
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS
|
|
|
|||
|
PV String Input Data
|
|
|
|
|||
|
Max. DC Input Power (W)
|
5500W
|
9880W
|
8800W
|
|||
|
PV Input Voltage (V)
|
500V
|
370V (100V 〜500V)
|
500V
|
|||
|
MPPT Range (V)
|
125V-425V
|
|
|
|||
|
Start-up Voltage (V)
|
150V
|
|
|
|||
|
PV Input Current (A)
|
10A+10A
|
22A+22A
|
18A+9A
|
|||
|
No.of MPPT Trackers
|
2
|
|
|
|||
|
No.of Strings Per MPPT Tracker
|
1\1
|
2+2
|
2\1
|
|||
|
AC Output Data
|
|
|
|
|||
|
Rated AC Output and UPS Power (W)
|
5000W
|
7600W
|
8000W
|
|||
|
Peak Power (off grid)
|
2 times of rated power, 10 S
|
|
|
|||
|
Max. AC Current (A)
|
20.8A
|
36.3A
|
33A
|
|||
|
Output Frequency and Voltage
|
50/60Hz; 120Vac&240Vac(split phase), 230Vac(single phase)
|
50 / 60Hz; 23(Vac (single phase)
|
50/60Hz; 120Vac&240Vac(split phase), 230Vac(single phase)
|
|||
|
Grid Type
|
Single Phase
|
|
|
|||
|
Current Harmonic Distortion
|
THD<3% (Linear load<1.5%)
|
|
|
|||
|
Efficiency
|
|
|
|
|||
|
Max. Efficiency
|
97.60%
|
|
|
|||
|
Euro Efficiency
|
97.00%
|
|
|
|||
|
MPPT Efficiency
|
99.90%
|
|
|
|||
|
Protection
|
|
|
|
|||
|
PV Input Lightning Protection
|
Integrated
|
|
|
|||
|
Anti-islanding Protection
|
Integrated
|
|
|
|||
|
PV String Input Reverse Polarity Protection
|
Integrated
|
|
|
|||
|
Insulation Resistor Detection
|
Integrated
|
|
|
|||
|
Residual Current Monitoring Unit
|
Integrated
|
|
|
|||
|
Output Over Current Protection
|
Integrated
|
|
|
|||
|
Output Shorted Protection
|
Integrated
|
|
|
|||
|
Output Over Voltage Protection
|
Integrated
|
|
|
|||
|
Surge protection
|
DC Type II/AC Type II
|
|
|
|||
|
Certifications and Standards
|
|
|
|
|||
|
Grid Regulation
|
VDE 0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116JEC61727
|
|
|
|||
|
Safety Regulation
|
IEC62109-1, IEC62109-2
|
|
|
|||
|
EMC
|
EN61000-6-1, EN61000-6-3, FCC 15 class B
|
|
|
|||
|
General Data
|
|
|
|
|||
|
Operating Temperature Range (°C)
|
-25-~60°C, >45°C Derating
|
|
|
|||
|
Cooling
|
Smart cooling
|
|
|
|||
|
Noise (dB)
|
<30 dB
|
|
|
|||
|
Communication with BMS
|
RS485; CAN
|
|
|
|||
|
Weight (kg)
|
32
|
|
|
|||
|
Size (mm)
|
680*420*233mm
|
|
|
|||
|
Protection Degree
|
IP65
|
|
|
|||
|
Installation Style
|
Wall-mounted
|
|
|
|||
|
Warranty
|
5 years
|
|
|
|||
|
Installation Style
|
Wall-mounted
|
|
|
|||
