Quick Details
-
Brand Name:
-
Lanphan
-
Voltage:
-
110V/220V
-
Power:
-
1100W, 1100W-2300W
-
Dimension(L*W*H):
-
510mm x 700mm 850mm
-
Weight (KG):
-
80
-
Marketing Type:
-
New Product 2022
-
Product Name:
-

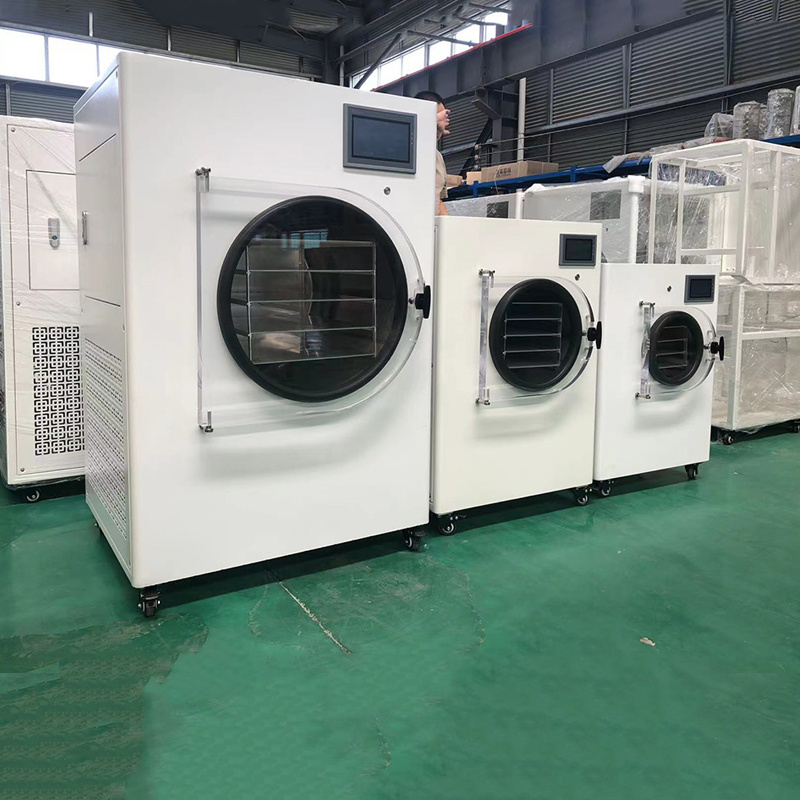

Home Freeze Dryer / Lyophilizer
-
Freeze-dried Area:
-
0.1-0.6
-
Cold Trap Coil Temperature:
-
<-40℃ (no-load)
-
Ultimate Vacuum:
-
10pa (no-load)
-
Power Supply:
-
220V 50HZ
-
Handling Capacity:
-
4-8KG / batch
-
Layer Spacing:
-
45mm
-
Material Tray Size:
-
305mm x 510mm four layers
Quick Details
-
Type:
-
Freeze Drying Equipment
-
Capacity (kg/batch):
-
4.5
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lanphan
-
Voltage:
-
110V/220V
-
Power:
-
1100W, 1100W-2300W
-
Dimension(L*W*H):
-
510mm x 700mm 850mm
-
Weight (KG):
-
80
-
Marketing Type:
-
New Product 2022
-
Product Name:
-
Home Freeze Dryer / Lyophilizer
-
Freeze-dried Area:
-
0.1-0.6
-
Cold Trap Coil Temperature:
-
<-40℃ (no-load)
-
Ultimate Vacuum:
-
10pa (no-load)
-
Power Supply:
-
220V 50HZ
-
Handling Capacity:
-
4-8KG / batch
-
Layer Spacing:
-
45mm
-
Material Tray Size:
-
305mm x 510mm four layers
|
No. |
Comparisons |
LANPHAN 0.4 |
Other Brand 0.4 |
|
1 |
Dimensions(mm) |
500x640x890 With universal casters, easy to move |
455x540x730 No casters |
|
2 |
Cold trap size(mm) |
Φ305x510 |
Φ315x435 |
|
3 |
Tray(mm) |
4 Trays |
4 Trays |
|
4 |
Door thickness (mm) |
30 |
20 |
|
5 |
Frame |
Iron frame + Plastic spraying (Firm, not easy to scratch) |
Aluminum gusset+Baking Varnish (easy to scratch) |
|
6 |
Compressor |
French Danfoss brand |
Chinese domestic brand |
|
7 |
Cold trap temperature (°C) |
≤-40℃ |
≤-25℃ |
|
8 |
Ultimate vacuum (pa) |
No load: <10Pa |
No load: <3000Pa
|
|
9 |
Drying temperature (°C) |
-40℃ ~+60℃ |
-25℃ ~+60℃ |
|
10 |
Temperature probe |
4 independent probes |
1 probe |
Product Parameters
| Product Model | HFD-1 | HFD-4 | HFD-6 | HFD-8 |
| Freeze-dried Area | 0.1m2 | 0.4m2 | 0.6m2 | 1m2 |
| Cold Trap Temperature | ≤-40℃ | |||
| Ultimate Vacuum | No load:<10Pa | |||
| Power Supply | 220V/110V 50HZ/60HZ | |||
| Power | 1100w | 1550w | 2000w | 2500w |
| Handling Capacity | 1-2kg/batch | 4-6kg/batch | 6-8kg/batch | 10-16kg/batch |
| 2.5-5lbs/batch | 9-13lbs/batch | 13-18lbs/batch | 22-35lbs/batch | |
| Weight | 127kg | 142kg | 203KG | 203KG |
| 279lbs | 313lbs | 447lbs | 447lbs | |
| Tray Quantity | 3pcs | 4pcs | 4pcs | 8pcs |
| Tray Size | 275*145*20mm | 425*200*20mm | 435*315*30mm | 435*265*25mm |
| 11*6*0.8inch | 17*8*0.8inch | 17*12.5*1.2inch | 17*10.5*1inch | |
| Package size (W*L*H) | 750*630*1120mm | 830*630*1250mm | 830*800*1500mm | 830*800*1500mm |
| 30*25*44inch | 33*25*49inch | 33*32*59inch | 33*32*59inch | |
