Quick Details
-
Model Number:
-
ML10D
-
Material:
-
Zinc Alloy Metal Casing
-
Door thickness:
-
35-54 mm
-
User Capacity:
-
90Users
-
Card Module:
-
ID Card (Optional)
-
Dimensions:
-
Front: 69(W)*155(L)*35(D)mm ; Back: 69(W)*155(L)*25(D)mm
-
Backset:
-
62 mm
-
Battery Life:
-
Over 6000 Times (Approx. 1year)
-
Warranty:
-
2Years Warranty
Quick Details
-
Door Type:
-
Wood door, Stainless Steel door
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Granding
-
Model Number:
-
ML10D
-
Material:
-
Zinc Alloy Metal Casing
-
Door thickness:
-
35-54 mm
-
User Capacity:
-
90Users
-
Card Module:
-
ID Card (Optional)
-
Dimensions:
-
Front: 69(W)*155(L)*35(D)mm ; Back: 69(W)*155(L)*25(D)mm
-
Backset:
-
62 mm
-
Battery Life:
-
Over 6000 Times (Approx. 1year)
-
Warranty:
-
2Years Warranty

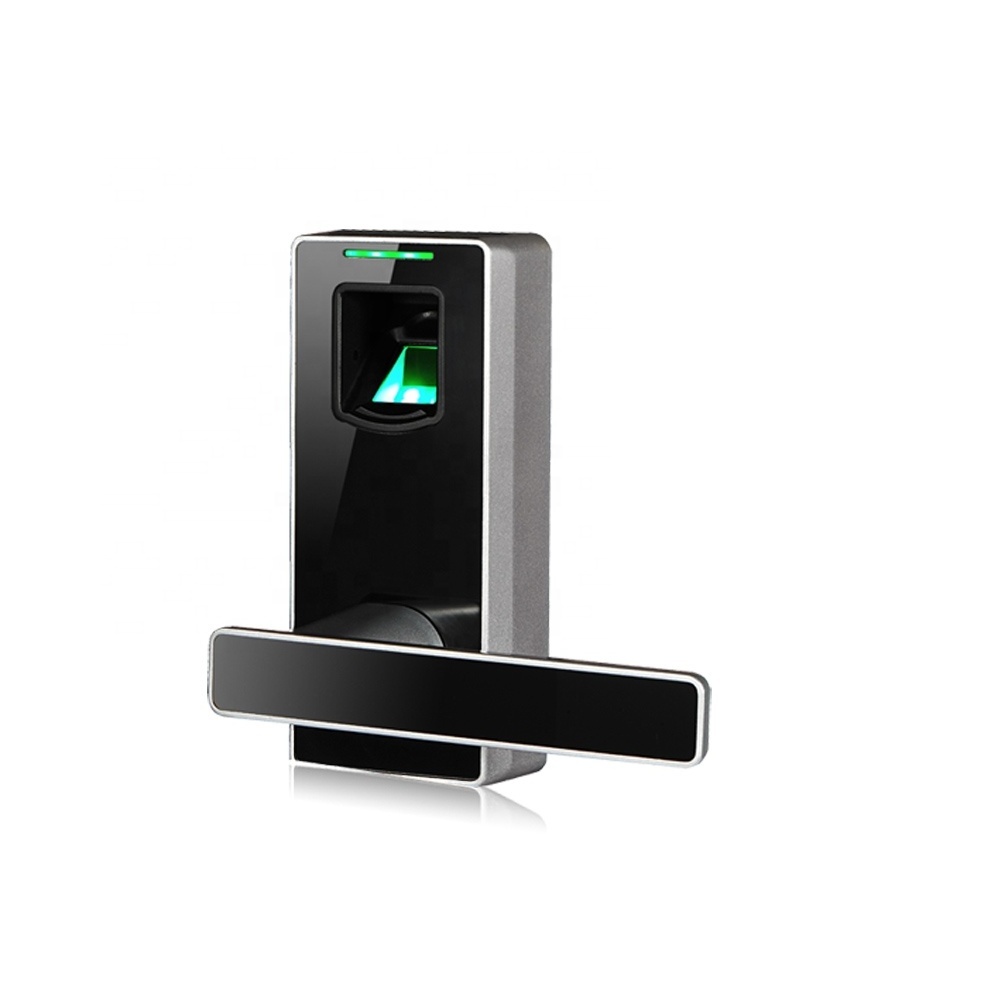

(ML10D) Smart Lock With Fingerprint and German Standard Mortise
Model Name: ML10D
ML10/D is a smart lock with embedded fingerprint recognition technology.
It is DIY design, which can replace knob lock easily and quickly.
You even can do it by yourself.
- With the new generation fingerprint recognition algorithm .
- Rugged , sleek and compact design.
- Idle handle design to prevent from forcible entry.
- Handle , latch and strike is reversible design.
- Low battery warning.
- Registration data are stored even if there is power loss.
- Emergency key override (concealed).
- LED indicator and inbuilt buzzer.
- External terminals to draw back-up power from a 9V battery.
- Normal open mode.
|
Model Name |
ML10D |
|
Card |
ID Card (optional) |
|
Material |
Zinc Alloy (ML10 series) |
|
Backset |
60mm or 70mm (Adjustable)- American Single Latch; 62mm-German Standard Mortise; |
|
User Capacity |
Admin-10; Normal User-60; Temporary User-20; |
|
Power Supply |
4*AA Alkaline Battery |
|
Operating Temperature |
0-55degrees centi-grade |
|
Battery Life |
Over 6000 Times (Approx 1 year) |
|
Backup Unlocking Way |
Mechanical Key & 9V Battery |
|
Door Thickness |
30-53mm (Standard) |
|
Dimensions(W*L*D) |
Front: 69*155*35MM Back: 69*155*25MM |
|
Kindly noted: ML10R/PL10R only support MF card function |
|
