Quick Details
-
Place of Origin:
-
Shandong, China
-
solar cell material:
-
Polycrystalline
-
Pmax:
-
260w
-
Vmp:
-
36.64V
-
Imp:
-
8.2A
-
Voc:
-
38.02V
-
Isc:
-
8.80A
-
Warranty:
-
Pm is not less than 90% in 10 years and 80% in 25 years
-
Dimension of module:
-
1640x992x35mm
-
size of solar cell:
-
156x156mm with 36pcs
-
Stanard test conditions:
-
AM1.5 , 1000w/m2 , 25 degree
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Grade A Polycrystalline
-
Controller Type:
-
Waterproof
-
Place of Origin:
-
Shandong, China
-
solar cell material:
-
Polycrystalline
-
Pmax:
-
260w
-
Vmp:
-
36.64V
-
Imp:
-
8.2A
-
Voc:
-
38.02V
-
Isc:
-
8.80A
-
Warranty:
-
Pm is not less than 90% in 10 years and 80% in 25 years
-
Dimension of module:
-
1640x992x35mm
-
size of solar cell:
-
156x156mm with 36pcs
-
Stanard test conditions:
-
AM1.5 , 1000w/m2 , 25 degree
250w 260w 270w 500w 1000w solar panel ,solar power system cheap price
specification
|
ITEM NO |
JYSP-250P |
|
Type of cell |
Polycrystalline |
|
Maximum power (Wp) |
250w |
|
Maximum power voltage (V) |
36.64 |
|
Maximum power current (A) |
8.20 |
|
Open circuit voltage (V) |
44.97 |
|
Short circuit current (A) |
8.95 |
|
Number of cells (Pcs) |
72 |
|
Cell Efficiency (%) |
17.3% |
|
Size of module (mm) |
1490X670X35mm |
Maximum system voltage (V) |
1000v |
|
Tolerance Wattage (e.g. +/-3%) |
±5% |
|
Weight per piece (kg) |
20.2kg |
|
Cable |
150mm ,PV cable with plug and socket |
|
Backing (brand type) |
TPT |
|
Surface maximum capacity |
5400Pa |
|
Frame (Material, Corners, etc.) |
Aluminium |
|
Warranty |
25years life and 20 years 80% of power |
|
Standard Test Conditions |
25degree , 1.5AM 1000w/m 2 |
|
Glass on the surface |
Tempered glass |
|
FF (%) |
≥72% |
|
CERTIFICATES |
CE,TUV,ISO,SONCAP |
|
Packing |
Two pcs in one carton |

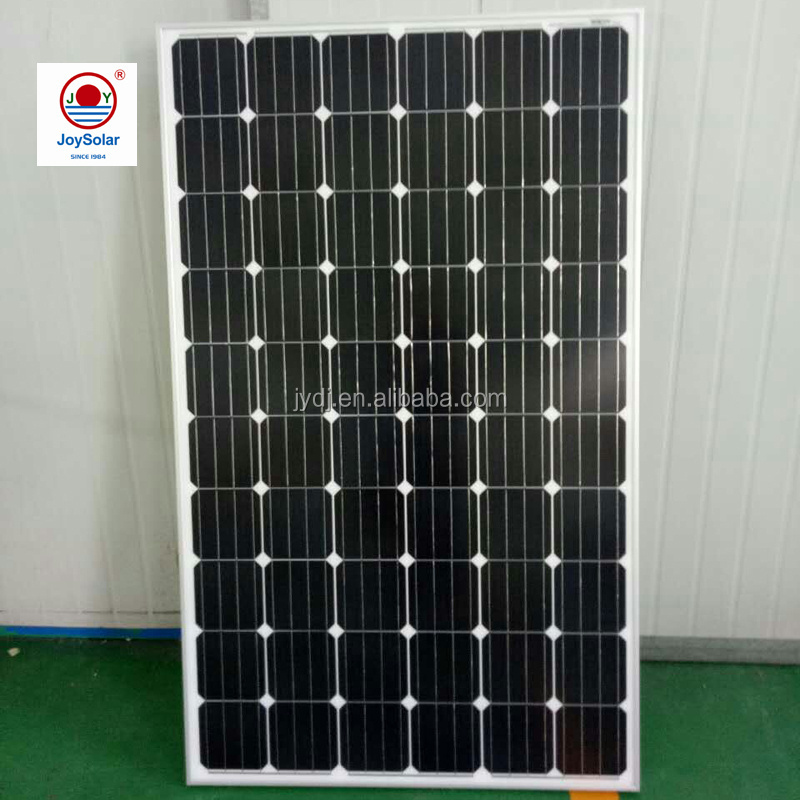

J oysolar solar panel pictures &Package and loading :
P hotovoltaic solar panel
1. Solar module from 0.5 w to 320w , mono solar panel and poly solar panel are all available.
2. L ower quotation ,we can get the best price of our raw material by giving larger orders
3. Strict quality control system , from our raw material to our final goods, are all under quality tracking system
Enter into company home page
Enter into certificate
JOYSOLAR is professional Solar Panel manufacturer of China , any inquiry welcome to contact us freely .
I am sure we will offer our lowest price to you once get your news .
