Quick Details
-
Voltage:
-
220V/50HZ
-
Weight:
-
50 KG, 50kg
-
Temperature range:
-
-40 ℃~99 ℃
-
Heating power:
-
2000w
-
Power supply:
-
Singele phase 220V 50Hz
-
Safety protection:
-
Delay, over-current, overheat
-
Display:
-
LCD display, key operation
-
Temperature control accuracy:
-
±1℃
-
Sensor:
-
PT100
-
Compressor:
-
1 P
-
Refrigerant:
-
R404A
Quick Details
-
Condition:
-
Brandnew
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
HEB
-
Voltage:
-
220V/50HZ
-
Weight:
-
50 KG, 50kg
-
Temperature range:
-
-40 ℃~99 ℃
-
Heating power:
-
2000w
-
Power supply:
-
Singele phase 220V 50Hz
-
Safety protection:
-
Delay, over-current, overheat
-
Display:
-
LCD display, key operation
-
Temperature control accuracy:
-
±1℃
-
Sensor:
-
PT100
-
Compressor:
-
1 P
-
Refrigerant:
-
R404A

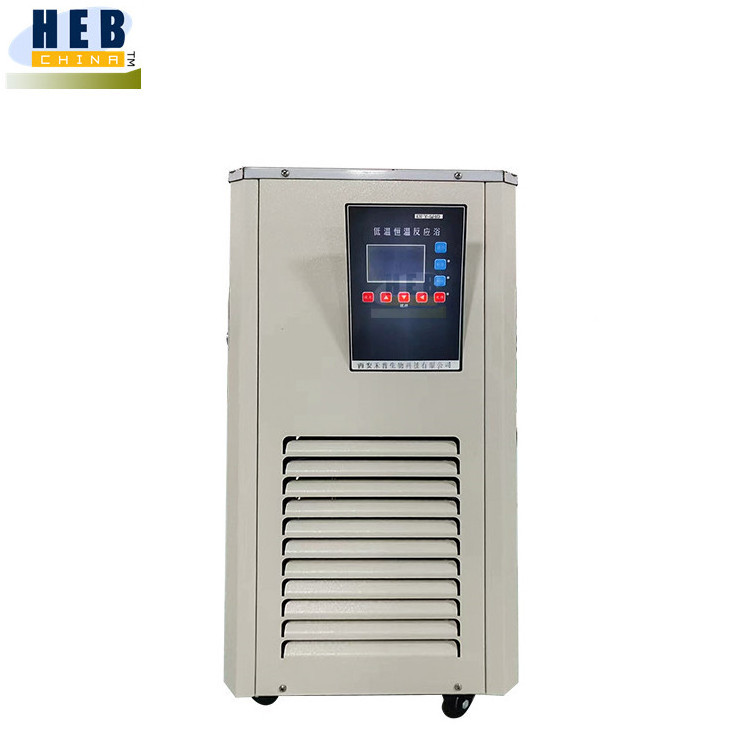

mini reaction bath chiller& heating circulator thermostatic coolant circulator
Technical parameters :
|
Name |
Low &constant temperature reaction bath |
|
|
Model |
D FY - 5 / 40 |
|
|
Usage temperature range |
-40 ℃ ~ 99 ℃ |
|
|
Environment temperature |
5 ~3 5 ℃ |
|
|
Environment humidity |
≤ 7 0% ventilation |
|
|
Power supply |
Singele phase 220V 50H z/110V 60Hz |
|
|
Safety protection |
Delay, over - current, overheat |
|
|
Display |
LCD display, key operation |
|
|
Temperature control accuracy |
±0.1 ℃ |
|
|
Sensor |
PT100 |
|
|
Heating power |
2000W |
|
|
Total power |
2 887W |
|
|
Compressor |
Specification |
1P |
|
|
Quantity |
1 |
|
|
Power |
735W |
|
|
Cooling capacity |
2324W |
|
Circulation pump |
Power |
100W |
|
|
Lift |
4-6M |
|
|
Flow |
20-40 L/min |
|
|
Pressure |
≤0.4MPa |
|
Air-cooling condenser |
Power |
52W |
|
|
Heating exchange area |
4.2m2 |
|
|
Air volume |
760m³/h |
|
Refrigerant |
R404A |
|
|
Condensation coil |
Φ 8 copper tube plated by nickel |
|
|
Equipment material |
Cold plate spray, anti-corrosion |
|
|
Water tank dimension&volume |
Φ 220 × 180H(mm) |
6.8L |
|
Available size in water tank |
Φ 185mm |
|
|
Cover opening |
Φ 200mm |
|
|
Outer circulation interface |
Pagoda joint with Φ 12mm outer diameter ( f acing the left side of the equipment) |
|
|
Overall dimension (W*D*H) |
423 × 485 × ( 760+pole 400) mm |
|
|
Net weight |
49.5KG |
|
|
Packing dimension |
570 × 460 × 790mm carton package 0.21 m³ |
|
|
Packing weight |
55KG |
|
Warranty Service
From the date of acceptance, we can provide 12 months quality guarantee, all the maintenance costs and accessories parts costs are free within the date of quality guarantee (spare and accessories parts costs from instrument faults by human factors will be charged proper costs).
After the date of quality guarantee, we will in charge of maintain instrument, and charge proper costs according to actual maintenance costs.
