Quick Details
-
Material:
-
Full ceramic seal, ABS, Full ceramic seal, ABS
-
Weight:
-
1.17KG
-
Size:
-
174*139*163mm
-
Power:
-
0.03-0.1
-
Weight (KG):
-
1.17 kg
-
Product name:
-

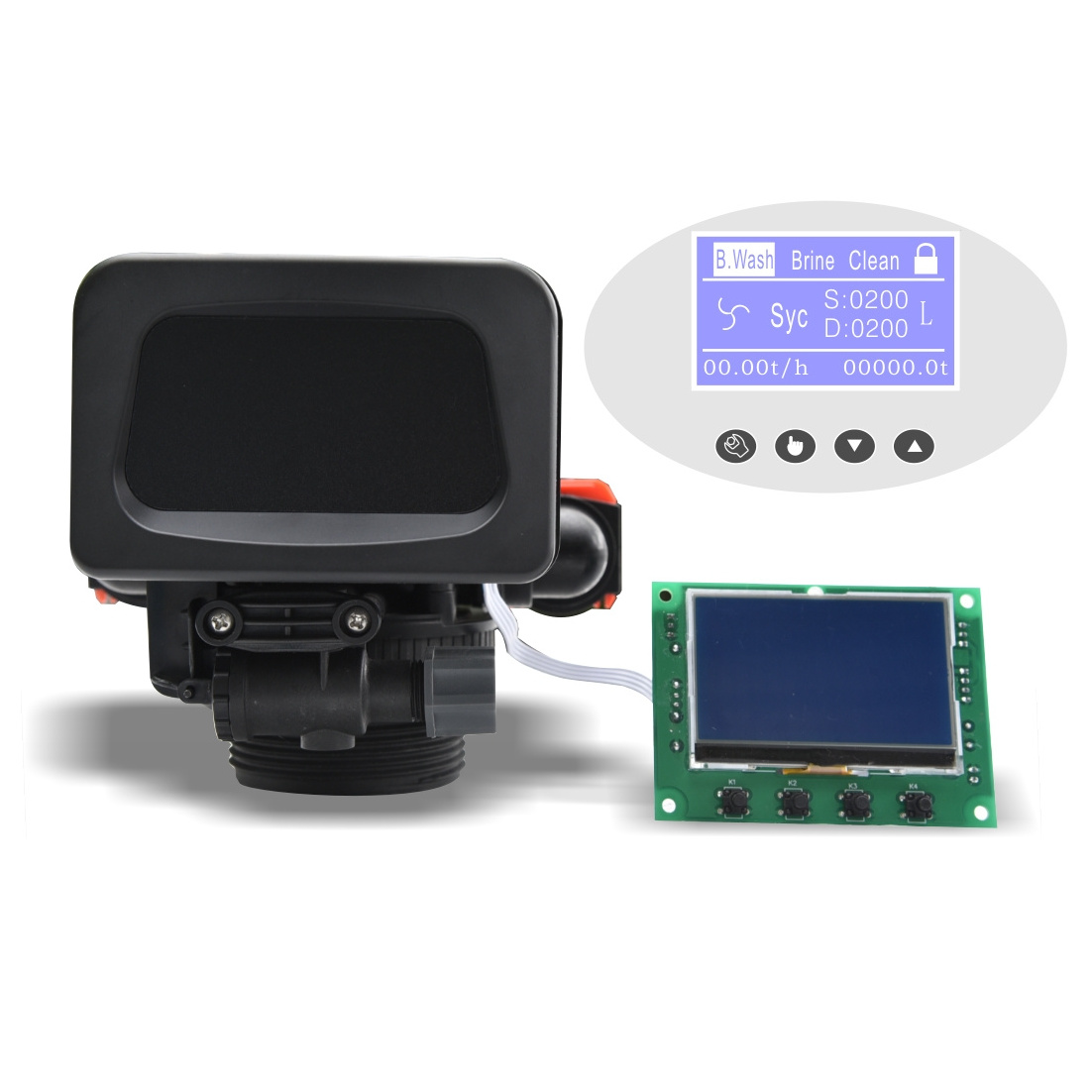

Softener valve for central water purifier
-
Installation method:
-
Top loading
-
Center tube:
-
1.05" OD
-
Water Inlet & Outlet:
-
3/4" external teeth
-
Adaptation tank:
-
6"-16"
-
Inter Water Temperature:
-
5-50℃
-
Base:
-
2.5"-8NPSM (tank mouth)
-
Working pressure:
-
0.15-0.6MPa
-
Sewage outlet:
-
3/4" outer teeth
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support
Quick Details
-
Marketing Type:
-
New Product 2021
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
JY
-
Material:
-
Full ceramic seal, ABS, Full ceramic seal, ABS
-
Weight:
-
1.17KG
-
Size:
-
174*139*163mm
-
Power:
-
0.03-0.1
-
Weight (KG):
-
1.17 kg
-
Product name:
-
Softener valve for central water purifier
-
Installation method:
-
Top loading
-
Center tube:
-
1.05" OD
-
Water Inlet & Outlet:
-
3/4" external teeth
-
Adaptation tank:
-
6"-16"
-
Inter Water Temperature:
-
5-50℃
-
Base:
-
2.5"-8NPSM (tank mouth)
-
Working pressure:
-
0.15-0.6MPa
-
Sewage outlet:
-
3/4" outer teeth
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support
Description
Features:
1. Full flow control, especially the salt absorption flow control in the regeneration process, s aving salt and water, saving energy and reducing consumption .
2. Keyboard lock function to prevent misoperation.
3. Power failure parameter protection , power failure memory and water failure memory .
4. The end face ceramic seal with high flatness and corrosion resistance is adopted, which has good sealing effect and long service life.
5. The number of repeated flushing can be set .
6. Optimized design of valve body and flow channel , with greater water production.
7. Multiple interlocking and multi-mode output control can be used to control the feed water pump, the water inlet solenoid valve, and realize the parallel interlocking of double valves, one for use and one for backup .
8. The 485 interface can be extended to realize remote control .
1. Full flow control, especially the salt absorption flow control in the regeneration process, s aving salt and water, saving energy and reducing consumption .
2. Keyboard lock function to prevent misoperation.
3. Power failure parameter protection , power failure memory and water failure memory .
4. The end face ceramic seal with high flatness and corrosion resistance is adopted, which has good sealing effect and long service life.
5. The number of repeated flushing can be set .
6. Optimized design of valve body and flow channel , with greater water production.
7. Multiple interlocking and multi-mode output control can be used to control the feed water pump, the water inlet solenoid valve, and realize the parallel interlocking of double valves, one for use and one for backup .
8. The 485 interface can be extended to realize remote control .
|
Product name
|
Softener valve for central water purifier
|
|
Model
|
1P2GR (time and flow control optional)
|
|
Installation method
|
Top loading
|
|
Sewage outlet
|
3/4" outer teeth
|
|
Water inlet and outlet
|
3/4" external teeth
|
|
Base
|
2.5"-8NPSM (tank mouth)
|
|
Center tube
|
1.05" OD
|
|
Water production
|
4m³/h
|
|
Adaptation tank
|
6"-16"
|
|
Working pressure
|
0.15-0.6MPa
|
|
Inlet water temperature
|
5-50℃
|
|
Influent turbidity
|
≤20NTU
|
|
Applications
|
Supporting household central water softener
|
About Us
Xi'an Jieyuan Water Treatment Technology Co., Ltd. Is a company 18 years of experience in the design and development of water treatment control valves,focus on research and development,production and sales of filter valve and softening valve,is a global water treatment control valve professional manufacturer.
Team
Exhibition
Certifications
Customer
Packing
FAQ
Q:
Why use water softener?
A:
Many of the water you use contains trace amounts of calcium, iron, and magnesium. The water in these metals is called "hard water". Water softeners can help you eliminate these traces.
Q:
How long can the resin be used in the water softener?
A:
Usually the resin can be used for 5 years, and it can be adjusted according to your water hardness.
Q:
How long can activated carbon be used for central water purification?
A:
Usually you should replace it every 1 year, which can be adjusted according to your water quality.
Q:
Why choose electronic control valve?
A:
1. ABS material, working pressure is higher than others
2. Ceramic moving disc, small rotating torque
3. The sealing surface has good wear resistance and long service life.
4. The valve can be operated directly under pressure.
Q:
Are you a manufacturer?
A:
Yes, we are a manufacturer that provides R&D, production, sales and service
Q:
How long will it take for my product?
A:
Mass production orders require 2 working days (based on different quantities)
Q:
What is your guarantee?
A:
Our warranty period is 1 year. But under normal circumstances
