Quick Details
-
VGA Input resolution:
-
1920x1080@60Hz
-
Encoding standard:
-
H.264
-
Audio Encoding:
-
AAC, MP3
-
Audio rate:
-
64Kb/s-384Kb/s
-
Network protocol:
-
Supports RTSP, HTTP, RTMP, UDP, multicast and unicast
-
Nature:
-
IPTV Encoder
-
Video input:
-
HD MI /CVBS/VGA/YPbPr INPUT
-
Resolution:
-
Up to 1080P Full HD
-
Bitrate:
-
VBR/CBR
-
Configuration Interface:
-
Internet operation
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Dibviewolo
-
Model Number:
-
OTV-VGA1
-
VGA Input resolution:
-
1920x1080@60Hz
-
Encoding standard:
-
H.264
-
Audio Encoding:
-
AAC, MP3
-
Audio rate:
-
64Kb/s-384Kb/s
-
Network protocol:
-
Supports RTSP, HTTP, RTMP, UDP, multicast and unicast
-
Nature:
-
IPTV Encoder
-
Video input:
-
HD MI /CVBS/VGA/YPbPr INPUT
-
Resolution:
-
Up to 1080P Full HD
-
Bitrate:
-
VBR/CBR
-
Configuration Interface:
-
Internet operation
Products Description
Overview

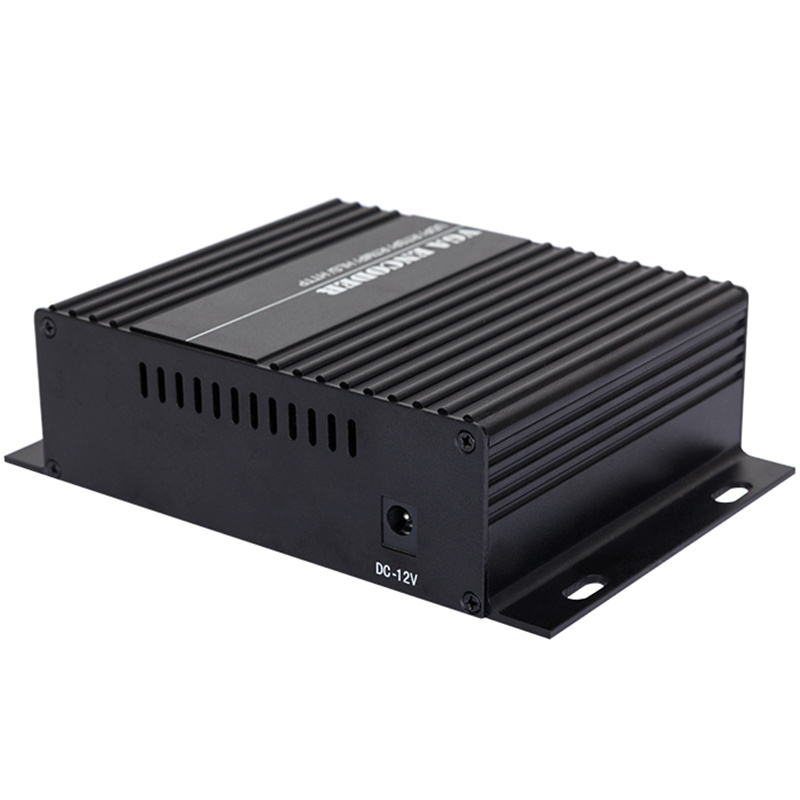

OTV-VGA1 VGA HD Encoder is professional hd audio and video coding products, this product can support 1 Channel VGA audio and video collection function, VGA Loop out 1 channel, dual coding output stream h.264 format, audio MP3, AAC. Can be adjusted according to the need for freedom. The integration of the equipment are high, high cost performance. Support HTTP/RTSP/RTP/RTMP/UDP protocol and transmission. Support external audio input.
The network interface uses a 1000M full duplex modeSupport hd resolution 1920 x1080/1680 x1050/1280 x720/1600 x / 960 x540/720 * 576/ 704 * 576 conventional resolution (customizable)
Main Features
*
Support VGA input, VGA Loop out
*
Supports WINDOWS and LINUX operating system
*
Support RTSP/RTP/RTMP/HTTP/UDP unicast and multicast protocol(RTMP support adding users and passwords changing) Support DHCP protocol, ON VIF protocol, support Blue-ray
*
Support multiple protocol stream functions such as main, deputy, the main, choice of deputy flow respectively
*
Coding standard BASELINE PROFILE/MAIN PROFILE/HIGH PROFILE, audio MP3, AAC, sampling rate: 32000, 44100, etc., encoded audio bitrate: 48 k, 64 k, 96 k, 128 k, 160 k, 192 k, 256 k.
*
Rate Control CBR / VBR 16KBIT / S~12MBIT / S
*
Video packaging: A mode: FFMPEG, B mode: VLC
*
Support streaming resolution output settings custom
*
Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)
*
Support streaming add watermark (OSD), XY axis, the font can be set;
*
Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)
*
Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenanceSupport in both Chinese and English OSD, support OSD rolling, image overlay, support to add company logo can screen any place such as letters and symbols; Adjustable coordinates for: 1920 x1080; The font size adjustment range of available: tell the 8 ~ 72 range.
*
Supports DHCP automatically obtain IP, ghost and version upgrades and remote maintenance.
*
The image contrast, brightness, hue, saturation, noise detection, sharpening and filtering
*
Support audio built-in and external two ways, left and right channels, support audio gain, can adjust the volume independently
*
No video signal coding support
*
Set up effective immediately, do not need to restart
*
Support the set-top box decoding
*
Low-power power supply design
|
Specifications
|
|
|
|
|
||||
|
INPUT
|
|
|
|
|
||||
|
1 VGA input, 3.5 1 channel audio input
|
|
|
|
|
||||
|
OUTPUT
|
|
|
|
|
||||
|
1 channel IP signal output,1channel VGA loop out
|
|
|
|
|
||||
|
VIDEO SPECIFICATIONS
|
|
|
|
|
||||
|
Video Input resolution: 1920x1080/1680x1050/1280x720/1600x1200/960x540/720*576/704*576 And other conventional resolution
Coding standard: H.264
Coding level
H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE
Encoded size: 640*360~1920*1080 (Can customize)
Video bit rate: Rate control: CBR/VBR 16KBIT/S~12MBIT/S
Video frame rate: 30/60 OSD Character, images
|
|
|
|
|
||||
|
Audio Input selection
|
|
|
|
|
||||
|
1 channel embedded vga input, 1 channel 3.5MM independent audio input. Support audio gain
Audio coding: AAC/MP3
Audio bit rate:64Kb/s~384Kb/s
Sampling rate: 32000, 44100, 48000etc
|
|
|
|
|
||||
|
IP output
|
|
|
|
|
||||
|
1 RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ON VIF protocol
|
|
|
|
|
||||
|
System
|
|
|
|
|
||||
|
Network protocol: Supports HTTP, RTSP, RTMP, UDP, multicast, unicast Configuration management: Support IE configuration, remote upgrade
|
|
|
|
|
||||
|
The common use
|
|
|
|
|
||||
|
Power supply: 12V~2A
power consumption: 5W
Size: 100mmx118mmx40mm(length*width*height)
Operating temperature: -20℃+ 60℃
Working humidity:<90%, Non-condensing
Weight: 0.3KG
|
|
|
|
|
||||
Key Diagram or Application
