Quick Details
-
Brand Name:
-
VANSE
-
Engine Type:
-
Honda GX690
-
Characteristic:
-
Air-Cooled 4 Stroke, 2 Cylinder
-
Power:
-
18.4KW/25HP
-
Fuel:
-
Gasoline ( regular and up)
-
Fuel Tank Volume:
-
19L
-
Lubrication Oil:
-
1.9L
-
Screed width:
-
3M
-
Paving mode:
-
Auger Paving
-
Paving Thickness:
-
50-200mm
-
Vibrating System:
-
Hydraulic Vibration
Quick Details
-
Weight (KG):
-
740
-
Marketing Type:
-
Hot Product
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
VANSE
-
Engine Type:
-
Honda GX690
-
Characteristic:
-
Air-Cooled 4 Stroke, 2 Cylinder
-
Power:
-
18.4KW/25HP
-
Fuel:
-
Gasoline ( regular and up)
-
Fuel Tank Volume:
-
19L
-
Lubrication Oil:
-
1.9L
-
Screed width:
-
3M
-
Paving mode:
-
Auger Paving
-
Paving Thickness:
-
50-200mm
-
Vibrating System:
-
Hydraulic Vibration

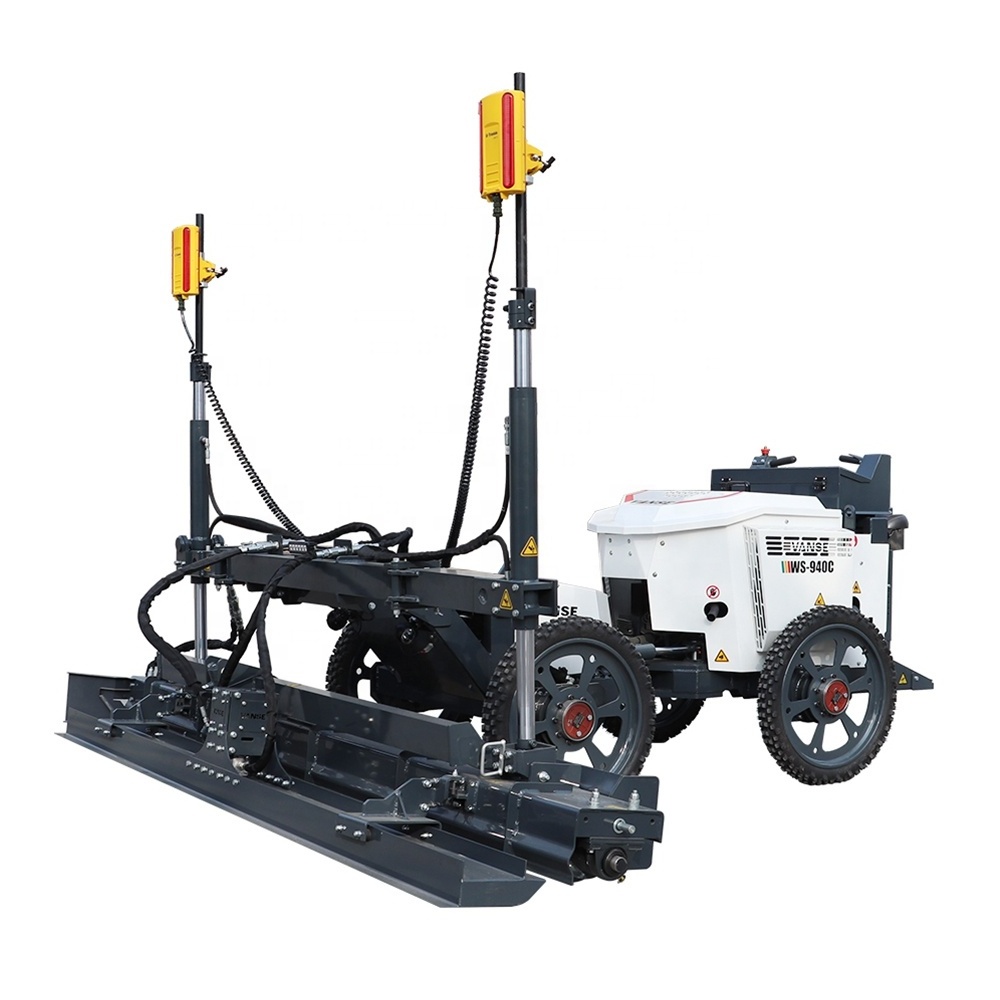

VANSE WS-940C High Quality Ride On Self Leveling Laser Level Laser Screed Hydraulic Vibration Concrete Laser Screed Machine
PRODUCTS DESCRIPTION
VANSE WS-940C High Quality Ride On Self Leveling Laser Level Laser Screed Hydraulic Vibration Concrete Laser Screed Machine
SPECIFICATION
|
Engine type
|
HONDA GX690
|
|
Characteristic
|
Air-cooled 4 stroke, 2 cylinder
|
|
Power
|
18.4KW/25HP
|
|
Fuel
|
Gasoline (regular and up)
|
|
Fuel tank volume
|
19L
|
|
Lubrication oil
|
1.9L
|
|
Screed width
|
3.0M
|
|
Paving mode
|
Auger paving
|
|
Paving thickness
|
5-200MM
|
|
Vibrating system
|
Hydraulic vibration
|
|
Excitation force
|
200-900N
|
|
Vibration frequency
|
50-60HZ
|
|
Laser system
|
TRIMBLE OR LEICA BRAND
|
|
Wheel track
|
1250MM
|
|
Wheel base
|
1238MM
|
|
Walking speed
|
4.5KM/H
|
|
Mini turning radius
|
2300MM
|
|
Steering angle
|
L 40° R 36°
|
VANSE WS-940C High Quality Ride On Self Leveling Laser Level Laser Screed Hydraulic Vibration Concrete Laser Screed Machine
PARTNER & PROJECT CASES
Related Products
COMPANY INTRODUCTION
AFTER SALES SERVICE
YZ28-4S 18.4KW Leveling Machine Concrete Laser Screed Machine / Concrete Level Screed With HONDA GX690
DELIVERY&FAQ
1. What is the delivery time ?
Generally we need 3-5 days to produce the machine after prepayment ,if you are urgent , 2 days will be ok , then send to port .
2. How about the warranty ?
We supply 12 months warranty .
3. How should we do if the machine broken ?
You can take a video to us and our technicians will analyze the cause of the problem based on the video.
4. How should we do if parts are broken ?
We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea of by air .Or deliver with the next order
5. Can the machine use the trademark of our own company?
Yes ,sir ,of course .
6. Can we customize the product according to our requirements?
Yes ,sir ,no problem .
7. How do you pack the machines ?
Generally ,we pack them in export wooden cases ,we make sure it is safe for transportation .Or we can also use Iron Frame to pack them . If machine is big, we use iron frame much more .
