It takes 30 minutes for blast freezer to reach 70 degrees below zero
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Dimension(L*W*H):
-
up to you
-
Weight:
-
1200 KG
-
After Warranty Service:
-
Video technical support
-
Panel:
-
Stainless steel
-
Panel material:
-
Pu (polyurethane)
-
Frozen products:
-
Fish Meat Seafood Fruit Vegetable
-
Refrigerant:
-
R404A/R507/R717
-
Temp controller:
-
Dixell
-
Usage:
-
Meat, Food, Sea Food, Fish, etc
-
Standard air cooler:
-
From one fan to four fans
-
Brand:
-
Cryo Systems
Quick Details
-
Voltage:
-
230V/1p/50Hz, 400V/3p/50~60Hz
-
Power:
-
0.4~450,000W
-
Cooling Capacity:
-
300kg~1200kg, Customized
-
Place of Origin:
-
Guangdong, China
-
Dimension(L*W*H):
-
up to you
-
Weight:
-
1200 KG
-
After Warranty Service:
-
Video technical support
-
Panel:
-
Stainless steel
-
Panel material:
-
Pu (polyurethane)
-
Frozen products:
-
Fish Meat Seafood Fruit Vegetable
-
Refrigerant:
-
R404A/R507/R717
-
Temp controller:
-
Dixell
-
Usage:
-
Meat, Food, Sea Food, Fish, etc
-
Standard air cooler:
-
From one fan to four fans
-
Brand:
-
Cryo Systems
Solution 1(capacity: 90-250kg/h)
Blast Freezer
Cabinet
Ideal for cooling down prepared meals or blast freezing smaller batches of unpacked products.
|
External material
|
201 stainless steel
|
Internal material
|
304 stainless steel
|
|
The temp
|
-45 ~ 0℃ -80 ~ 0℃
|
Cooling system
|
Air cooling
|
|
Compressor
|
Tecumseh
|
Refrigerant
|
R404a
|
|
Designed for
|
1-2 trolleys or trays
|
Capacity
|
90-1000L
|
Solution 2(capacity: 500-4000kg/h)
IQF
IQF is an abbreviation for “individually quick frozen”, a process which freezes food rapidly so there is minimal damage to the cellular structure of the food.
IQF includes spiral Freezer and tunnel Freezer

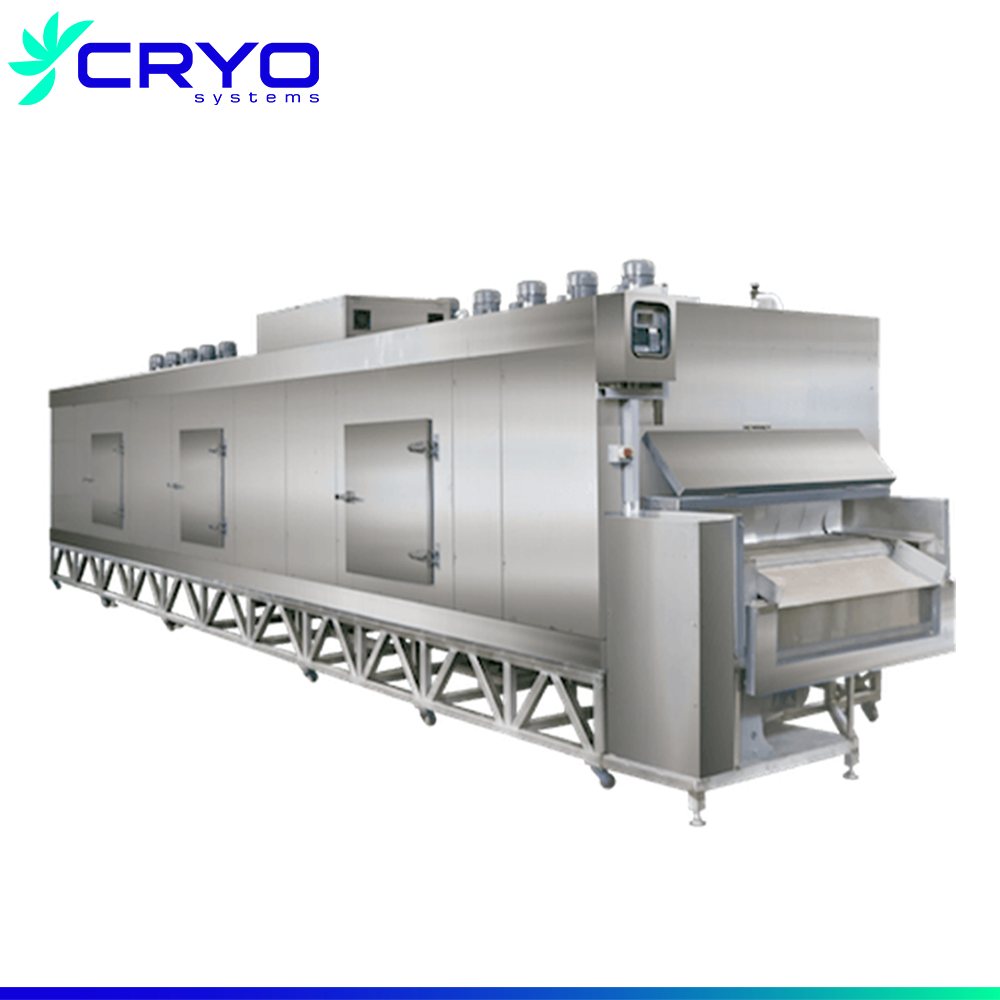

Tunnel Freezer
Tunnel freezers are a class of processing freezer systems where the product usually travels horizontally through a long enclosed space (freezing tunnel) and cold air is circulated upward through the product.
Spiral Freezer
Spiral freezers, designed to preserve product quality while minimizing the need for extensive refrigeration space within the facility, utilize multi-tiered, self-stacking belts. They are quite straightforward to install within a plant's floor area.
Solution 3(capacity up to 10 tons/day)
Blast Freezer Room
35~-45C temperature, for meat, seafood quick freezer, storage. high efficiency condensing unit with Bitzer compressor.
Successful Case
About Us
FAQ
1. Why did we choose such big compressor horsepower?
Fresh food has a lot of heat and needs the big compressor horsepower to cool down within 4-6 hours.
2. Can the blast freezer cooling time be shorter?
4-6 hours is fast enough and very economical. 2-3 hours will need an even bigger horsepower compressor and more expensive.
3. Why are other suppliers’ prices lower than ours?
We can ensure the fresh food cool down at -20C within 4-6 hours that need to use the big horsepower compressor. What’s more, the compressor we use original new German brand which has good quality and keeps more than 20 years lifetime.
