The overall box body mortise and tenon welding, steel plate thickness of more than 16MM, groove, each weld is welded more than 3 times
The column is made of 45# steel, the surface is plated with hard chrome, the four-column guide sleeve is made of wear-resistant
material, and the thin oil centralized lubrication system is used to reduce friction resistance.
- Product Details
- {{item.text}}
Quick Details
-
Return Force (kN):
-
240 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JIANHA BAOFA
-
Year:
-
2024
-
Voltage:
-
220V/380V/415V/600V, Customized
-
Dimension(L*W*H):
-
2120mm*2780mm*3690mm
-
Weight (T):
-
8.6 T
-
Motor Power (kw):
-
11 kw
-
Power Source:
-
Hydraulic Pump(electric)
-
After-sales Service Provided:
-
12 Months
-
Keyword:
-
Hydryalic Press
Quick Details
-

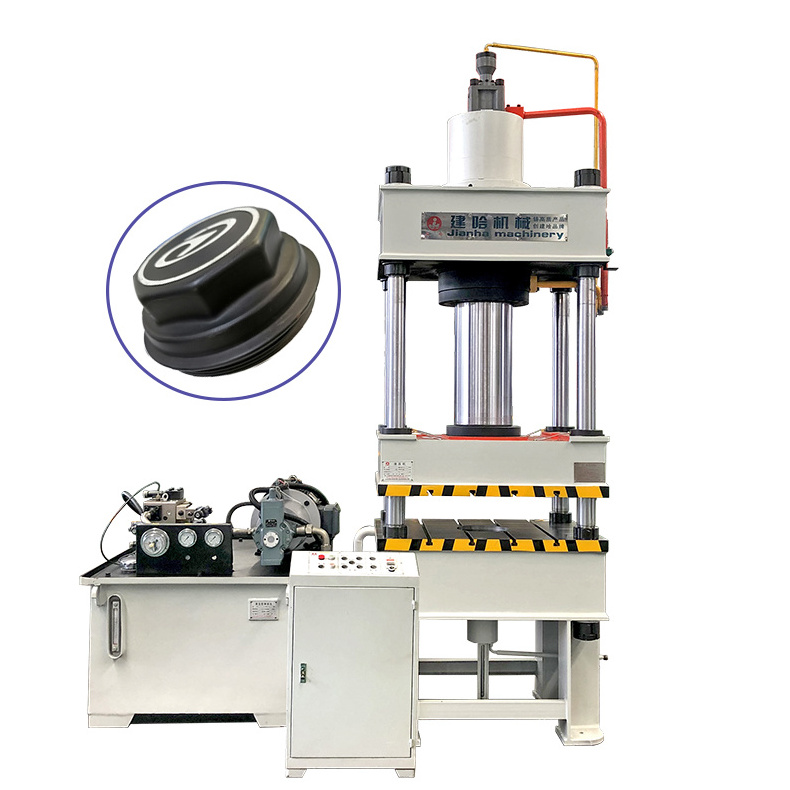

Machine Type:
-
Four-column Hydraulic Press
-
Slide Stroke (mm):
-
500
-
Ejector Force (kN):
-
300
-
Return Force (kN):
-
240 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JIANHA BAOFA
-
Year:
-
2024
-
Voltage:
-
220V/380V/415V/600V, Customized
-
Dimension(L*W*H):
-
2120mm*2780mm*3690mm
-
Weight (T):
-
8.6 T
-
Motor Power (kw):
-
11 kw
-
Power Source:
-
Hydraulic Pump(electric)
-
After-sales Service Provided:
-
12 Months
-
Keyword:
-
Hydryalic Press
Product Description
Specification
|
item
|
value
|
|
Slide Stroke (mm)
|
500
|
|
Machine Type
|
Four-column Hydraulic Press
|
|
Ejector Force (kN)
|
300
|
|
Return Force (kN)
|
240kN
|
|
System
|
Servo
|
|
Condition
|
New
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Brand Name
|
JIANHA BAOFA
|
|
Year
|
2023
|
|
Voltage
|
220V/380V/415V/600V, Customized
|
|
Dimension(L*W*H)
|
2120mm*2780mm*3690mm
|
|
Weight (T)
|
8.6T
|
|
Model Number
|
Y32-200TXC
|
|
Motor Power (kw)
|
11kw
|
|
Key Selling Points
|
Multifunctional
|
|
Warranty
|
1 Year
|
|
Applicable Industries
|
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Construction works
|
|
Showroom Location
|
Turkey, Mexico, South Korea, Colombia, Australia, None
|
|
Marketing Type
|
Ordinary Product
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Motor, Pump, PLC, Pressure vessel
|
|
Power Source
|
Hydraulic Pump(electric)
|
|
Machine Type
|
Four Column Hydraulic Press Machine
|
|
After-sales Service Provided
|
12 Months
|
|
Keyword
|
Hydryalic Press
|
Why Choose Us
Our Advantages
Hydraulic Press System:
The hydraulic transmission device of the machine is arranged beside the hydraulic press machine, and its role is to control the movement of the slider.
The hydraulic transmission device of the machine is arranged beside the hydraulic press machine, and its role is to control the movement of the slider.
The hydraulic control system adopts the integral two-way plug-in valve integrated block.
It has fast response speed, large oil-passing capacity, small flow resistance, reliable operation and easy maintenance.
The power device of the cartridge valve uses a large flow CY high pressure variable axial piston pump.
The large-diameter pipes of the hydraulic system are connected by flange joints, which are shockproof and leak-proof.
The large-diameter pipes of the hydraulic system are connected by flange joints, which are shockproof and leak-proof.
The hydraulic oil tank is equipped with an oil filter device and a liquid level display device. The filling tank is installed on the
upper end of the upper beam.
upper end of the upper beam.
After all the pressed vertical plate of the refrigerator shell is beveled, the multi-channel welding is carried out.
The riveting hole is opened for the middle cylinder connecting plate, The mortise and tenon filling welding is made.
The weld is more full, the welding is more firm, and the deformation is reduced.
Piston rod:
Medium-frequency hardening of 45 steel, deepening the material 2-3 mm, making the surface hardness of the piston rod to 55 ,effective solution to seal ring injury，not easy to scratch it.
Four column:
For the workpiece after medium-frequency quenching, we use the lathe to soft throw it, and then use an cylindricall grinding machine to repair the deformation, to ensure the accuracy
